Intelix FLX-3232 32 Input Output Flexible Card Based Matrix Switcher

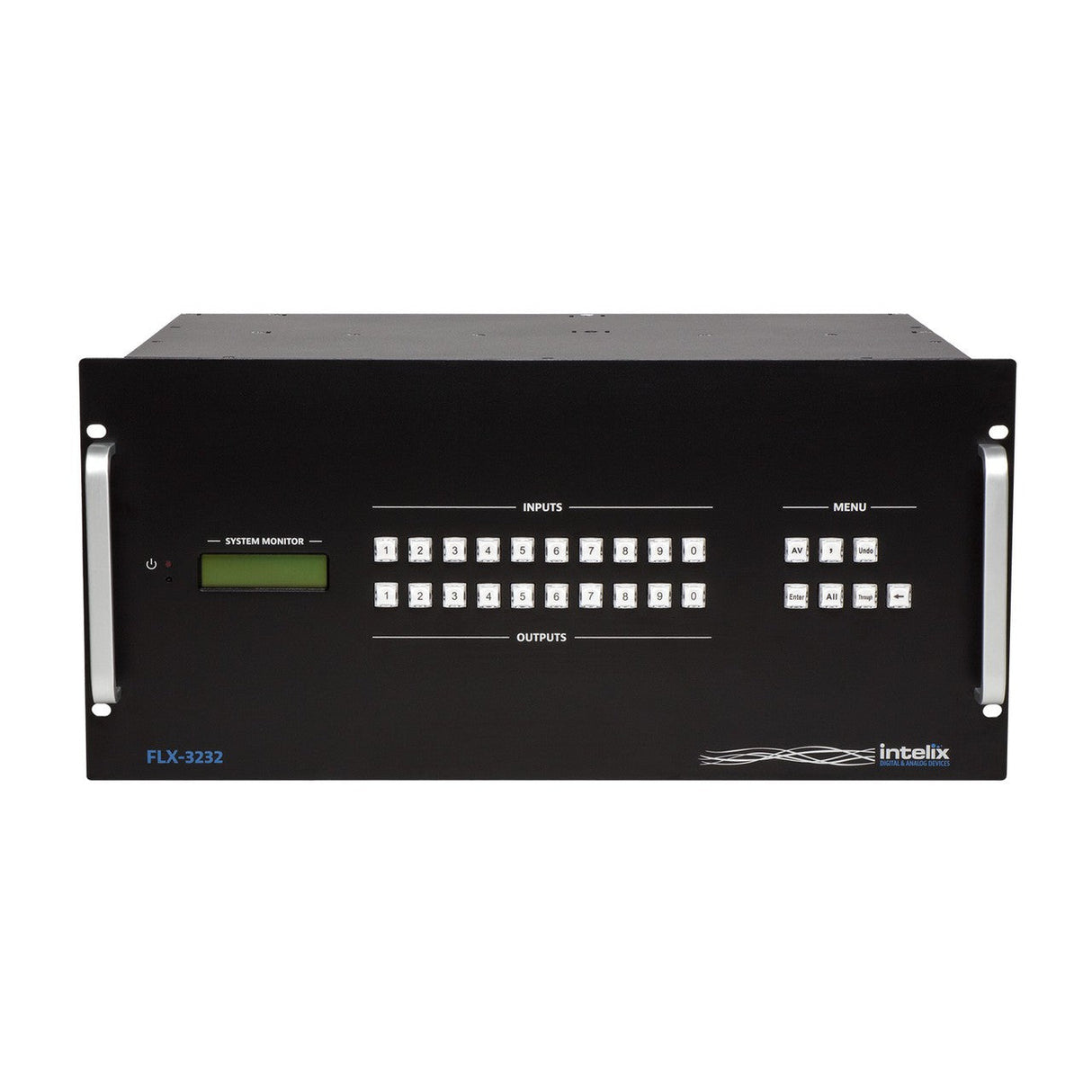

The Intelix FLX-3232 is a modular video matrix switcher that supports up to 32 inputs and 32 outputs. There are eight input slots and eight output slots; each modular input or output card supports up to four device connections. In addition to front panel control, the FLX-3232 can be controlled via IR, RS232, or TCP/IP connections.
Key Features
- Plug and play card-based design allows user to select between HDBaseT,
- HDMI, and DVI-D inputs and outputs
- VGA input cards are available
- Any input type to any output type (VGA - input only)
- 200ms internal switching time - viewable switching times will vary according to destination devices
- RS232, IR, and TCP/IP control
- HDMI and HDCP compliant
Technical Specifications
I/O Connections
Supported Input Cards:
FLX-BI4, FLX-DI4, FLX-HI4, FLX-RI4, FLX-HI4A
Supported Output Cards:
FLX-BO4, FLX-DO4, FLX-HO4, FLX-BO4A, FLX-BO4A-XL, FLX-HO4A
Input and Output Card Securing Mechanism:
Thumbscrew
Control, Rear Panel:
RS232 via DE-9, TCP/IP via 8P8C Connector
Control, Front Panel:
Push Button, IR
Chassis and Environmental
Material:
Black Painted Aluminum
Dimensions:
483mm x 356mm x 222mm (19 in. x 14 in. x 8.75 in.)
Rack Spacing:
5 RU
Shipping Weight:
9.98 kg (22 lbs.)
Operating Temperature:
0Ā° to +40Ā° C (+32Ā° to +104Ā° F)
Operating Humidity:
20% to 90%, Non-condensing
Storage Temperature:
-10Ā° to +60Ā° C (+14Ā° to +140Ā° F)
Storage Humidity:
20% to 90%, Non-condensing
Power, ESD, and Regulatory
Power Supply:
100-240VAC 50/60 Hz
Power Consumption:
280 watts Fully Populated
ESD Protection:
15kV
Regulatory:
CE, RoHS
