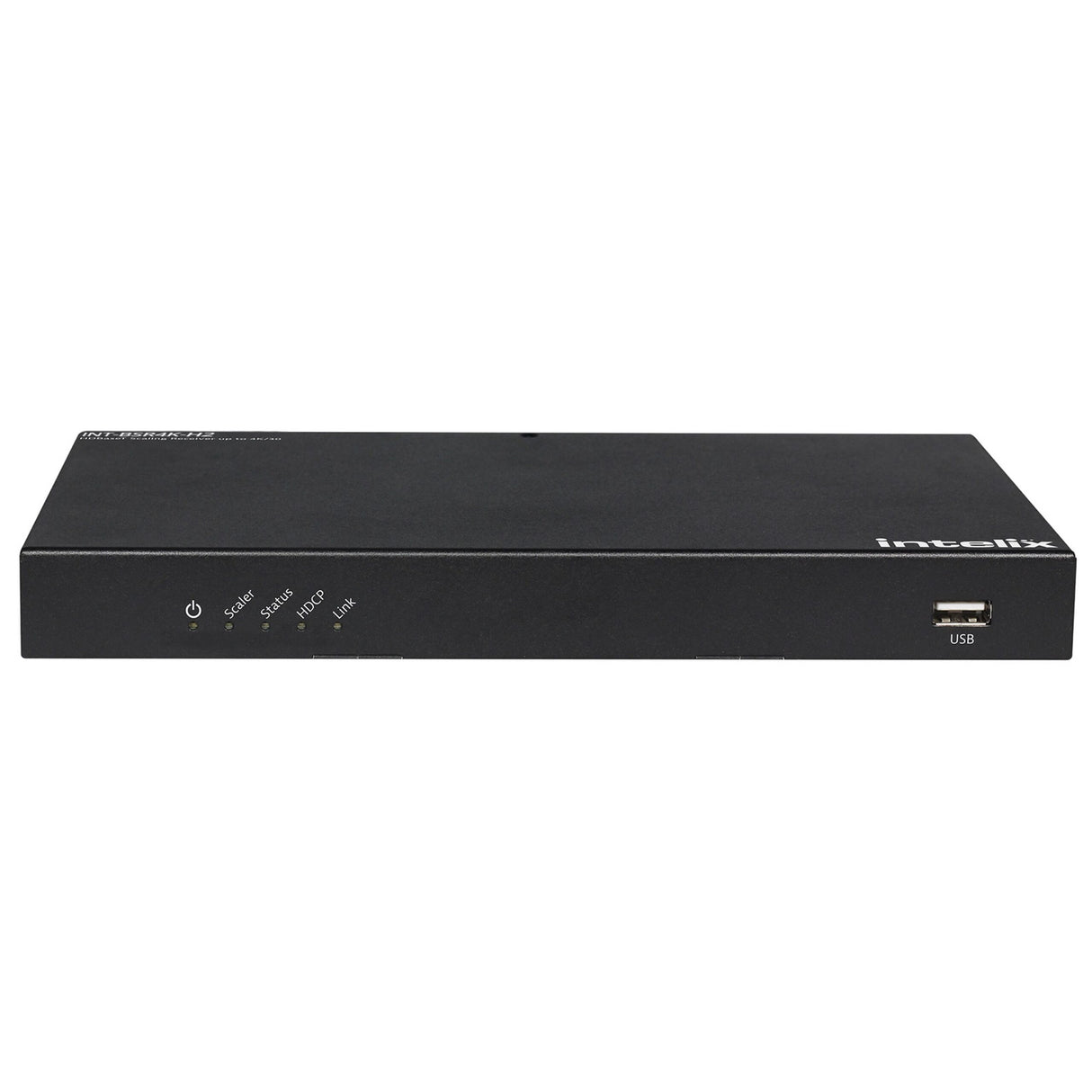

Intelix INT-BSR4K-H2 HDBaseT 4K Scaling Receiver with Control and Ethernet

Intelix INT-BSR4K-H2 HDBaseT 4K Scaling Receiver with Control and Ethernet

The INT-BSR4K-H2 is an HDMI 2.0 and HDCP 2.2 compliant HDBaseT scaling 4K receiver that distributes uncompressed 4K@60Hz UHD video, digital coax / analog stereo audio, Ethernet, RS232 and bi-directional IR up to 100m/330ft over a single category cable. The INT-BSR4K-H2 can be controlled by telnet or RS232 but also can also store and pass display commands via RS232 as well as generate CEC display ON and OFF commands. The two-port network switch on the INT-BSR4K-H2 allows a second device to share the 100BaseT Ethernet pass-through connection without adding additional hardware to the installation. The INT-BSR4K-H2 requires local power, however it can provide power to a compatible Intelix HDBaseT transmitter.

The INT-BSR4K-H2 is compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.

Key Features

• Includes HDBaseT Scaling Receiver, mounting tabs, power supply
• Built?in scaling up to 4k@60Hz / 4:2:0 / 8 bit deep color
• Up/Down Scaling ability
• 100 meter max distance
• PoH powers the remote transmitter
• PCM SPDIF and analog audio de?embedding
• Compatible with all Intelix HDBaseT products
• Affordable way to scale HDBaseT signals to match your display needs
• Passes 2 way IR, RS232, Ethernet for control
• Can store and generate display RS232 / CEC commands with active signal
• Applications
  Up & Downscaling ability removes the lowest common resolution concern
  Commercial, residential, education, and any other application for video or presentations
