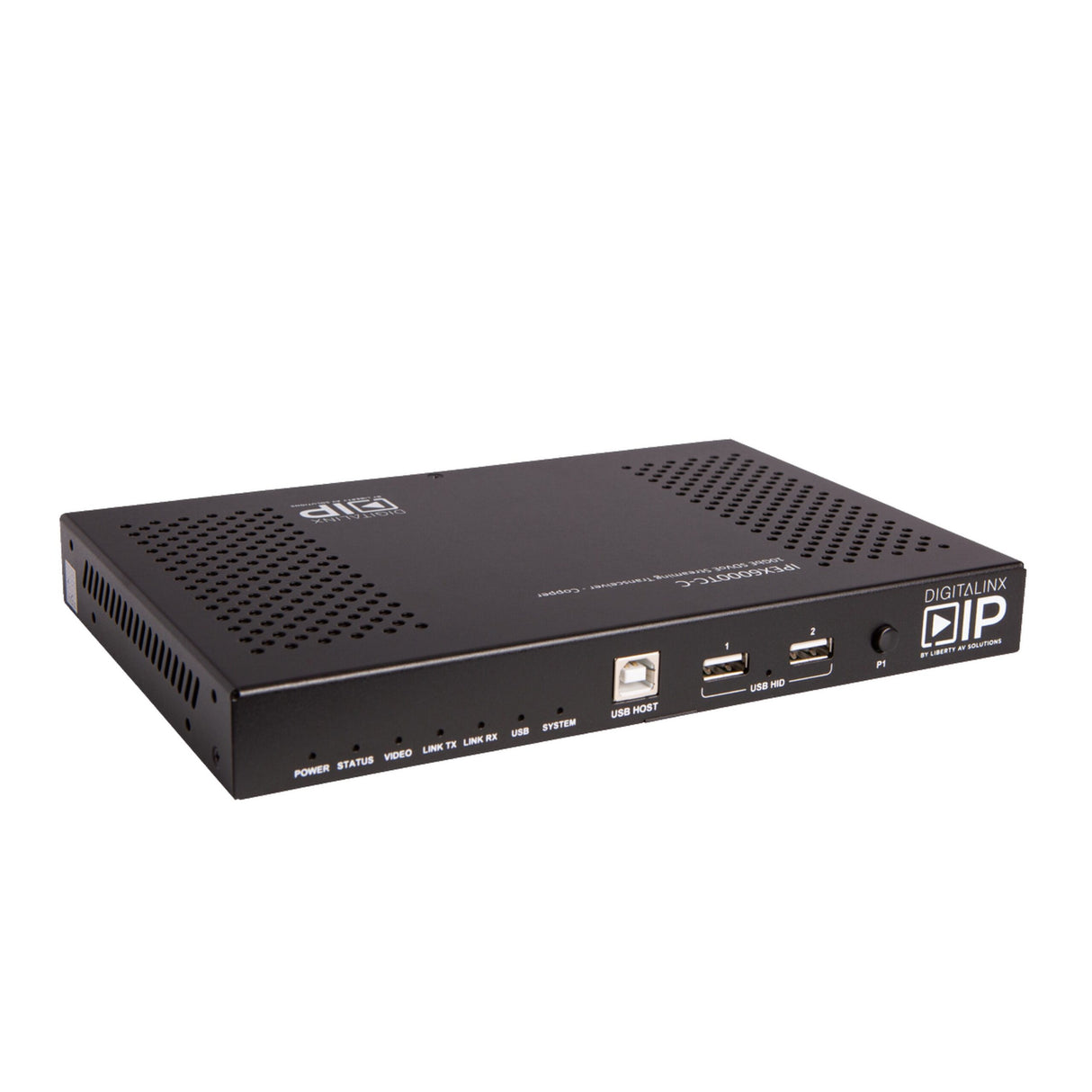

Intelix IPEX6000TC-C 6000 Series SDVoE Transceiver, Copper

Intelix IPEX6000TC-C 6000 Series SDVoE Transceiver, Copper

The IPEX6000TC-C is an AVoIP PoE powered A/V transceiver integrated with both encoder and decoder configuration which can transmit and receive video signals simultaneously. The DigitalinxIP IPEX6000TC-C supports IP?based switching and extension of true 4K/60Hz (4:4:4) video with zero frame latency up to 100 meters when using CAT6A F/UTP cabling. The transceiver supports independent routing of all AV, USB HID, IR, Ethernet and RS232 signals. All transceivers on an AV network can simultaneously transmit and receive full 4K 60 4:4:4 signals. The IPEX6000TC-C is HDMI 2.0 and HDCP 2.2 compliant and supports all video resolutions that fit into the HDMI 2.0 timing envelope of 594 MHz, such as 4K@60Hz 4:4:4 24bpp and 4K@60Hz 4:2:0 30bpp HDR, including DolbyVision, HDR10 and HLG. The transceiver features lite compression technology which is activated automatically when the raw data rate exceeds the Ethernet bandwidth so that all supported timing formats can be delivered through a single 10G Ethernet cable.

Key Features

• Fully Routable zero latency HDMI signals up to 4K60 4:4:4 over standard 10G Network
• Follows 10Gbps network standards and extends full 4K60 18G resolution and capability up to 100m over Cat6A or above (Lower resolutions may be extended even further)
• Supports HDR10+ & Dolby Vision
• Simultaneous two way extension. Transceiver can act as an encoder and a decoder at the same time, perfect for remote sources
• Extends 1Gbps Ethernet, RS232, & IR
• HDCP Compliant
