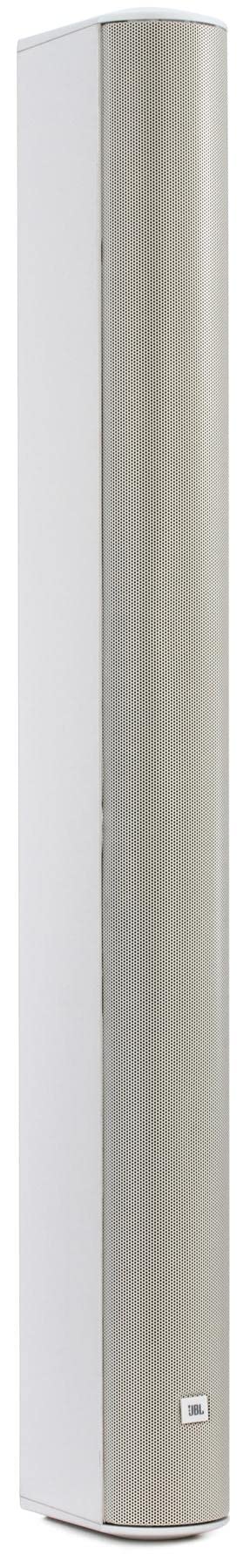

JBL CBT 100LA-1-WH Constant Beamwidth Technology Line Array Column Loudspeaker WHITE
The JBL CBT 100LA-1-WH Line Array Column Loudspeaker (White) with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.
Key Features
- Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
- Vertical pattern coverage switchable between 40deg. for medium-throw coverage and 15deg. for long-throw applications
- Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
- Dynamic SonicGuard overload protection
- Swivel (pan)/tilt wall bracket included
- Built-in 70V/100V transformer, plus 8 ohm direct capability
Technical specs
Components
Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB)
80 Hz - 20 kHz
Vertical Coverage
Narrow Mode: 15 deg. (2 kHz - 16 kHz) (Ā±10 deg.)
Broad Mode: 40 deg. (1 kHz - 16 kHz) (Ā±10 deg.)
Horizontal 150 deg. (ave, 1 kHz - 4 kHz, Ā±20 deg.)
Sensitivity (2.83V@ 1m)
Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )
(music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz)
(music mode) 90 dB (300 Hz - 18 kHz)
Nominal Impedance
8 ohms (in Thru mode)
Power Capacity (8 ohm setting)
325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs
Max SPL
Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
70V/100V Transformer Taps 120W, 60W, 30W (15W at 70V only) and 8ohms thru, via switch
Enclosure
Fiberglass reinforced ABS cabinet, painted aluminum grille
Outdoor Capability
IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
Insert Points
18 M6 insert points on back panel.
Dimensions (H x W x D)
1000 x 98.5 x 153mm (39.4 in x 3.8 in x 6.0 in)
Weight
7.2 kg (15.8 lb)
