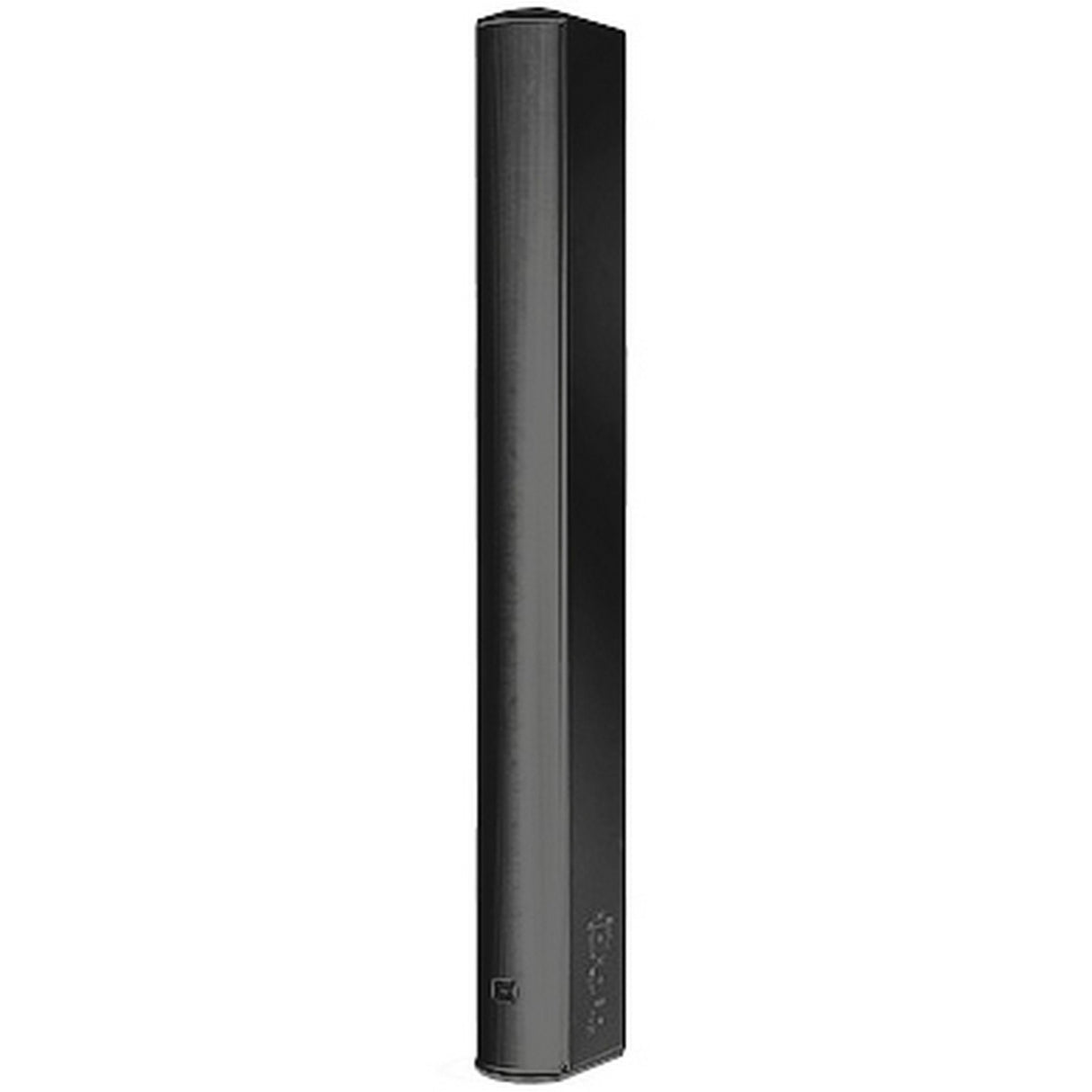

JBL CBT 100LA-LS Line Array Column Loudspeaker, Black

The CBT 100LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

Key Features

• Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
• EN54-24 Compliant (when installed with included MTC-PC2 panel cover).
• Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
• Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
• Dynamic SonicGuard overload protection
• Swivel (pan)/tilt wall bracket included.
• Built-in 70V/100V transformer, plus 8 ohm direct capability.

Technical Specifications

Components
Sixteen 50 mm (2 in) Full-Range
Frequency Range (-10 dB)
120 Hz - 20 kHz
Coverage Pattern
Vertical:
Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
Broad Mode: 40° (1 kHz - 16 kHz) (±10°)
Horizontal: 150° (ave, 1 kHz - 4 kHz, ±20°)
Sensitivity (2.83V@ 1m)
Narrow: (speech mode) 96 dB (2 kHz - 14 kHz )
(music mode) 93 dB (300 Hz - 18 kHz)
Broad: (speech mode) 93 dB (2 kHz - 14 kHz)
(music mode) 90 dB (300 Hz - 18 kHz)
EN54 Sensitivity (@ 4m)
76 dB (per EN54:24 spectrum and measurement conditions at 4 meters, set at broad/music mode.)
Nominal Impedance
8 ohms (in Thru mode)
15w@70v; 30w@100v Tap = 333 ohm
30w@70v; 60w@100v Tap = 167 ohm
60w@70v; 120w@100v Tap = 83 ohm
120w@70v; N/C@100v Tap = 42 ohm
Power Capacity
(8 ohm setting)
325 W (1300W peak), 2 hrs
200 W (800W peak), 100 hrs
Max SPL
Narrow: (speech mode) 121 dB cont ave (127 peak)
(music mode) 118 dB cont ave (124 peak)
Broad: (speech mode) 118 dB cont ave (124 peak)
(music mode) 115 dB cont ave (121 peak)
EN54 Max SPL (@ 4m)
92 dB (per EN54:24 spectrum and measurement conditions, at 4 meters)
70V/100V Transformer Taps
120W, 60W, 30W, (15W at 70V only), and 8 thru, via switch
Reference Axis
Specification and measurement referenced on-axis vertically and horizontally to the center point of the speaker baffle.
Enclosure
Fiberglass reinforced ABS cabinet with UL94-5VB flammability rating, painted aluminum grille
Outdoor Capability
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
Colors
Black or White (-WH)
Insert Points
18 M6 insert points on back panel.
Mounting
Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
Dimensions (H x W x D)
1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
Net Weight
7.2 kg (15.8 lb)
Safety Agency
EN54-24:2008 certified (Certificate No. 0359-CPR-00432), when installed with MTC-PC2 terminal panel cover. Cabinet UL94-5VB flammability rated. In accordance with the requirements of IEC60849/EN60849. Transformer UL registered per UL1876.
Included Accessories
Swivel (pan) / tilt wall bracket
MTC-PC2 terminal panel cover
Optional Accessories
MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
