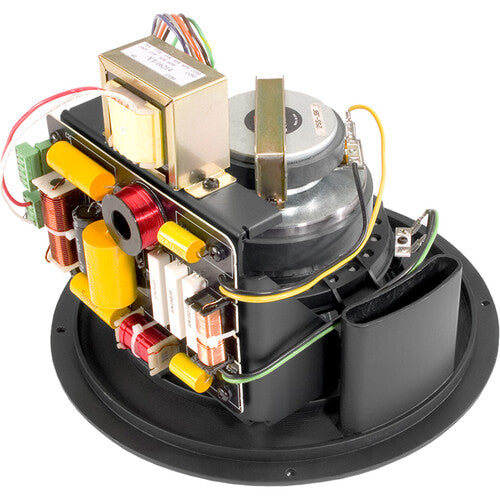

JBL CONTROL 328C 8inch Coaxial Ceiling Loudspeaker with HF Compression Driver

Control 328C has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Key Features

• Consistent 120° broadband pattern control covers an extremely large area.
• Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
• Components : 200 mm (8 in) woofer with Kevlarre inforced cone and 50 mm (2 in) voice-coil. 25 mm (1" exit) compression driver.
• Extraordinary clarity for speech and vocals with extended frequency response for music.
• 250 Watt power handling with very high sensitivity provides high SPL capability.
• Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
• Clean, contemporary grille and optional backbox available.

Technical Specifications

Frequency Range (-10 dB) : 45 Hz – 18 kHz
Long-Term System
Power Rating : 250 W (1000 W peak), 2 hrs
150 W (600 W peak), 100 hrs
Sensitivity (2.83V@ 1m) : 93 dB4 measured half-space
Frequency Response (±3 dB) : 60Hz – 16 kHz
Coverage Pattern : 120° conical, broadband
Directivity Factor (Q) : 7.0 (Avg 1k - 16kHz)
Directivity Index (DI) : 8.5dB (Avg 1k - 16kHz)
Maximum SPL : 118 dB cont ave (124 dB peak)
Crossover Network : 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order
low-pass to LF
Nominal Impedance (321C) : 8 ohms
Dimensions (H x W x D) : 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 160 mm (6.3in)
