JBL CSS-BB8X6 | 8 inch Backcan for CSS8008 CSS8018 Speaker 6 Packs
JBL CSS-BB8X6 | 8 inch Backcan for CSS8008 CSS8018 Speaker 6 Packs
Free Shipping

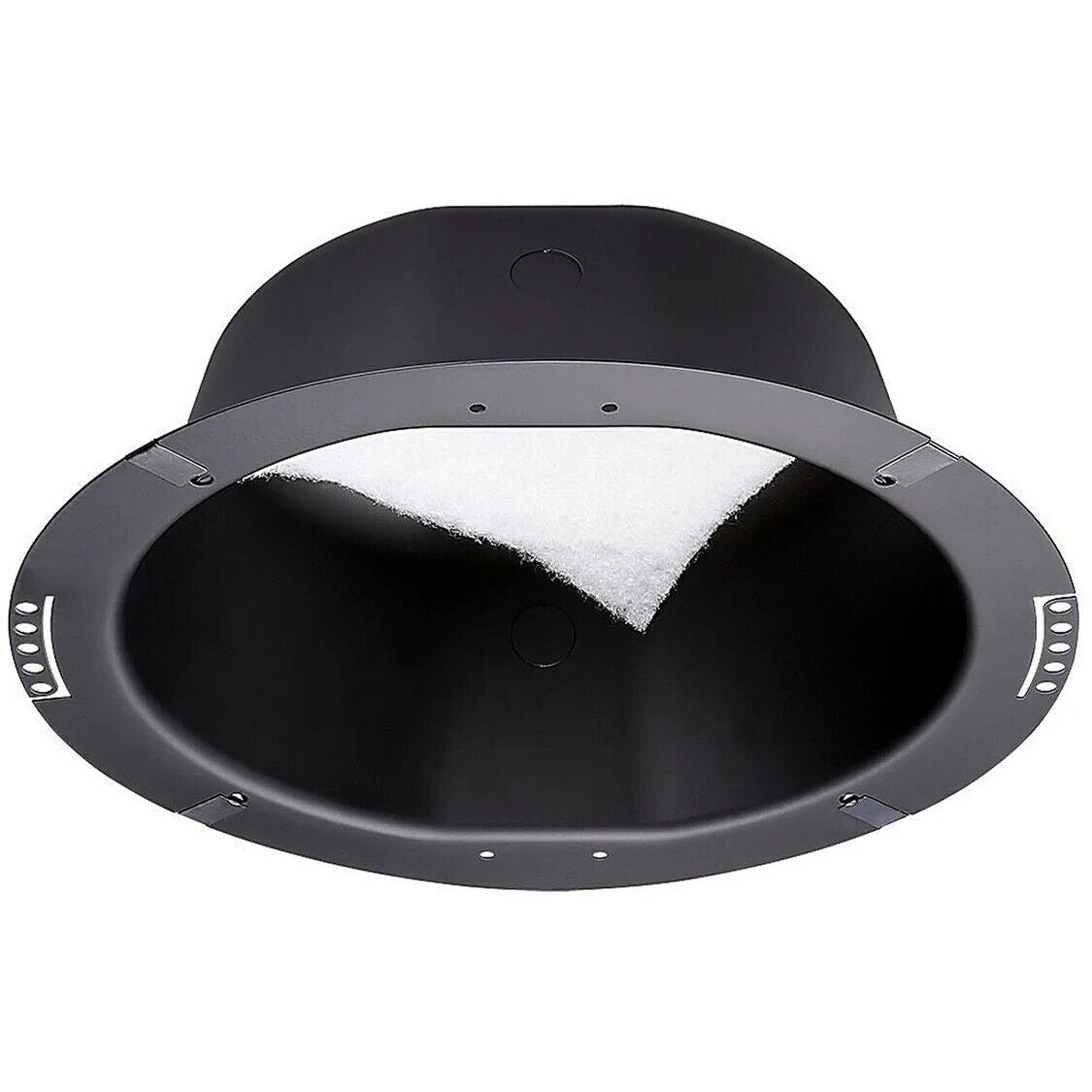

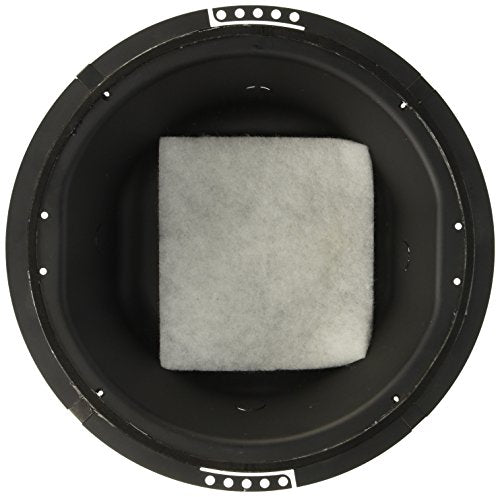

JBL CSS-BB8X6 8 inch Backcan for CSS8008 CSS8018 Speaker 6 Packs
Pre-install backcan for use with CSS8008 or CSS8018 speaker. For suspended ceilings, tile rail is CSS-TR4/8. Comes in packs of 6 pcs CSS-BB8x6, for 6 speakers.
Technical Specifications
Compatibility : CSS-8008 and CSS-8018 speaker, CSS-TR4/8 tile rails
Dimensions : 108 deep x 334 diameter mm (4.3 x 13.2 in)
Bolt Mount Circle : 4 points on 286 mm (11.25 in) diameter
Air Space : 4.0 liters (0.15 cu ft)
Material : Steel, zinc-plated, powder-coated
Conduit Knockouts : Five (5) knockouts:
4 on sides spaced at 90Ā° and
1 at center of top panel
Attachment Points : 4 points on 286 mm (11.25 in) diameter with clip nuts for 4 screws.
Safety Agency : Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed loudspeaker, above. S7232/UL Listed, Signaling Speaker. CUL Listed. In accordance with IEC60849/EN60849.
Net Weight (ea) : 0.87 kg (2.0 lb)
Shipping Weight (ea) : 1.04 kg (2.3 lb)
Included Accessories : 4 pcs M4 x 8 mm machine screws for attaching two tiles rails to backcan
