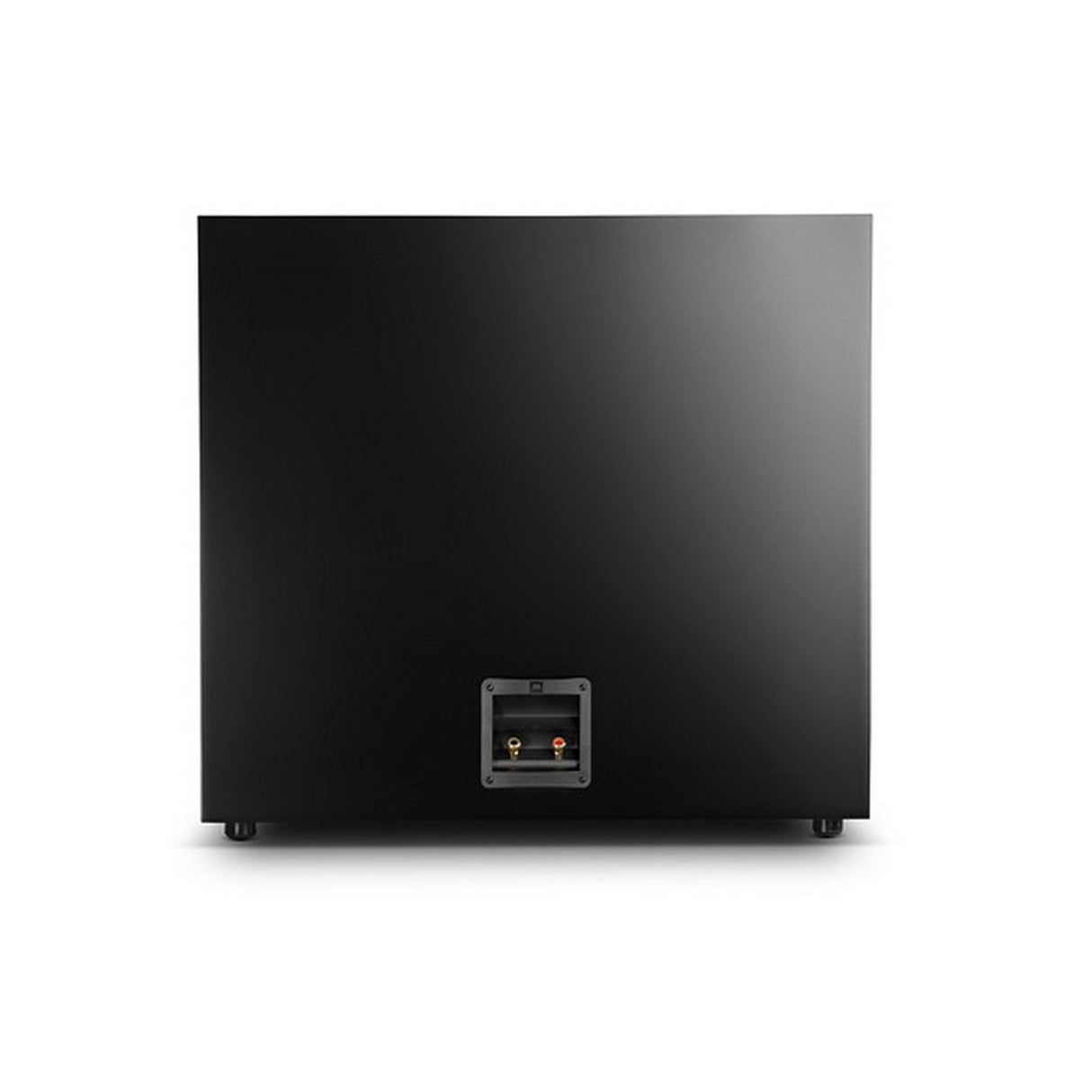

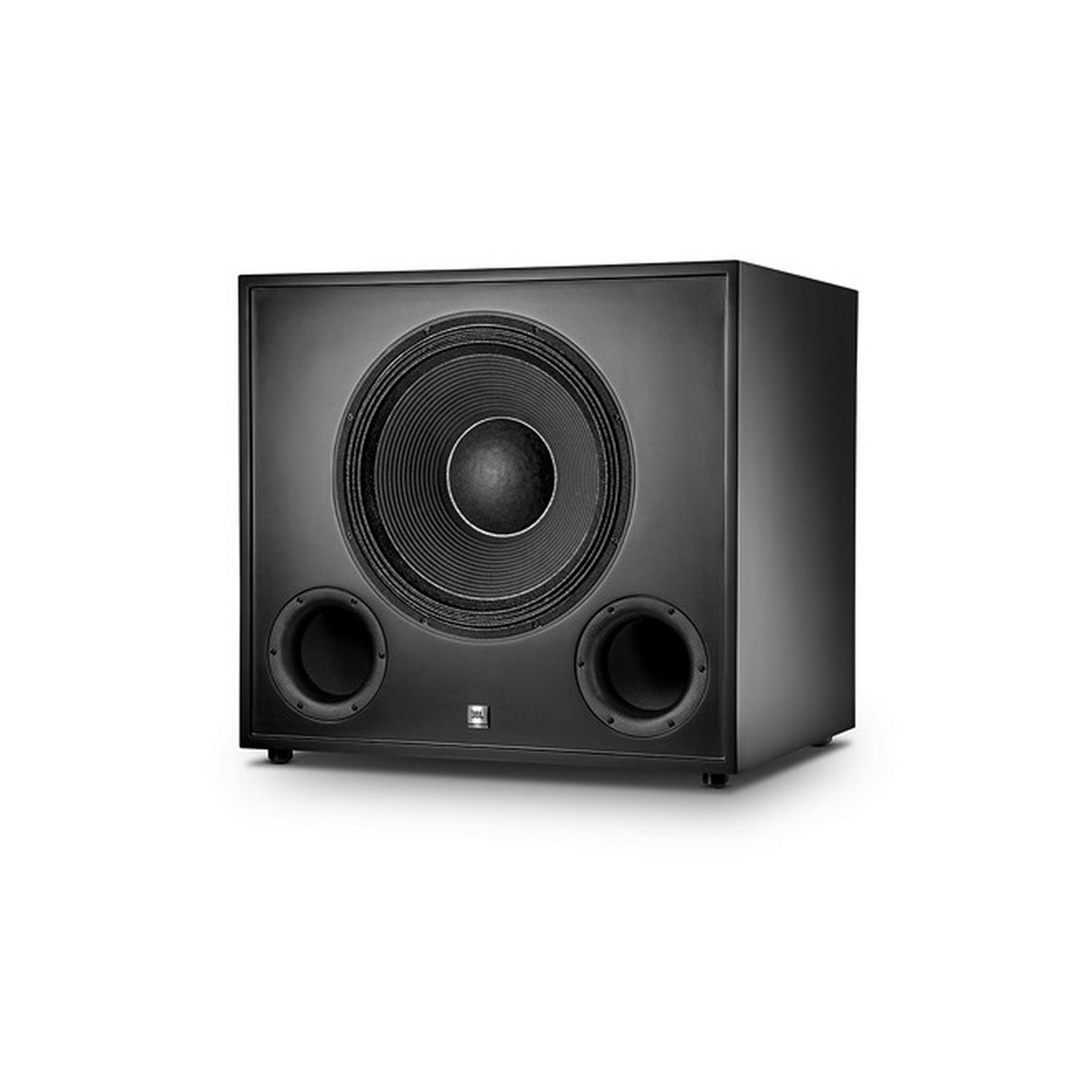

JBL SUB18 18 Inch High Output Studio Subwoofer
JBL introduces its most powerful studio subwoofer for applications in which very high continuous output and extreme low frequency response is required. With in-room response below 18Hz and 137 dB peak output, the SUB18 delivers unprecedented performance for demanding dance music production, while providing exceptional accuracy required in cinema post production applications. As an add-on to JBL's M2 Master Reference Monitor system, the SUB18 allows three times greater output from the system.
Key Features
- Max Peak SPL Maximum Output (2p): 137 dB SPL
- Sensitivity 92dB at 3.3' (1 m), 2.83 V
- Passive Subwoofer
- 18" Subwoofers
Technical Specifications
In-room response
Below 18 Hz
Frequency Response, -10 dB
20.6 Hz
Frequency Response, -6 dB
23.1 Hz
Maximum Peak Output
137 dB SPL
System Input Power Rating, AES/2 Hr.:
LF 2000W continuous/8000W peak
Sensitivity
92dB @ 1m, 2.83 V
Recommended Amplifier Power
3,500 to 4,000W into 8 Ohm
Recommended Signal Processing
Crown iTech HD Power Amplification. Preset for use with JBL M2 available
LF Transducer
One JBL model 2269H, 18-inch (457 mm); 100mm (4-inch) dual voice coils, dual neodymium magnets. Differential Drive Direct Cooled
Rated Impedance
8 Ohm
Enclosure
18mm 11-ply Baltic Birch Plywood
Finish
Black Lacquer
Input Connectors
2 ea. Push Terminals
Recommended Wire
12-Gauge
Dimensions HxWxD (including feet)
27 x 30 x 24 inches (685 x 762 x 620 mm)
Weight
100 lbs ( 45 kg)
