JMAZ Attco Beam 230 LED Moving Head Beam with Prism
Authorized Dealer
Free Shipping
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

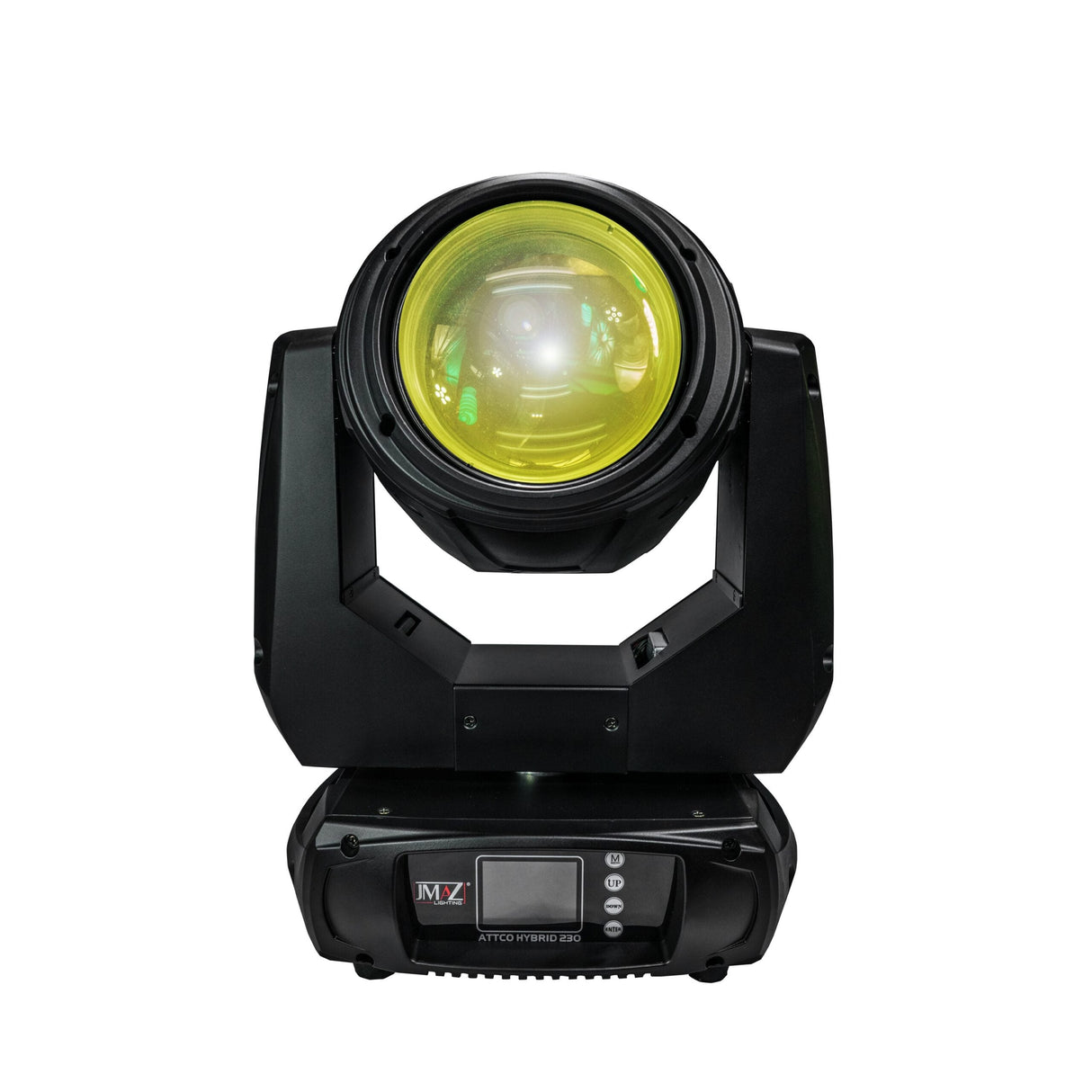

JMAZ Attco Beam 230 LED Moving Head Beam with Prism
The JMAZ ATTCO HYBRID 230 Features with Super Prisms (16 facet+24 facet prism)and a powerful, ultra bright OSRAM 7R lamp, 3 phase motors , Solid Beam angle: 2.5 ,Anti-reflection 136mm front lenses. JMAZ ATTCO HYBRID 230 is integrated with a full complement of professional characteristics including a static gobo wheel (16 gobos) ,a color wheel (11 colors), Frost filter, Motorized focus from near to far (2.5M-30M), variable speed shutter/strobe, 0-100% linear dimmer
Key Features
- ABS die-cast plastic cover with Aluminium structure
- Motorized focus from near to far (2.5M-30M)
- 16-facet prism with variable speed and direction
- 16-facet prism+8-facet prism with variable speed and direction
- Combined prism effect by 16-facet prism and 16-facet +8-facet prism with variable speed and direction
- Frost filter available (Hybrid effect for wash)
- Variable direction rainbow effect with speed adjustable
- Dual flag mechanical dimming system
- 20T/sec high speed shutter/strobe effect with variable speed
- Preset variable/random strobe and dimming pulse effect
- 2.4 TFT LCD display (320*240pix)
- Display reversible for up side down application
- Vector mode with blackout MIB function
- Electronic ballast and power supply
- Power con IN/OUT
- 3-Pin XLR connectors IN/OUT
- Lamp using time readable on the display
- 55dB at 3’dB rating
- 2*1/4 turn fastening Omega clamps
- 1*Safety attachment point available
Technical Specifications
Effects
11 colors & white with bicolor option
16 static gobos & open, with beam reducers included
Frost filter
16 Facet prism with variable speed and direction
24 Facet prism with variable speed and direction
Prisms can be both inserted on the beam and their rotation speed and direction is independently controlled.
Electronic focus with range from 2,5 to 30 meters.
Fast Pan & Tilt movements
Double blade shutter for dimming, strobe and pulse effects
Control
MX control with 14 or 16 DMX channels
Auto, Music modes
Manual control via the fixture’s LCD screen
Feedback for Pan/Tilt movement correction
2.4 TFT LCD display (320*240pix)
electronic ballast and power supply
Power supply
90/260 Volt AC, 50/60 Hz.
Dimensions
203 x 370 x 375 mm (D x W x H)
Packing Dimensions
490 x 370 x 375 mm (D x W x H)
Net Weight
13,2 Kg
Gross Weight
15,92 Kg.
