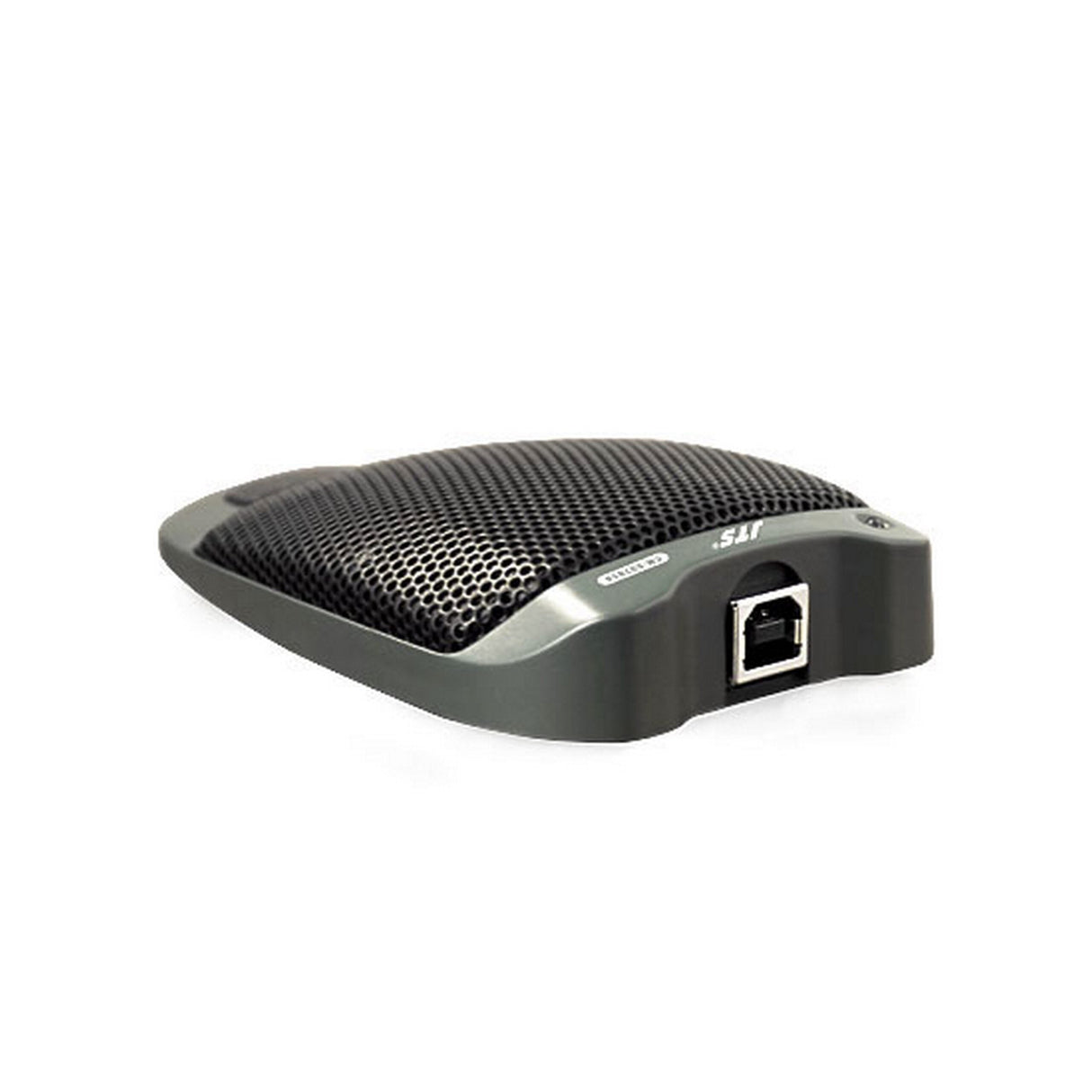

JTS CM-602 USB Semi-Cardioid Boundary Microphone
The CM-602 USB is a semi-cardioid Electret boundary microphone, with USB port. On/off switch with power LED. Elastic cartridge suspension for preventing impact sound and structure-borne noise. Supplied with 1.8 Meter USB connection cable.
Key Features
- The CM-601 is designed for conference, house of worship, and theater applications.
- The CM-601 features red LED indicator, 3 step Low-Cut switch and back electric cardioid condenser capsule.
- The membrane ON/OFF switch can be programmed to PUSH ON/PUSH OFF, PUSH TO TALK and PUSH TO MUTE three modes.
- The precisely calculated circuit plus tailored capsule response ensures transparent sound quality.
- Internal shock mount minimizes mechanical noise.
- The CM-602 is a simplified version of CM-601 with ON/OFF switch only.
- USB
Technical Specifications
Type
Electret Condenser
Frequency Response
30~12,000 Hz
Sensitivity (at 1,000Hz)
-53±3 dB(2.23mV) 0dB=1V /μbar
Directional Pattern
Half-Cardioid
Impedance
100Ω
Max. SPL for 1% THD
125 dB
Signal-To-Noise Ratio
67dB
Power Supply
12-52 VDC phantom power
Current Consumption
≤6mA
Output Connector
3P Mini XLR-M type (power module)
Net Weight
88 grams
CM-601 Only
0
Low Frequency Roll-off
80Hz, 120Hz
Switches
Push control: on/off
Function selection: push on/off, momentary on/off
Low cut: low frequency roll-off
