JTS MA-500 3-Pin XLR Phantom Power Adapter
JTS MA-500 3-Pin XLR Phantom Power Adapter
JTS MA-500 3-Pin XLR Phantom Power Adapter

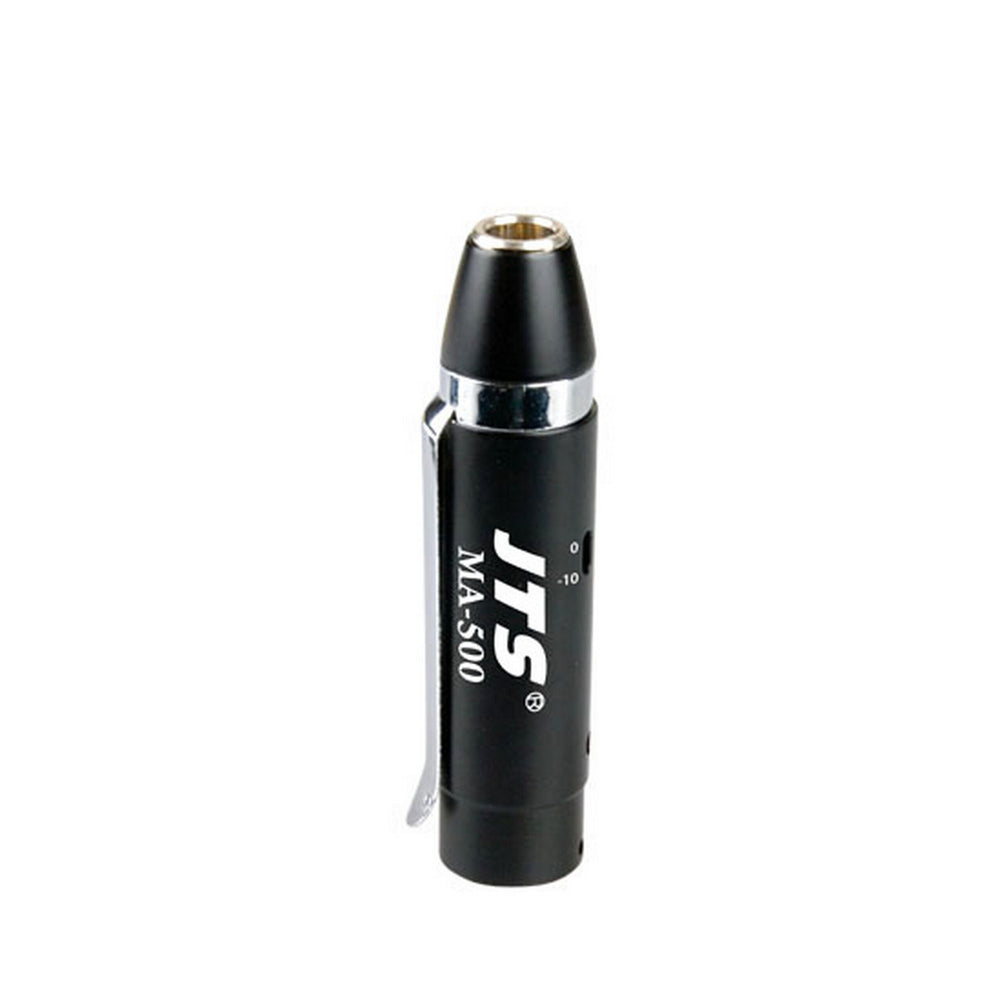

The MA-500 is a clever little adaptor that allows you to connect a standard 3 pin XLR from an input with phantom power to a JTS 4 pin mini XLR condenser microphone. PAD (-10dB) and Low Cut (100Hz -6dB 400Hz -4dB) switches. Can be powered by JTS ’s PS-1, Phantom Power Supply or 48V phantom power from other devices.
Technical Specifications
MIC Input
4P Mini XLR(Male)
Output.
XLR(Male)
Phantom Power
12~48V
PAD
-10dB
Low Cut
100Hz -6dB
400Hz -4dB
Frequency Response
30~20,000 Hz
Impedance
220Ω
T.H.D.
<0.045%@1KHz -50dB
S/N.
>95 dB
Weight
40 grams
Dimensions(mm)
Ø20mm*84.5mm(H)
