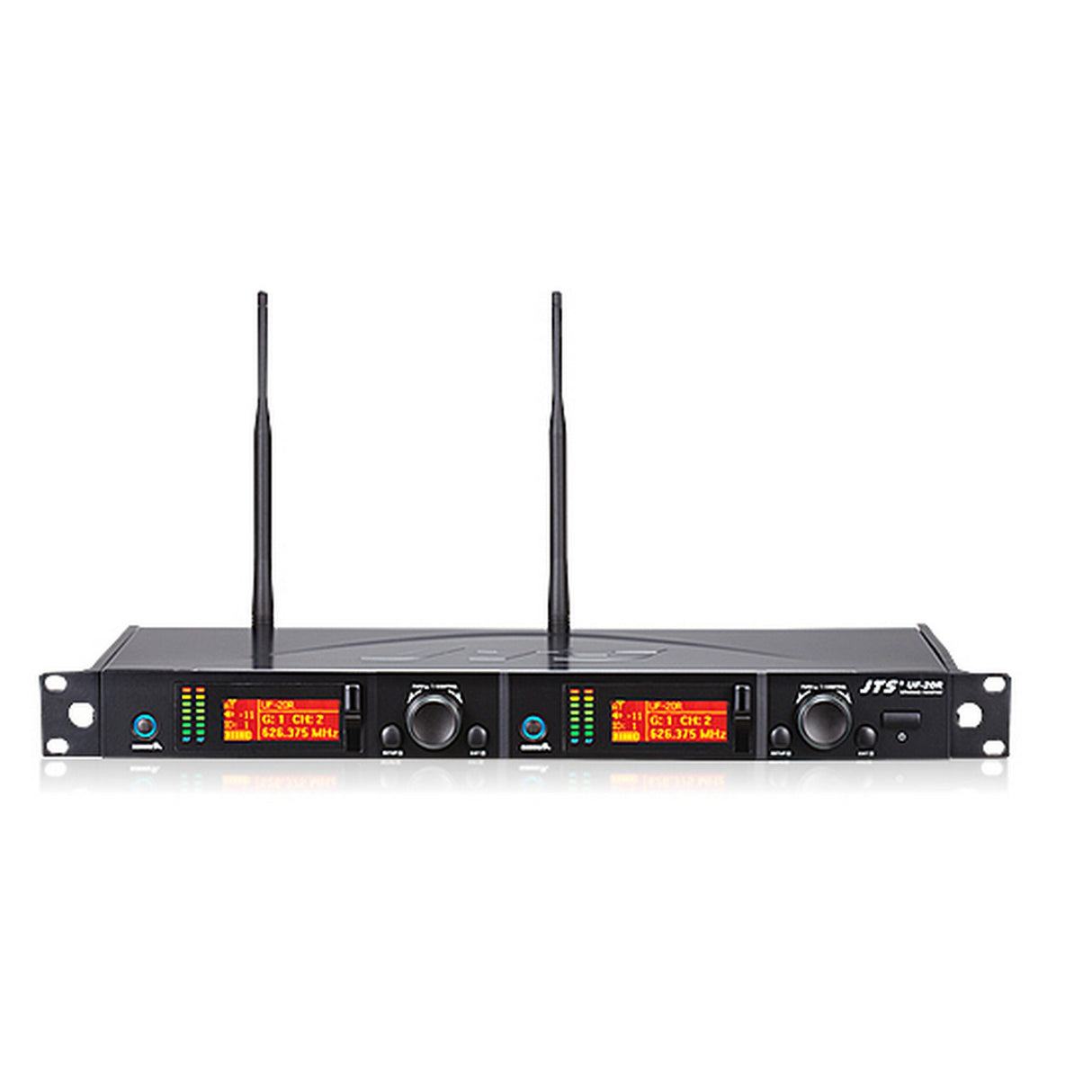

JTS UF-20R UHF Dual Channel Wideband True Diversity Wireless Receiver
UHF dual channel wideband true diversity wireless receiver
Key Features
- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
- Built in equalizer
Technical Specifications
UF-20R
Frequency Preparation
PLL Synthesized Control
Frequency Setting
JTS patented obstacles-free RF REMOSET
Carrier Frequency Range
UHF 470~960 MHz
Channel
Dual
Bandwidth
60~75MHz Wideband
S / N Ratio
> 108dB (A)
T.H.D
<0.5% @ 1KHz
Chassis
1U standard metal chassis
Preset Channels / Group
From group 1 ~ 15 up to 63 interference-free compatible channels.
690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
User programmable from U1 ~ U6 each of 64 channels reserved.
Display
LCD
Display Contents
Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity
6dB?V, at S / N> 80dB
Receiving Mode
True diversity
Audio Output Level
Maximum 6dBu
Receiving Mode
True diversity
AF Output Impedance
600
Frequency Response
50Hz ~ 18kHz, with high-pass filter
Squelch
Pilot Tone & Noise Mute
Power Supply
100 ~ 240V or 12V DC
Output Connector
2 XLR Balanced Socket
2 -6.3mm Unbalanced phone jack
Dimension (m / m)
480mm (W) 45Mmm (H) 260mm (D)
Notes
Actual product specifications may vary depending on model and region.
