Juice Goose CQ 1515 Three Sequence 15 AMP Power Distribution System
This is a great product for "front of house" applications or anywhere AC power protection is needed for several pieces of low current equipment that need to be controlled and sequenced. It provides superior AC line conditioning and surge protection for sensitive electronic audio, video and data processing equipment. The CQ-1515 is a single space rack mount device featuring 7 AC power outputs on the rear of the chassis with a combined rating of 15 amps. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection and line noise filtration. Because the CQ-1515 has a self contained sequencing circuit, it can be the master or slave in a power sequencing system. Eight wire RJ-45 cable can be connected to this unit's Signal Input and/or Signal Output connectors to link it's operations with other CQ or control devices.

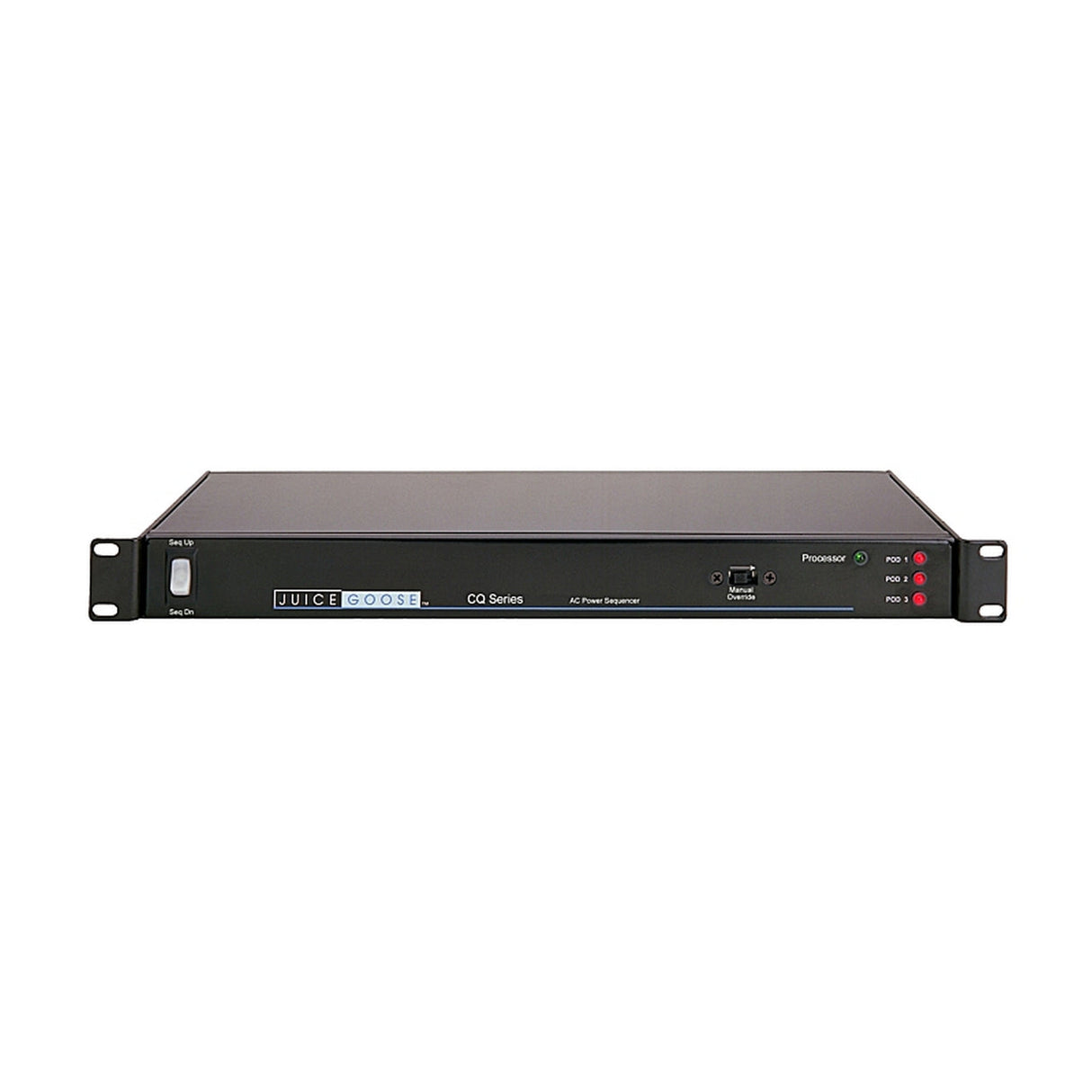

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched. The CQ-1515 provides AC line protection across hot, neutral and ground with a multi-stage line filter and a three way surge protection matrix.
Key Features
- 19ā wide rack with metal mounting rails, designed with 1.75ā spacing
- Feature a multi-stage AC line filter to reduce high frequency interference
- Triple surge protection matrix across hot, neutral and ground power leads
- Feature a two position switch on the front of the chassis
- Lights on the front of the chassis allow monitoring of the unit operation
Technical Specifications
DETAIL SPECIFICATIONS
Chassis : Tour Class (tm) 16 gauge steel with 11 gauge rack mount brackets
Dimensions : 1.75āH x19āW x 7āD
Weight : 10 lbs
Circuit Breaker (thermal on back of the chassis)
CQ-1515 15A
CQ-1520 20A
AC Power Filtration : Multi-stage Filter (48dB @ 30 MHz)
AC Surge Protection : Triple surge protection matrix on hot, neutral and ground
Number of Sequence Events : Three
Power Input (seven foot power cord)
CQ-1515 14/3 SJ with NEMA 5/15P plug
CQ-1520 12/3 SJ with 5/20P (requires a 5/20R receptacle)
Power Output (plus one unswitched NEMA 5/15R on back of the chassis)
CQ-1515 six sequenced NEMA 5/15R
CQ-1520 six sequenced NEMA 5/20R
Input Voltage : US standard (120 VAC @60Hz)
Signal Connections : RJ-45, eight wire cable
Monitor Features : Monitor LEDs correlate to processor and relay operation
