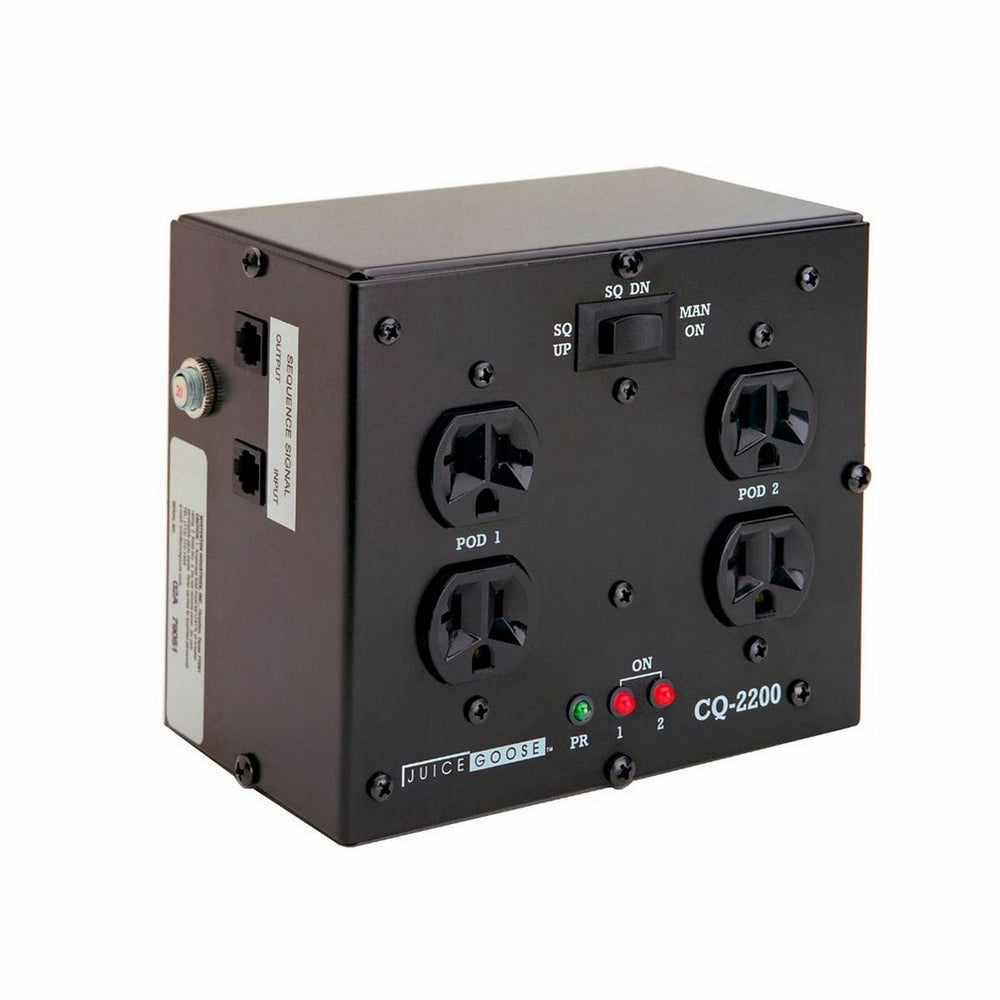

Juice Goose CQ 2200 Dual Sequenced 20 AMP Power Distribution System
Juice Goose CQ 2200 Dual Sequenced 20 AMP Power Distribution System
Free Shipping
Juice Goose CQ 2200 Dual Sequenced 20 AMP Power Distribution System
Dual Sequenced 20 AMP Power Distribution System with Remote Control Capability
The Juice Goose CQ-2000 and CQ-2200, along with the other products in the CQ Series, provide a versatile and powerful means of remotely activatin g AC power in a sequenced array fo r application to both sensitive and high amperage equipment. CQ Series products need no additional controllers. Each contains the circuitry to be activated by a simple contact closure and to perform in coordination with other CQ devices. All power down sequences are exact reversals of the power up wequences.
Key Features
- Easily controlled by way of either 8 wire, RJ-45 or 6 wire, RJ-12 cable.
- Each CQ has a Sequence Signal Input and Output connector on the chassis.
- Two duplex receptacles, each with its own preset turn on and off timing.
Technical Specs
Chassis
16 gauge steel mounts through holes in back box
Dimensions
5.5H x 6.4W x 3.75D
Weight
5 lbs
Circuit Breaker
20A thermal on side of the chassis
Relay Current Rating
30A
Number of Sequence Events
CQ-2000 one, CQ-2200 two
Power Input
Hard wire through strain relief on back box
Power Output, NEMA 5/20R
CQ-2000 two, CQ-2200 four
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections
Either RJ-45 eight wire or RJ-12 six wire cable
Monitor Features
Monitor lights correlate to processor and relay operation
