Juice Goose CQ PD1-4 4 Circuit Sequenced 20 AMP Power Distribution System with Remote Control Capability

Four Circuit Sequenced 20 AMP Power Distribution System with Remote Control Capability

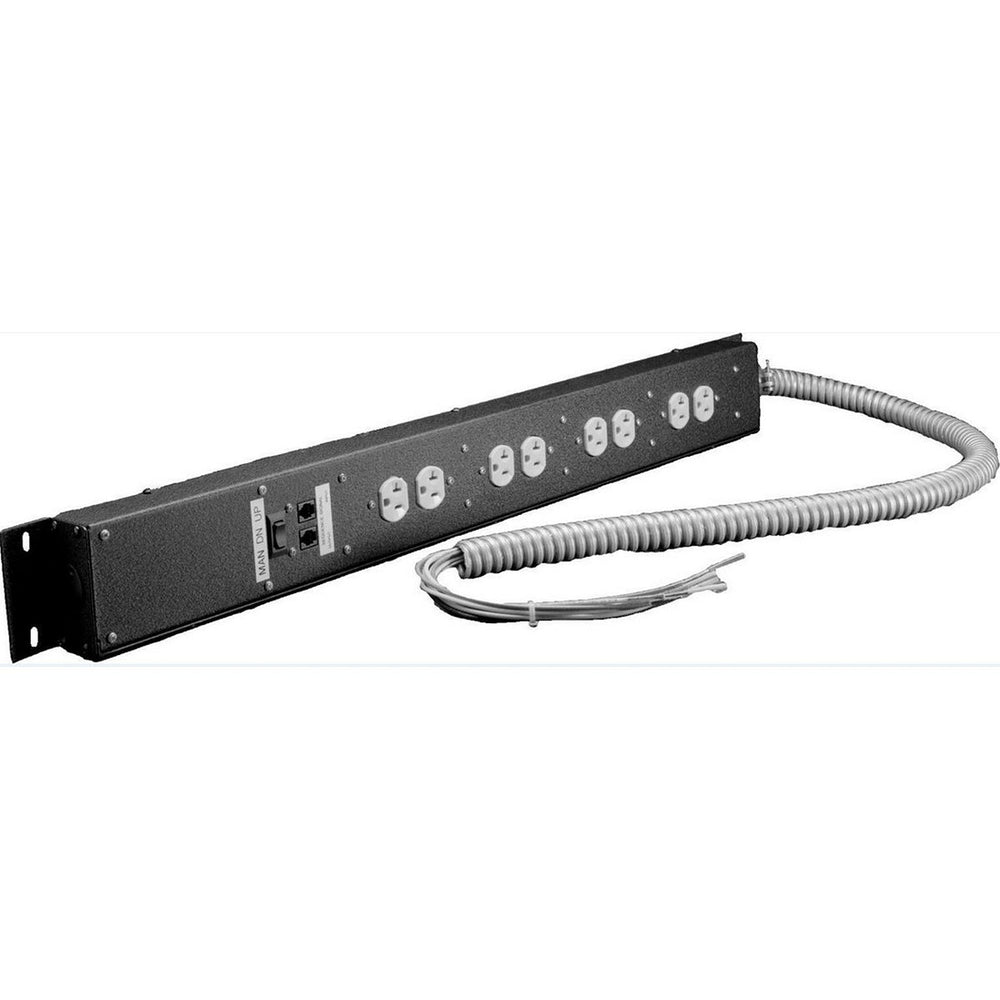

This four circuit blend between the CQ Series and the Juice Goose PD-1 is a workhorse. Its compact design fits in the back of a rack and adds four sequenced twenty amp circuits for a full 80 amps of remote power control. The CQ-PD1-4 is designed to be wired directly to a breaker panel. It then connects and operates just like any CQ Series model.

It's easy to install. The CQ-PD1-4 is designed with an external wire harness and optional flexible conduit, so no internal hook-up is required.

Technical Specs

Chassis
16 gauge steel
Dimensions
32L x 3.5W x 2D
Weight
13 lb
Current Rating
Four @ 30A each
Number of Sequence Events
Four
Power Input
4 standard external wire harness
Power Output
Four NEMA 5/20R
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections (Input and Output)
RJ-12 six wire cable
Monitor Features
Monitor light correlates to processor operation
