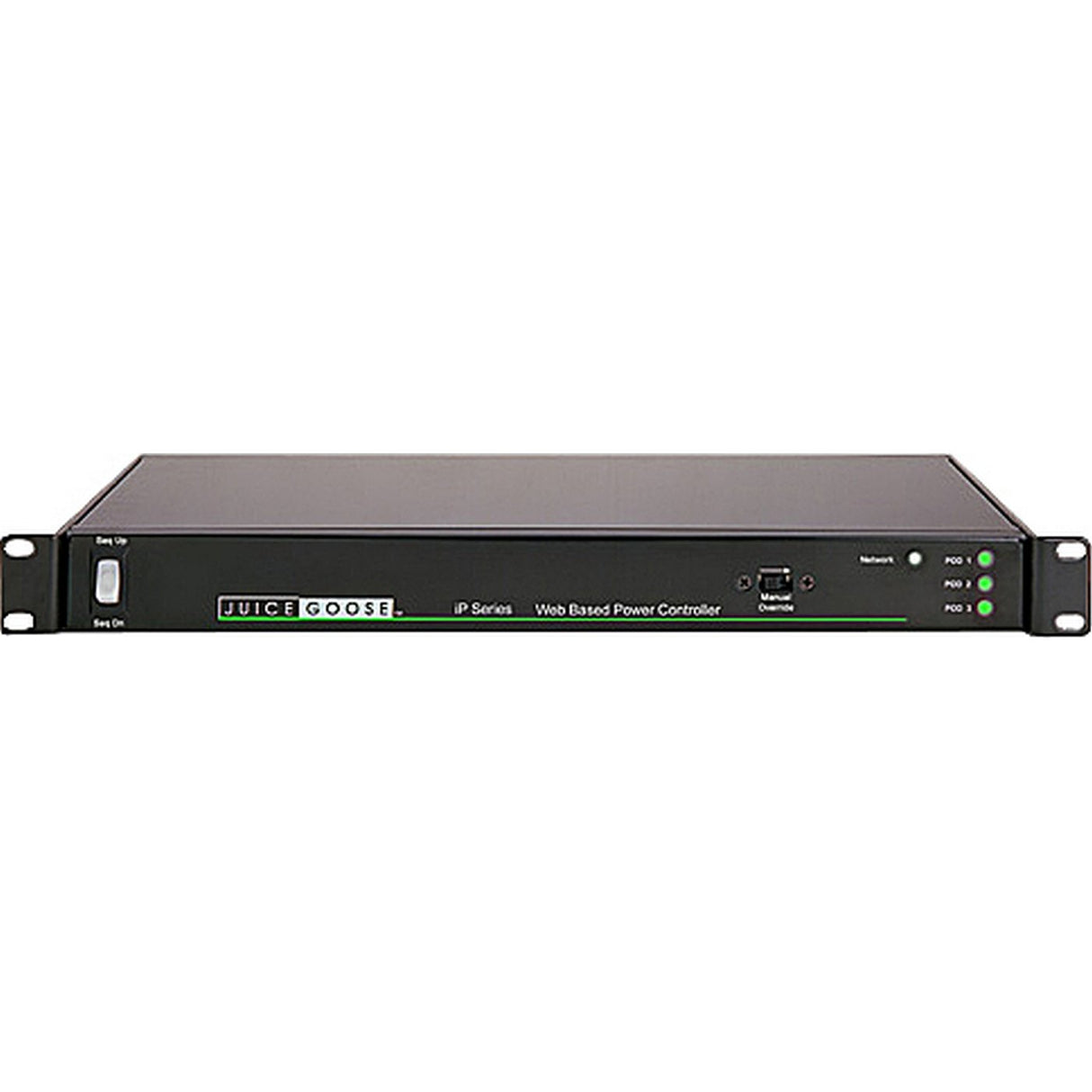

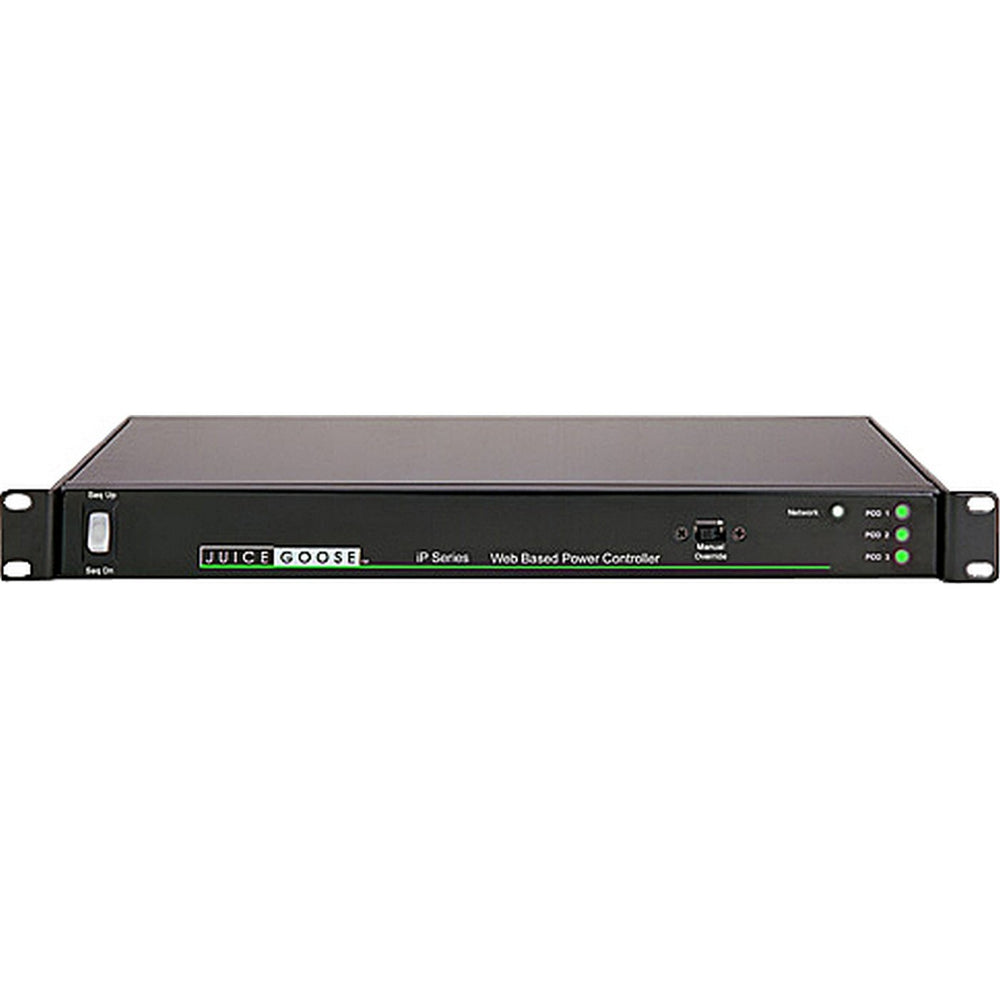

Juice Goose iP 1515 Web Based Power Distribution AC Power Protection Microcontroller
The Juice Goose iP 1515 is a microcontroller based power distribution device with AC power protection that can be accessed via internet or intranet communications using Ethernet or RS232 connection. With this remote access, individual AC receptacles can be turned on and off and monitored for electrical current flow. The iP 1515 has a fifteen amp capacity. The iP 1515 provides economical web or intranet based remote power control to six receptacles grouped into three individual Power Pods. Each of these Pods can be turned on and off individually from anywhere on the planet. In addition, current draw can be monitored from 0.2 to 15.0 amps per power POD. The iP 1515 can be controlled by the on board web server graphic interface that can be accessed by any web browser. It can also be remote controlled by RS232 or TCP/IP connection to commercial or proprietary control systems.
Key Features
- HTML, TCP/IP or RS232 remote control
- Local fail safe sequencing and manual override
- On-board web server for easy set up, control, sequencing and monitoring
- Front panel indicators for network connection and outlets on
- Amperage monitoring from 0.20 to 15.0 amps per power POD
- Administrator and User login options
- Automatic Power Cycle to reboot a network data router if network connection is lost
- AC line conditioning and surge protection
Technical Specifications
DETAIL SPECIFICATIONS
Chassis : 16 gauge steel with 11 gauge rack mount brackets
Dimensions : 1.75āH x19āW x 7āD
Weight : 10 lbs
Circuit Breaker : 15A (iP 1515) or 20A (iP 1520) thermal on back of the chassis
Technical Current Rating : 12A (iP1515) or16A (iP1520)
Number of Addressable Power Pods : Three
Power Input : Seven foot power cord with NEMA 5/15P (iP1515)
or NEMA 5/20P (iP1520) (NOTE: iP1520 requires a 5/20R receptacle)
Power Output : Six switched NEMA 5/15R (iP1515) or 5/20R (iP1520), plus one unswitched
NEMA 5/15R (iP1515) or 5/20R (iP1520)
Input Voltage : 120 VAC @ 60Hz
Signal Connections : Ethernet (RJ-45) RS 232 (RJ-11)
Network Protocol : HTML, TCP, UDP or RS232
Monitor Features : Local and remote, network connection and current level
Operating Temperature Range : -10C to +40C
