Juice Goose JG 8LED Rack Mount Power Distributor with LED Rack Lights 15 Amp 8 Outlets

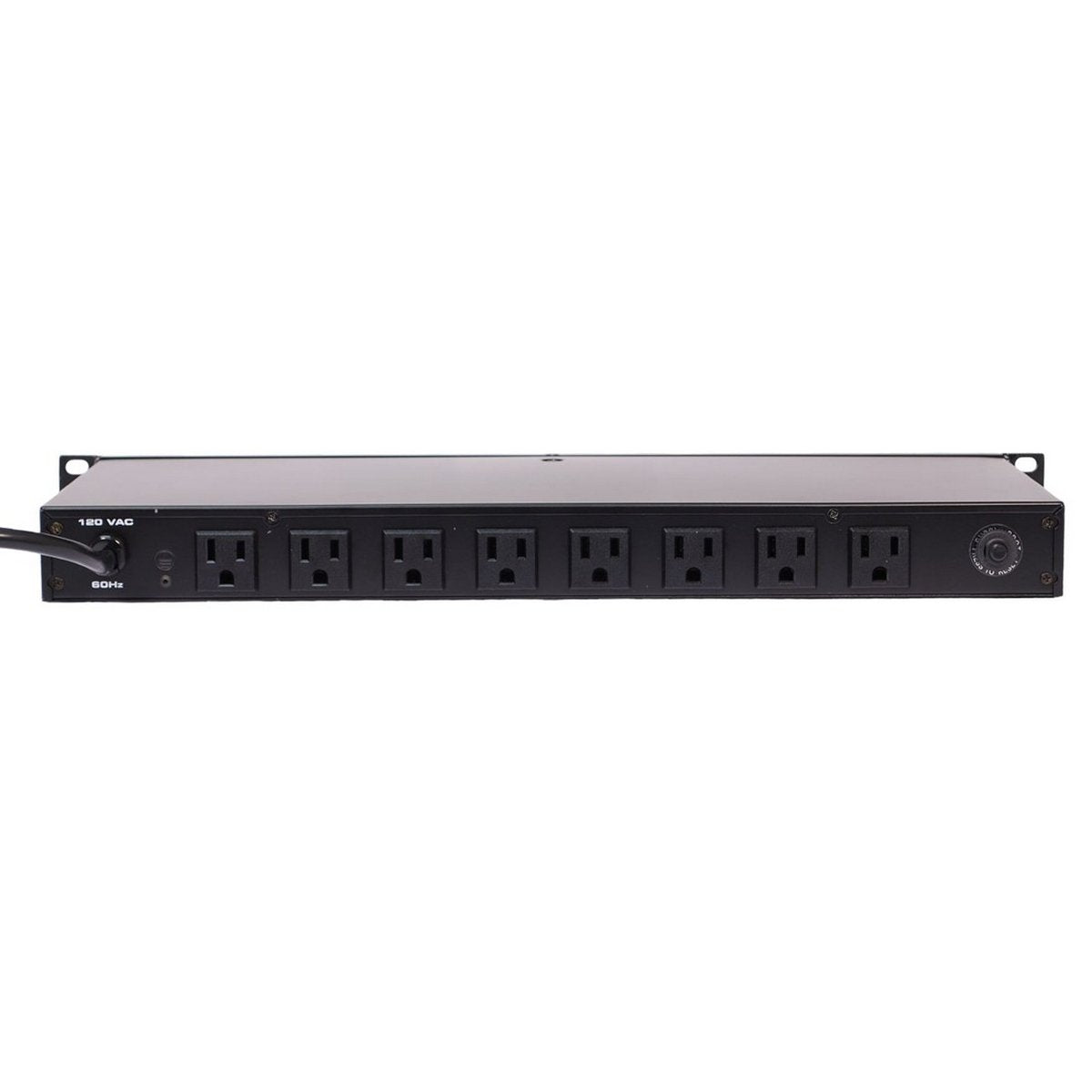

The JG8 Series family of power and light modules includes four great, economical models. The eight switched AC power outlets on the back of each unit are rotated to better accommodate wall wart power supplies and provide a full 1800 watts of power. Discreet components inside each unit provide a base level of equipment protection against AC power spikes without contaminating the ground line. JG8 Series products are designed, produced and priced to provide quality and convenience within the limits of an everyday budget. (The JG 8.0 is ETL listed: File 3176209DEN-002 UL Standard 60950-1)

LIGHTS & METER The JG8.L, JG8.LED and JG8.LM feature two metal encased, slide out light modules. These lights can be dimmed and rotated to control the intensity and direction of the two light beams. After use, the lights slide into the chassis to store conveniently away. The JG8.LED lights are LEDs that stay cool and last for years. Lights in the JG.L and JG.LM are standard incandescent bulbs. The JG8.LM features a 20 segment LED voltage meter which monitors utility power and reports cases of low voltage brown out or dangerous over voltage conditions.

Key Features

• Power distribution shall be the Juice Goose JG 8LED.
• It shall have a 15 amp capacity and be rack mountable in a 19" x 1U space.
• It shall have 8 outlets on the back of the chassis in addition to a thermal, 15 amp current overload, secondary protection device.
• The front panel shall feature a) two slide out light tubes containing incandescent bulbs that may be turned on or off and dimmed with a control knob on the front of the chassis and b) a lighted master power switch.
• Additional features shall include power surge protection across the hot and neutral leads.
• The AC receptacles shall be oriented such that the grounding contact is at the bottom of the receptacle.

Technical Specs

INPUT VOLTAGE
120vac, 60 Hz
TECHNICAL CURRENT CAPACITY
12 Amps (80% of circuit breaker rating)
CURRENT OVERLOAD PROTECTION
Circuit Breaker, 15 Amp Thermal on Rear
DIMENSIONS (inches)
1.75H x 19W x 7D
WEIGHT
5 to 6.5 lbs
CHASSIS
Steel with aluminum light tubes
POWER CORD
6 Foot 16/3 SJT
POWER OUTPUT CONNECTORS
Eight NEMA 5-15, 15 Amp Rating
AC LINE FILTRATION
Line & Neutral
VOLTAGE SPIKE PROTECTION
Line & Neutra
