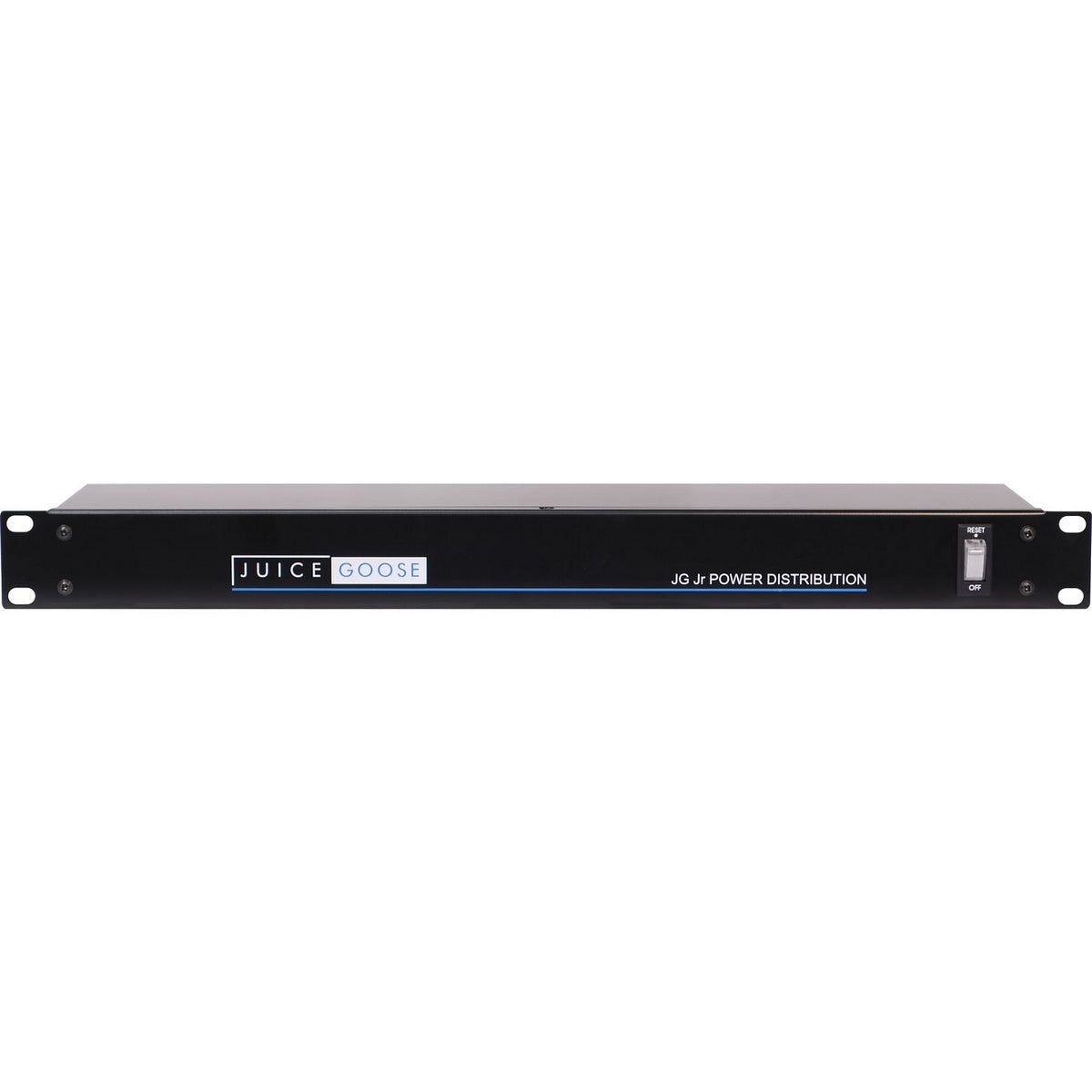

Juice Goose JG Jr Rack Mount Economical Power Distribution Center 15 Amp 6 Outlets
Juice Goose JG Jr Rack Mount Economical Power Distribution Center 1...
Juice Goose JG Jr Rack Mount Economical Power Distribution Center 15 Amp 6 Outlets
The JG Junior is just whats needed to get plugged in and operating. This very cost effective piece makes it easy to power up rack mounted equipment. In addition to a base level of line noise filtration and voltage spike protection, the JG Junior offers: current overload protection, a lighted master power switch, six power outlets and a 4.50 deep, all steel chassis. Plus, all outlets are rotated to better accommodate wall wart power supplies.
Key Features
- Power distribution shall be the Juice Goose JG Jr.
- It shall have a 15 amp capacity and be rack mountable in a 19" x 1U space.
- It shall have 6 outlets on the back of the chassis and a combined master power switch and current overload, secondary protection device on the front of the chassis.
- The AC receptacles shall be oriented such that the grounding contact is at the bottom of the receptacle.
- Additional features shall include power surge protection across the hot and neutral leads.
Technical Specs
INPUT VOLTAGE
120 VAC, 60 Hz
TECHNICAL CURRENT CAPACITY
12 Amps (80% of circuit breaker rating)
CURRENT OVERLOAD PROTECTION
Circuit Breaker Integrated Power Switch,
15 Amp Max.
DIMENSIONS (inches)
1.75H x 19W x 4.5D
WEIGHT
4 lbs
CHASSIS
Steel
POWER CORD
5 Foot, 16/3 SJT
POWER OUTPUT CONNECTORS
Six NEMA 5-15, 15 Amp Rating
AC LINE FILTRATION
Line Capacitor (Line & Neutral)
VOLTAGE SPIKE PROTECTION
Metal Oxide Varistor (Line & Neutral)
