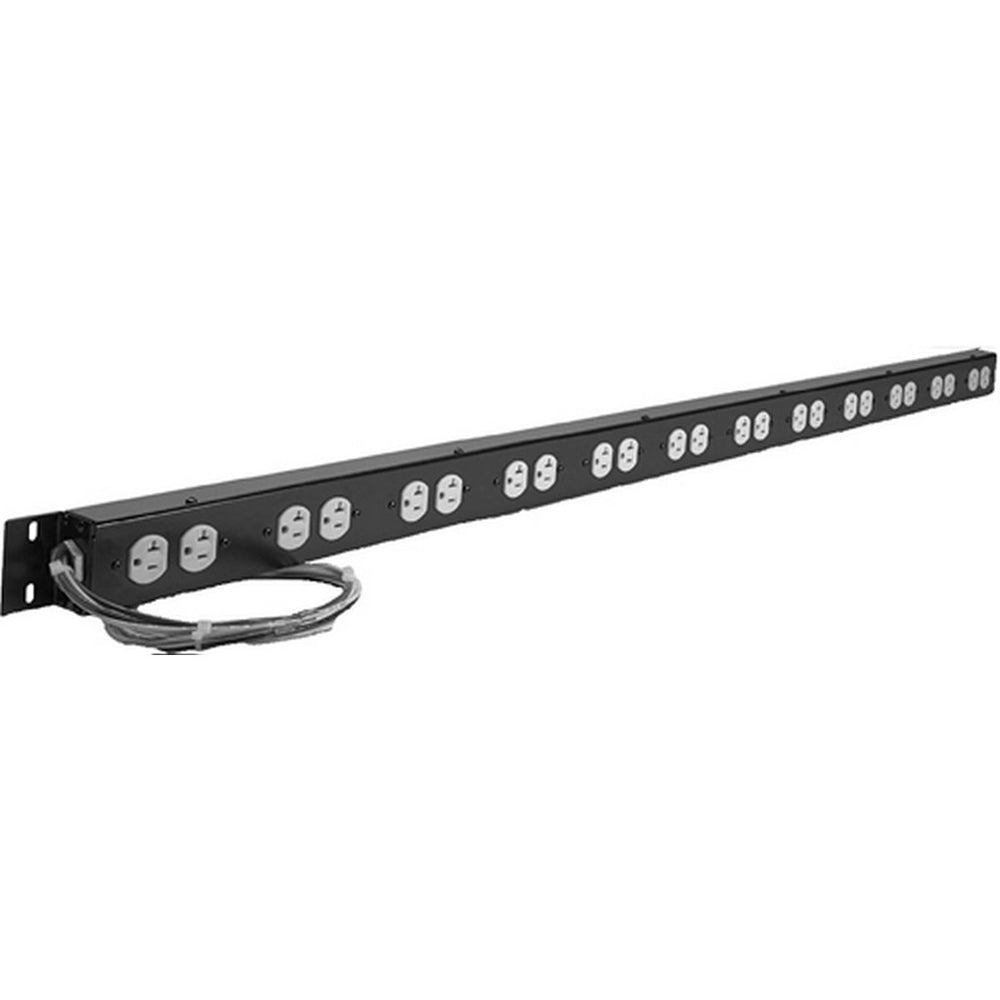

Juice Goose PD 1A PD Series 12-Outlet Power Strip

Juice Goose will assemble a multiple circuit power strip to custom specifications. PD Series products provide large savings opportunties for contractors who need high circuit density inside a single rack.

The PD1A and PD1B are smaller and less expensive than other power strips with comparable circuit capacity. Juice Goose's quality control and attention to delivery requirements means the right product gets shipped on time. Typical production time is 3 to 5 work days. Shorter lead times are possible as well.

Optional features include number and orientation of circuits, location and length of wire harness and length of conduit. An easy to use order form simplifies product feature selection and pricing.

Key Features

• Number and orientation of circuits
• Length of wire harness
• Location of wire harness
• Flexible metal conduit
• SJT power cords
• Special mounting brackets and hardware

Technical Specifications

Chassis
PD1B
30L x 2.5W x 1.62D
Weight
8 lbs
Material
Cold Rolled Steel with Textured Black Powder Coat Finish
Wire Harness Hardware
Chase Nipple or Greenfield Flex Metal Conduit
Non-metallic conduit and other hardware options are available.
AC Outlets
20 Amp NEMA 5/20R Duplex, PD1B has 6
Max. Number of Circuits
9
Wire Gauge
12 AWG Stranded; 10 AWG Stranded for 30 amp option on PD3
Type
Stranded THHN, 600 VAC, 60 Degrees C, Max
Circuit Orientation
Grouped, Alternating or Special Design
Grouped: A,A,B,B,C,C Alternating: A,B,C,A,B,C Special: See chart on Menu.
Wire Harness Location
Top or Bottom
Wire Harness Length
Any Length Specified in Feet
Conduit Length (Greenfield, Flex Metal)
Any Length Specified in Feet
Mounting Brackets Distance Between Mounting Locations
29 Standard. Optional 21 Between Top and 1 Side Mounting Point
Warranty
Three Years from Date of Manufacture
