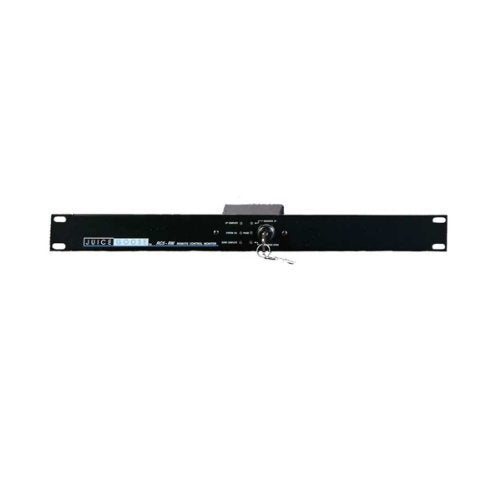

Juice Goose RC5 RM Rack Mount Key Switch Security Remote Control for CQ Products
While the CQ Series products can be remotely activated with any contact closure, Juice Goose produces RC-5 accessory line is an economical remote control and monitor device. The RC5 operates any Juice Goose CQ Series of sequenced power distribution devices.
For installations where securing the sequence controller against unauthorized operation is not an issue Juice Goose introduces the RC5-RS which provide all the functionality of the existing key switch devices, but with the convenience of a simple rotary switch control.
The RC5 requires no external power supply and connects with the same simple RJ-12 cable that is used to connect the CQ units.
Technical Specs
Chassis
RC5-RM
18 gauge steel, powder coat faceplate with back box
RC5-WM
single gang aluminum faceplate with back box
RCDM2
single space rack mount with 11 gauge mounting brackets
Dimensions
RC5-RM
1.75H x 19W x 1.5D
RC5-WM
4.5H x 2.75W x 1.5D
RCDM2
1.75H x 19W x 7.0D
Power Input, RCDM2
hard wire through strain relief on back box
Power Output, NEMA 5/20R
CQ-2000 two, CQ-2200 four
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections
RJ11 six wire phone cable, similar to CAT5
Monitor Features
monitor lights correlate to processor and relay operation
See the other Juice Goose power sequencers
CQ-1520, CQ-3000 and CQ-PD1-4
