Juice Goose RP 100 15 Amp Rackpower Series Power Monitoring Conditioning and Distribution
Juice Goose RP 100 15 Amp Rackpower Series Power Monitoring Conditi...
Free Shipping

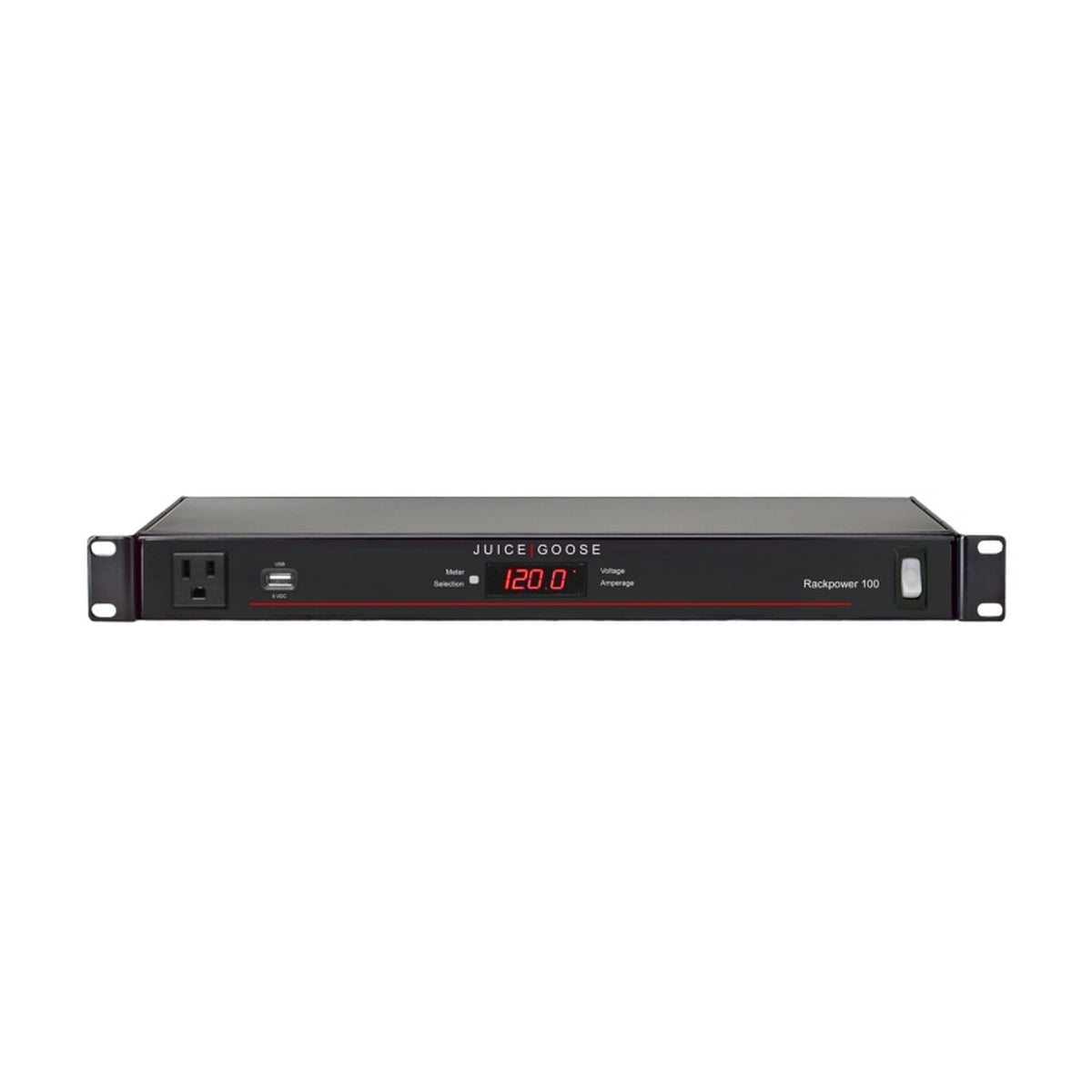

Juice Goose RP 100 15 Amp Rackpower Series Power Monitoring Conditioning and Distribution
The two function meter reports in easy to read LED numerals the status of your power supply and consumption. Toggle between volts and amps with a convenient push button on the front of the chassis. Voltage is measured to the nearest 0.10 VAC. Amperage is measured to the nearest 0.10 amperes in a range from 0.20A to 25.0A.
One USB port is provided on the front and one on the back of the chassis. These five volt DC connections are usable for utility lighting or powering accessories. Connect an inexpensive, flexible USB light fixture for lighting in the front or back of the rack. Both USB ports can also be used to charge accessories including an iPhone or iPad.
One AC outlet is located on the front. Nine are on the back. The rear outlets are rotated to accommodate wall warts and include extra generous spacing between four of them. Model RP 100-20A includes a single NEMA 5-20R, rated for a twenty amp load.
This professional grade, ten inch deep enclosure is formed from a single piece of cold rolled steel. Reinforced mounting brackets and a flush mount top complete a package that's been used to rack mount other products weighing over 200 pounds. The extra chassis depth allows easy access to the rear receptacles while mounted in a rack.
Key Features
- Power Meter.
- Power Conditioning.
- USB Ports.
- LED Rack Lights.
- AC Power Receptacles.
Technical Specs
Model
RP100-15A
Product Type
Rackpower
Current Overload Protection
15 amps with a technical current rating of 12 amps
Power Input
14/3 SJT with NEMA 5-15P
Power Output (Rotated to fit AC adapters) (All switched)
Front: One NEMA 5/15R (15 amp); Rear: Nine NEMA 5/15R (15 amp)
Input Voltage
120 VAC @ 60Hz
Transient Energy Absorption
460 joules
Peak Surge Current
12,000 amps per mode
Voltage
Nominal 120 VAC scale. Reports to nearest 0.10 volts
Amperage
From 0.25 to 25.0 amps. Reports to nearest 0.10 amps
Operating Temperature Range
-10C to +40C
Chassis
16 gauge unibody steel with 11 gauge rack mount brackets
Dimensions
1.75H x19W x 10D
Weight
12 lbs
