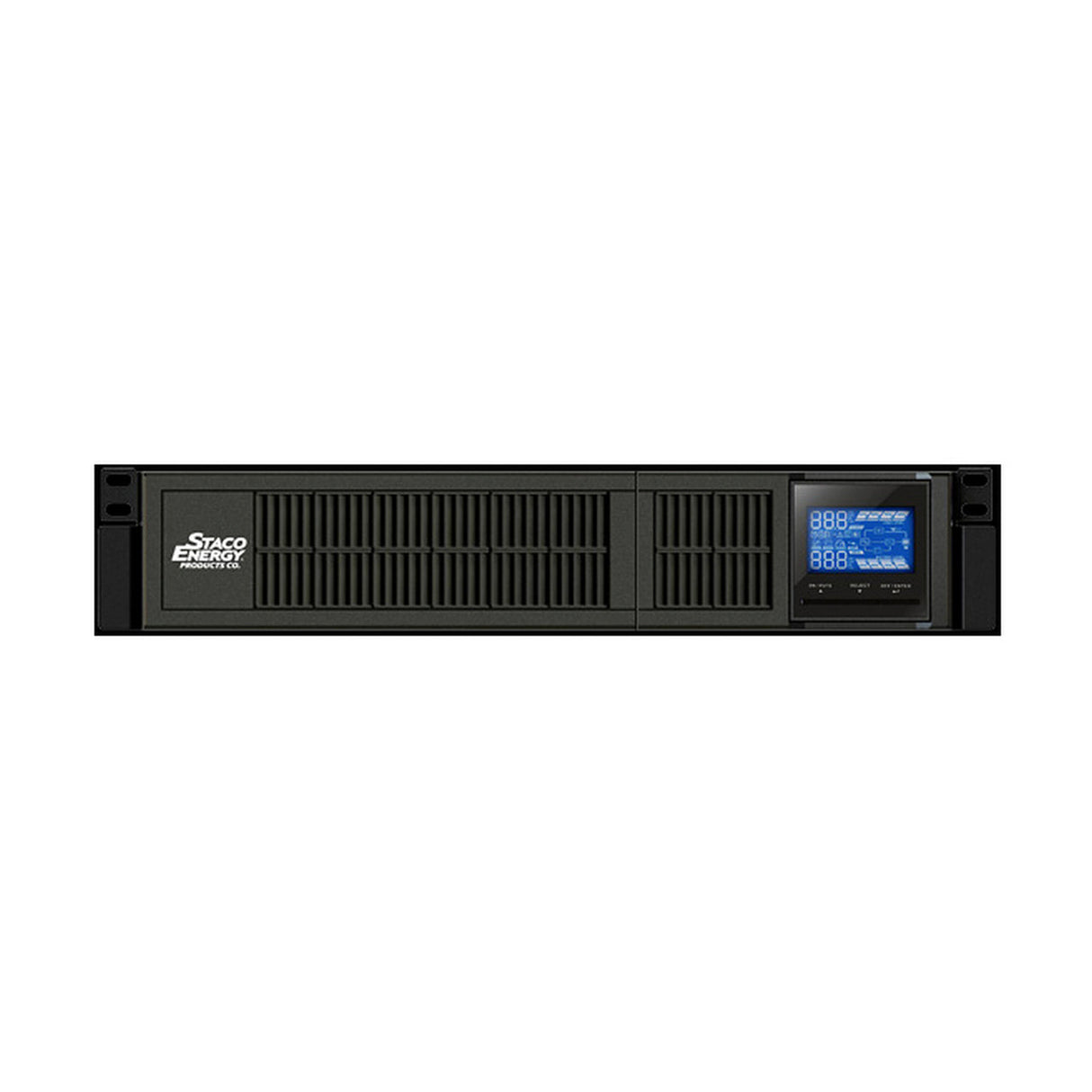

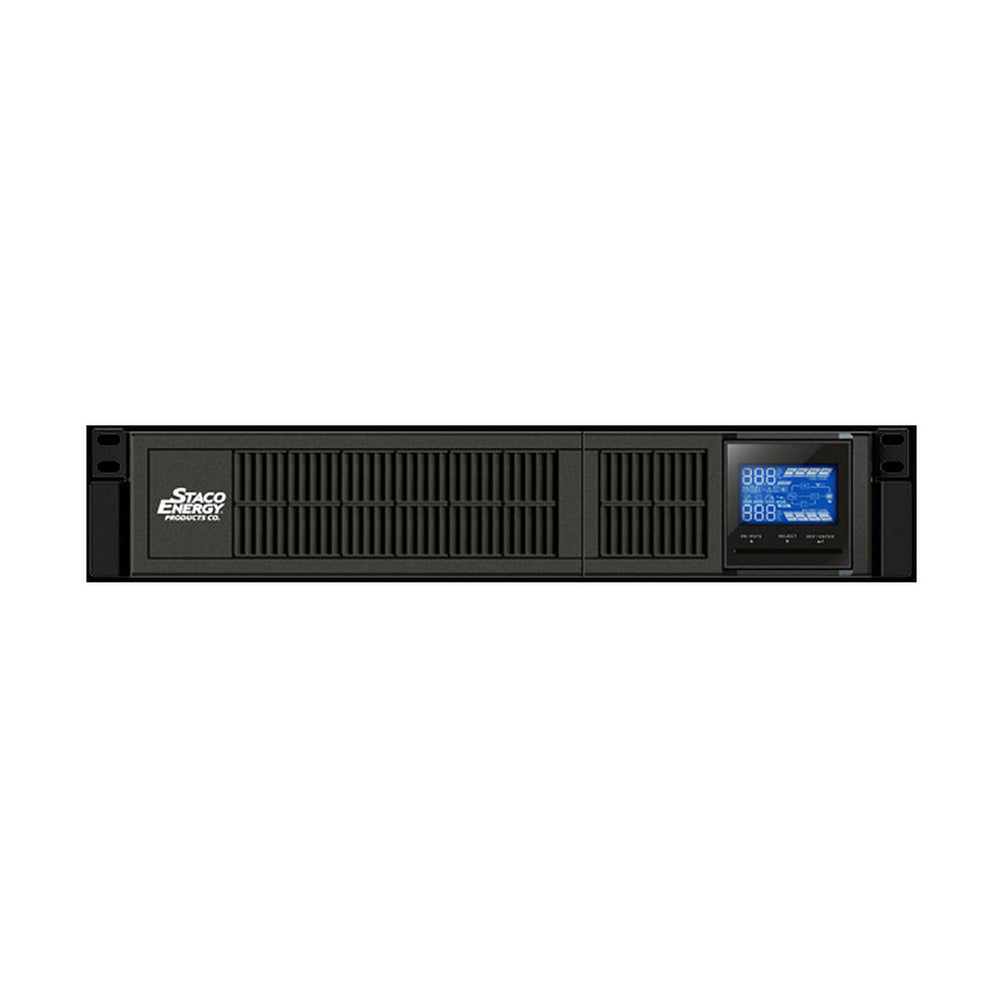

Juice Goose SCV-10001 1000VA Universal Tower Rack Uninteruptible Power Supply

The UniStar V represents the latest in single-phase technology at an affordable price. Its true on-line performance provides a constant clean, steady sine wave safeguarding the most sensitive equipment.

Key Features

• DC-start function ensures the start-up of UPS even during power outages
• Programmable receptacles offer the capability to load shed during any power interruption
• Emergency shutdown control through EPO allows users to shutdown the UPS completely in an emergency to ensure a safe operating environment
• User-friendly Plug-and-Play design
• Innovative battery management circuit

Technical Specifications

VA/ Watts
1000VA/ 900W
Internal Battery (Minutes)
2.7
Input Cord
5-15P
Output Connection
(4) 5-15R
Dimensions H" x W" x D" /
3.39" x 17.24" x 16.44" (2U) <86.2 x 438.0 x 417.5>
*Wt. lbs. / (kg)
29/ (13)
INPUT
Capacity
Rated Volts
100VAC-120VAC
Low Transfer
Low Voltage 80 VAC/70 VAC/60 VAC/55 VAC -,+ 5 % (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)
Re-Transfer
Low Voltage Re-Transfer 85 VAC/75 VAC/65 VAC/60 VAC -,+ 5 %
High Transfer
High Voltage 150 VAC -,+ 5 %
Re-Transfer
High Voltage Re-Transfer 142 VAC -,+ 5 %
Frequency Range
50Hz/ 60Hz
Power Factor
>0.99 @nominal voltage
OUTPUT
Output Voltage
100*/110*/115*/120VAC
AC Voltage Regulation
-,+ 1%
Frequency Range
47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range
50Hz -,+ 0.5% or 60Hz -,+ 0.5% (Bat. Mode)
Current Crest Ratio (CF)
5:1 (max.)
Harmonic Distortion (THDU)
< 2% (Linear load)
8% max (Battery mode before shut down)
Transfer Time
AC to DC
Zero
Inv. to Bypass
4 ms (Typical)
Waveform (Battery Mode)
Pure Sinewave
EFFICIENCY
AC Mode
86% (typical), 88% (peak) 88% (typical), 90% (peak)
Battery Mode
83% (typical), 86% (peak) 85% (typical), 88% (peak)
LCD DISPLAY
Status
Load level 0-25%, 26-50%, 51-75% and 76-100%, Low Battery and Battery Good, Programmable Management
Outlets working, UPS On-Line, UPS in Frequency Converter Mode, UPS On Bypass, Alarm Disabled Indicator and Battery Charger Working.
Readings
Input Voltage and Frequency, Output Voltage and Frequency, Battery Backup Time (hours/minutes), Fault
Indicator, Battery Voltage, Overload, and/or UPS Output is short circuited.
Control/Select Buttons
Off/Enter - Turn UPS Off, Switch LCD Message, Mode Settings, Navigation Key, On/Mute + Select Button to switch to Bypass Mode.
AUDIBLE & VISUAL ALARMS
Warning Indicators Low battery, Overload, Battery Not Connected, Overcharge, Site Wiring Fault, EPO Enabled, Over Temperature, Charger Failure, Battery Fault, Bypass Out of Range and Bypass Frequency Unstable
ENVIRONMENT (Electronics)
Operating
32degrees F (0 degrees C) to 104 degrees F (40 degrees C)
Humidity
20-90 % RH (non-condensing)
Storage
-13degrees F (-25 degrees C) to 104 degrees F (40 degrees C) BATTERIES (REFRESH Charge @ 3 months)
Noise Level
Less than 50dBA @ 1 Meter
MANAGEMENT / COMMUNICATION
Smart RS-232/USB
Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC
Optional SNMP Card
Power management from SNMP manager and web browser
Optional MODBUS Card
Communications from MODBUS
Optional AS400 Card
With DB9 or 9 Pin Connector
AGENCY
Listing UL1778/cUL UL1778/cUL UL1778/cUL UL1778/cUL UL1778/CE/cUL UL1778/CE/cUL
