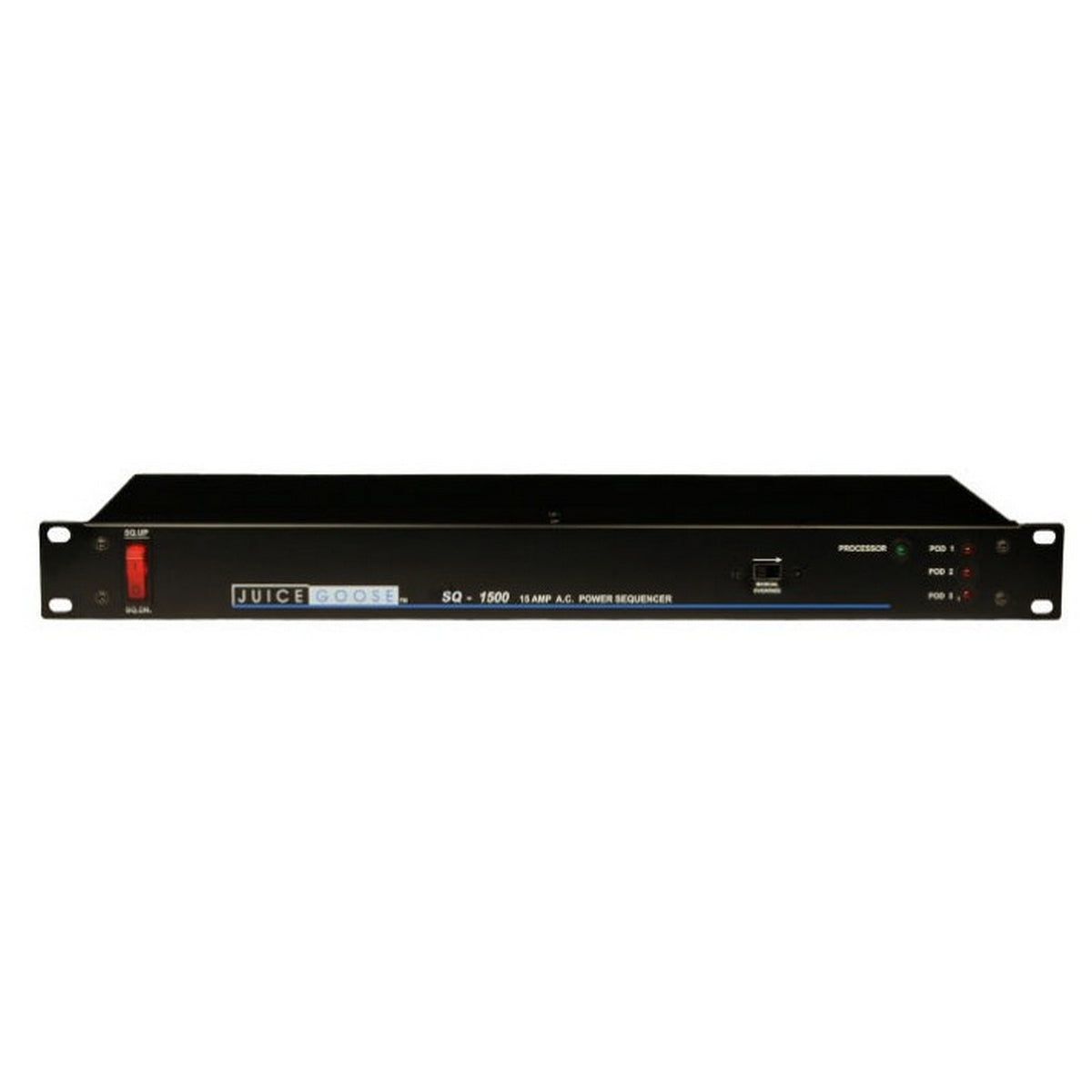

Juice Goose SQ-1500 15 AMP Solo Remote Control Sequencer

The SQ-1500 is an economical power sequencer for single rack applications when local or remote control is required. Remote activation with a latching contact closure makes installation and operation simple and efficient.

The SQ-1500 has a 15 amp capacity with 7 AC power outputs on the rear of the chassis. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection as well as line noise filtration.

This product features LEDs on the front of the chassis for real time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.

Key Features

• 3-step power sequence device can distribute AC power to as many as 7 pieces of equipment with total current requirements less than 15 amps
• Remote contact closure
• Sequence switch
• Manual On switch
• 4 LEDs for real-time monitoring

Technical Specifications

Chassis
16 gauge steel
Dimensions
1.75H x19W x 7D
Weight
10 lbs
Circuit Breaker
15A thermal on back of the chassis
Relay Current Rating
30A
Number of Sequence Events
Three
Power Input
7 foot power cord with NEMA 5/15P connector
Power Output
Six NEMA 5/15R (Sequenced) & one NEMA 5/15R (Unswitched)
Input Voltage
US standard (120 VAC @60Hz)
Signal Connections
Five position terminal for 14 to 24 AWG connection
Monitor Features
Front panel monitor LEDs
