Description

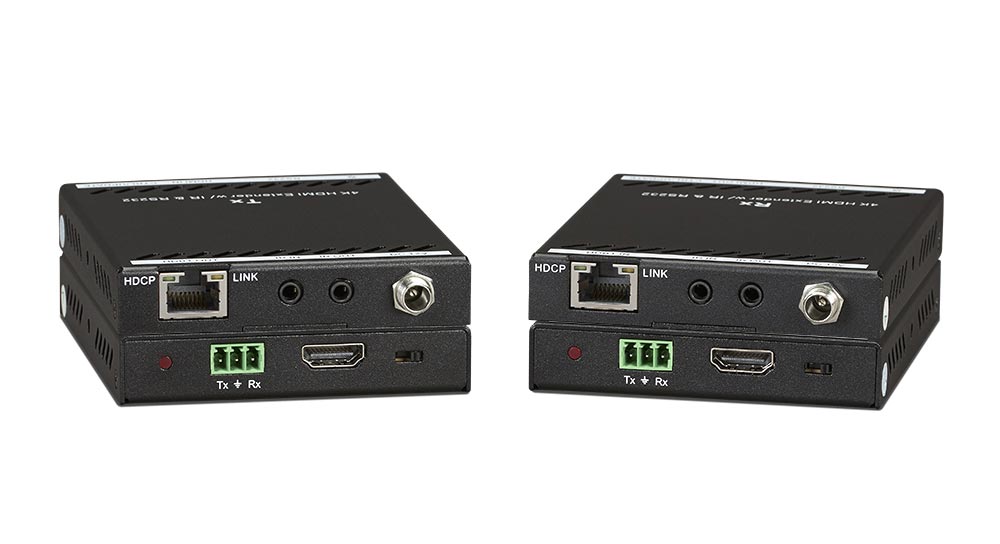

KanexPro EXT-HDBT70C 4K/30 HDMI Extender over HDBaseT
The KanexPro EXT-HDBT70C is an HDCP 2.2 compliant extender set consisting of a transmitter and receiver. It uses HDBaseT technology to transmit uncompressed, high-resolution 1080p/ 4K signals from transmitter to the receiver via a CAT5e/CAT6a cable at a distance of up to 70/40m. Moreover, the extender set supports PoC (power over cable) from either side of the sender or receiver, CEC, bi- directional RS232 & IR control.
Key Features
- Basic point-to-point HDMI extender over HDBaseT
- Extend full HD 1080p up to 70m (230ft.)
- Extend 4K/30 up to 40m (131ft.)
- Supports Ultra HD 4K@30Hz resolutions &
- Video resolutions from 1080p/60@48bit
- Bi-directional PoH (power over cable)
- HDCP 2.2 & EDID compliant
- Bandwidth 10.2 Gbps
- Bi-directional RS-232 & IR control
- Supports CEC/IR/RS-232 pass-thru
- IR input/output - embedded over CATx extension
- Dolby TrueHD & DTS Master Audio ready
- Supports uncompressed audio - LPCM
- Includes separate mounting ears
- One locking power supply included
- Backed by KanexPro 3-year parts and labor warranty
Technical Specifications
Transmitter
Input Signal
(1) HDMI, (1) IR; (1) RS232
Input Connector
(1) HDMI female; (1) 3.5mm mini jack;
(1) 3p captive screw connector
Output
(1) RJ-45, (1) IR, (1) RS232
Output Connector
(1) RJ-45; (1) 3.5mm mini jack;
(1) 3-pin captive screw connector
Audio
(1) Digital audio,transmit through HDMI audio
Receiver
Input Signal
(1) IR; (1) RJ-45; (1) RS232
Input Connector
(1) 3.5mm mini jack; (1) RJ-45; (1) 3p captive screw connector
Output
(1) HDMI
(1) IR
(1) RS232
Output Connector
(1) HDMI female
(1) 3.5mm mini jack
(1) 3-pin captive screw connector
General
Resolution Range:
640x480@60Hz~4K×2K@30Hz
Transmission Mode
HDBaseT
Transmission Distance
1080p <= 70m; 4Kx2K <= 40m
Bandwidth
10.2Gbps
HDMI Standards
Supports HDMI1.4 and HDCP2.2
Impedance: 75 OHM
Temperature: 0~ 50 C
Humidity: 10% ~ 90%
External Power Supply
Input: 100VAC~240VAC, 50/60Hz;
Output: DC 24V, 1.25A
Power Consumption
14w (max)
Dimensions (W*H*D)
4.17' x 0.60" x 3.30"
Net Weight
0.55 lbs (250g)
