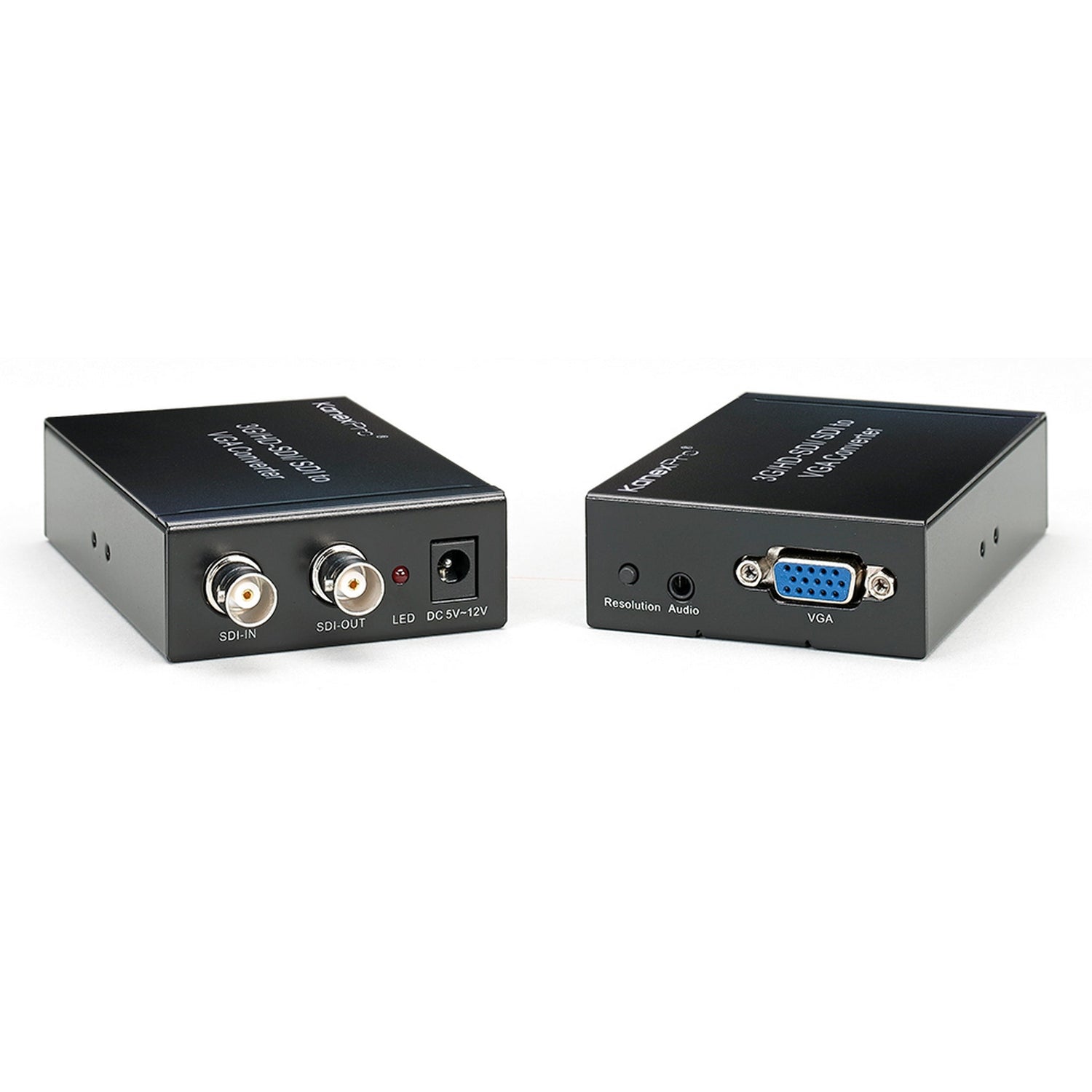

KanexPro 3G/HD‑SDI to VGA Converter with Scaling
The KanexPro EXT‑SDIVGA is a high‑performance SDI to VGA converter designed for broadcast‑quality scaling of SD, HD, and 3G‑SDI signals up to 3 Gbps. With built‑in signal re‑clocking and equalization, it supports transmission distances up to 300 m for SD and 200 m for HD. A handy front‑panel resolution button, cascading capability, and a loop‑through SDI output make this a versatile solution for mobile broadcast setups, conference rooms, and professional staging.
Compact and rugged, the EXT‑SDIVGA delivers crisp VGA outputs at resolutions up to 1920×1200 while simultaneously providing a clean SDI feed. It also offers an auxiliary 2‑channel analog audio output via a 3.5 mm jack, making it ideal for integrating legacy displays, projectors, and audio systems into modern SDI environments.
Key Features
- Converts SD/HD/3G‑SDI to VGA with scaling up to 1920×1200
- Supports signal rates up to 3 Gbps
- Built‑in signal re‑clocking and equalization
- SDI loop‑through output for local monitoring
- Front‑panel resolution switching button
- Cascadable design for multi‑unit setups
- Auxiliary analog 2‑channel audio output
- Compact and rugged aluminium chassis
Technical Specifications
- SDI Input: 1× BNC (SD/HD/3G‑SDI)
- SDI Output: 1× BNC (loop‑through)
- VGA Output: 15‑pin HD connector
- Audio Out: 3.5 mm stereo jack
- VGA Resolutions Supported: 800×600, 1024×768, 1280×720, 1440×900, 1280×1024, 1680×1050, 1600×1200, 1920×1080, 1920×1200
- SDI Resolutions Supported: 480i, 576i, 720p50/60, 1080i50/60, 1080p up to 60 Hz
- Transmission Distance: up to 300 m (SD), 200 m (HD) over RG59/coaxial
- Power: External 5–12 V DC, consumes ~5 W
- Operating Conditions: Temperature 0 to +70 °C; Humidity 10–85 % RH
- Approvals: FCC, CE, UL (converter & PSU)
- Warranty: 1 year parts & labour
Mechanical Dimensions & Weight
- Dimensions: 3.5″ (L) × 2.36″ (W) × 0.98″ (H)
- Weight: 0.57 lb (≈260 g)
In the Box
- KanexPro EXT‑SDIVGA 3G/HD/SD‑SDI to VGA Converter
- 5 V DC Power Supply Adapter
- Printed Operation Manual
