KanexPro CON-GAMECAPL HDMI 4K USB 2.0 Gaming Capture Dongle
KanexPro CON-GAMECAPL HDMI 4K USB 2.0 Gaming Capture Dongle
KanexPro CON-GAMECAPL HDMI 4K USB 2.0 Gaming Capture Dongle

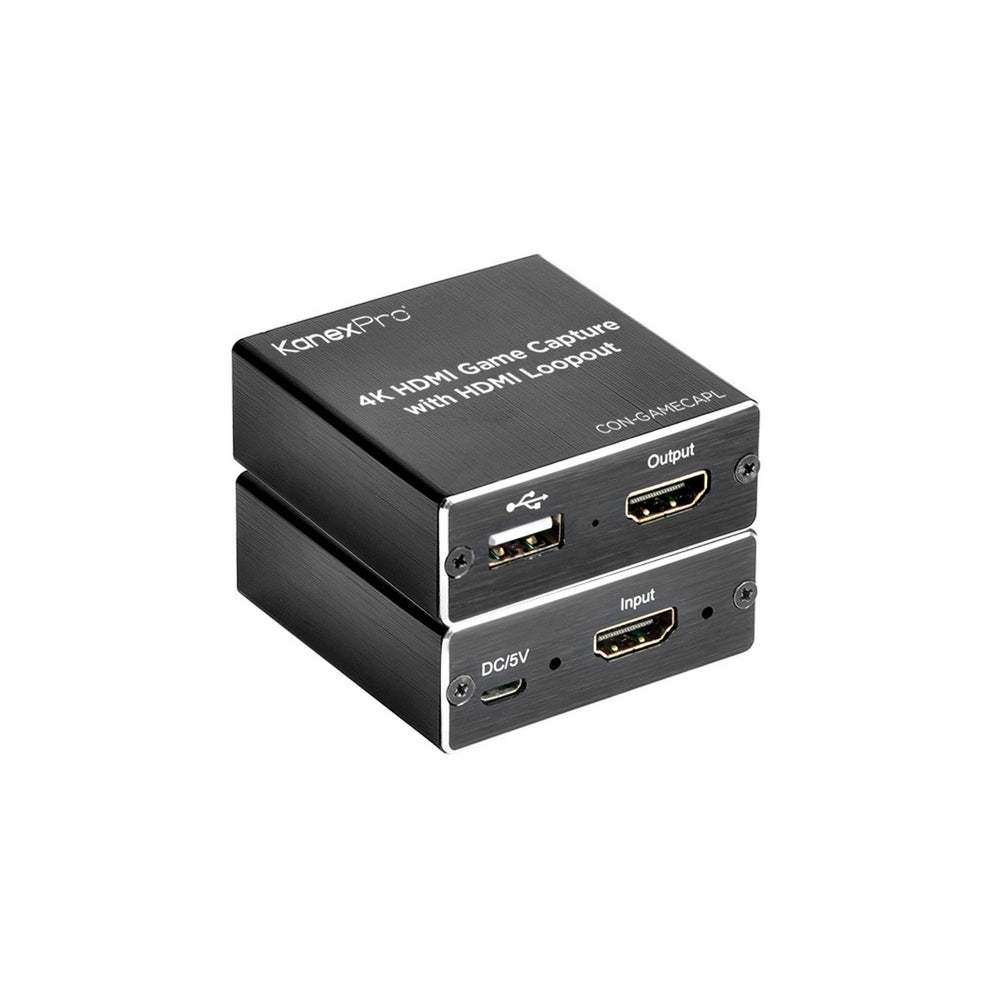

The KanexPro CON-GAMECAPL is a video capture device that can capture both HDMI video and HDMI audio, sending audio and video signals to a computer in order to preview or record video content. Suitable for video game console capture, educational recordings, medical imaging, or streaming with the use of an action camera. Featuring a Loop out port, you can connect to both a television display and a computer at the same time allowing you to both stream and play at the same time with no loss of performance.
Key Features
- Supports input max resolution 3840-2160@30Hz;
- Supports output max resolution 3840-2160@30Hz;
- Supports 8/10/12bit deep color;
- Supported by most video acquisition software, such as VLC, OBS, Amcap, etc;
- Supported by Windows, MacOS
- Conforms to USB Video and UVC standards;
- Conforms to USB Audio UAC standards;
- Self Powered, external power not required
- 3ft HDMI Cable Included
Technical Specifications
HDMI resolution
Max input can be 3840-2160@30Hz
Support video for
8/10/12bit Deep color
Video output format
YUV?JPEG
Video output resolution
Max output can be 3840-2160@30Hz
Support audio format
L-PCM
Input cable distance
15m, AWG26 HDMI High Speed cable
Max working current
0.4A/5VDC
Operating Temperature range
(-10 to +55)
Dimension (L x W x H)
64x28x13 (mm)
Weight
21.4g
