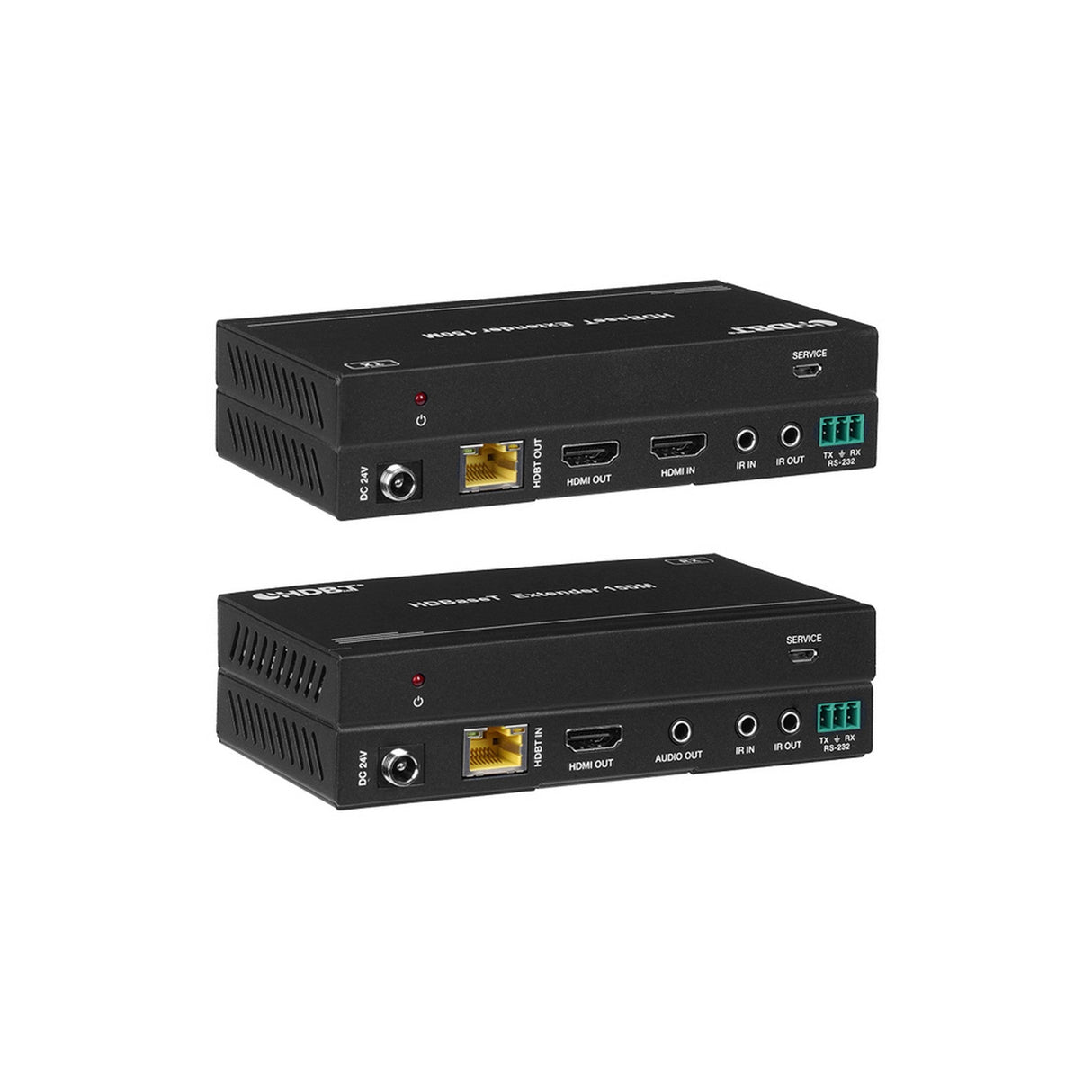

KanexPro EXT-4KHD150M2 18G Premium HDMI Extender, 150M

The KanexPro EXT-4KHD150M2 is a powerful audio video extender that allows you to extend your 4K video signal up to a distance of 150 meters (492 feet). This extender supports resolutions of up to 4K2K@60Hz 4:4:4 and has a data rate of 18Gbps, making it ideal for use in a variety of settings where high quality video is required.

In addition to its video capabilities, the EXT-4KHD150M2 also supports audio de-embedding and has a built-in two-way IR pass-through, allowing you to control your source and display from a distance.

Audio video extenders like the KanexPro EXT-4KHD150M2 can be used in a variety of settings, including churches, classrooms, and presentation halls. In a church setting, an extender like this one can be used to transmit audio and video signals from the pulpit to the front of the house, allowing worshippers to experience the service in high definition. In a classroom or presentation hall, an extender can be used to transmit video from a remote source to a display, reducing the need for complex cabling and repeaters.

Overall, the KanexPro EXT-4KHD150M2 is a versatile and reliable audio video extender that is well-suited for use in a wide range of settings. With its long range and professional performance, it is an excellent choice for anyone in need of high-quality video transmission.

Key Features

• HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
• Support 18Gbps video bandwidth
• 394ft / 120 meters for 4K2K signal;
• 492ft / 150 meters for 1080P signal
• Support one HDMI loop output on the transmitter
• Extract audio to analog stereo output on receiver
• With bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable)
• Compact design for easy and flexible installation
• Covered by KanexPro’s 3-year limited product warranty

Technical Specifications

HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
Video Bandwidth
HDMI
18 Gbps
HDMI Supported Resolutions
Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz.All HDMI 3D TV format, etc.
Color Space
RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Supported Audio Formats
100-240V, 50/60Hz, 0.3A
Transmission Distance
Max distance (4K)
394ft/120m overCAT5e/6 Max distance (1080p)
492ft / 150m over CAT5e/6
Transmitter
Inputs
1x HDMI Type A <19-pin female>
1x IR IN <3.5mm Stereo Mini-jack>
Outputs
1x HDMI Type A <19-pin female>
1x Premium Extender OUT
1x Service
1x IR OUT <3.5mm Stereo Mini-jack>
Receiver
Input Ports
1 x CAT6 IN
1x IR IN <3.5mm Stereo Mini-jack>
Output Ports
1 x HDMI Type A <19-pin female>
1 x IR OUT <3.5mm Stereo Mini-Jack>
1 x Service
1 x AUDIO OUT <3.5mm Stereo Mini-Jack>
Power Supply
Input
AC 100- 240v 50/60Hz
Output
DC24v/1.0A (locking Connector)
POC (Power over Cable) Transmitter to Receivers
Operating Environment
Operating Temperature
0 ~ 40 Degrees C
Storage Temperature
-20 ~ 60 Degrees C
Relative Humidity
20 ~ 90% RH
Mechanical Properties
Dimensions
Transmitter
140 (W) x 65 (D) x 18 (H) mm
Receiver
140 (W) x 65 (D) x 18 (H) mm
Housing
Metal Enclosure
Color
Black
Weight
Transmitter
853g
Receiver
246g
Warranty
3 Year parts and labor
