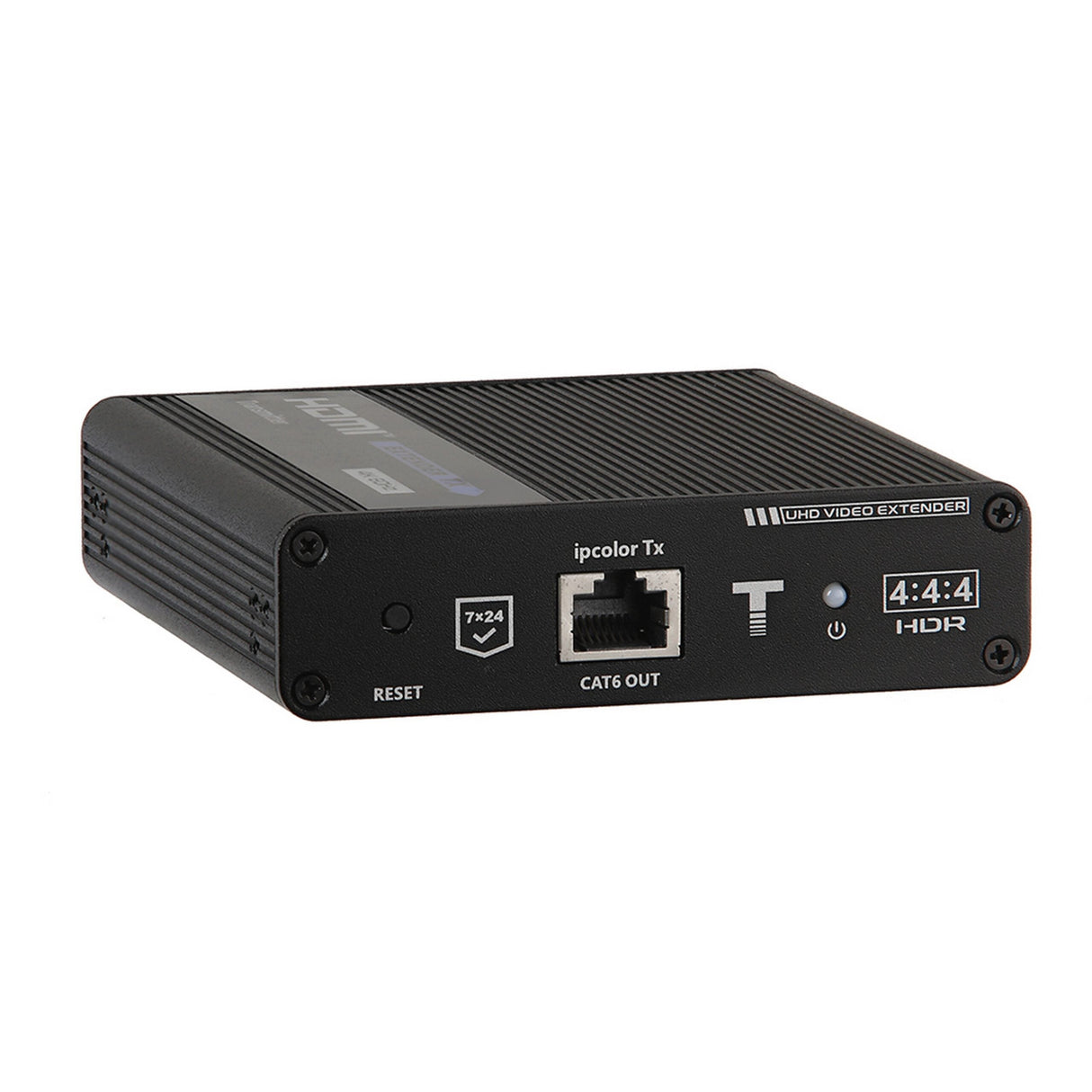

KanexPro EXT-4KHD70M 4K60Hz HDMI Extender over Cat6

The KanexPro EXT-4KHD70M HDMI extender includes a transmitter and receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution using a Cat6/6a/7 network cable. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.

Key Features

• Zero Latency
• Supports transmission distance up to 230ft. (70m)
• Supports HDR (YUV 4:4:4)
• Supports UHD 4K (4K x 2K @ 60Hz)
• IR bi-directional Pass through 20-60KHz (kits included)
• HDCP 2.2 & EDID support for multiple displays
• Simple set up with zero configuration
• Compact design for flexible installations
• Support ARC S/PDIF digital audio de-embedded outputs
• Backed by KanexPro's 3 Year limited warranty

Technical Specifications

Power Supply
Voltage/Current
DC5V-12V
Power Consumption
TX: <4W RX: <4W
HDMI Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDMI 2.2
HDMI Supported Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz,
4096x2160@24/25Hz, 1280x960, 1280x800,
1280x768, 1680x1050, 1360x768, 1366x768,
1600x900, 1024x768, 800x600
Supported Audio Formats
100-240V, 50/60Hz, 0.3A
Transmission Distance
Cat6, Cat6A, or Cat7
up to 70M at 4K resolution
Operating Environment
Working Temperature
-20~60°C
Storage Temperature
-30~70°C
Humidity (No Humidity)
-0~90%RH
Physical Properties
Dimensions
106.0(L) x 99.0(W) x 26.2(H)mm
Material
Aluminum
Color
Black
Weight
TX-210g RX-210g
Warranty
3 Year parts and labor
