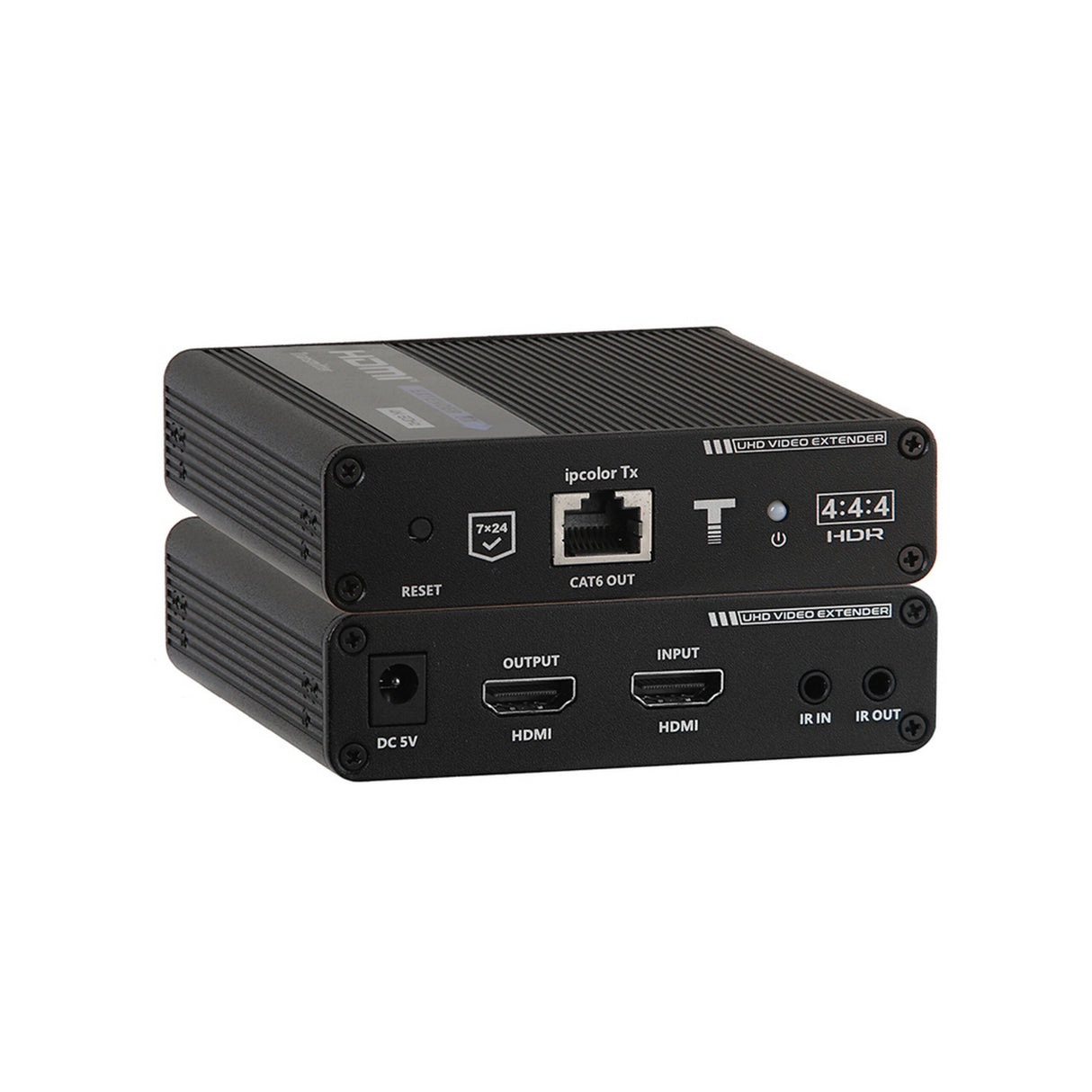

KanexPro EXT-HDMICAS70M 4K60Hz HDMI Cascading Extender Kit over Cat6

The KanexPro EXT-HDMICAS70M cascading HDMI extender includes a transmitter and receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution. The cascading feature supports up to 10 additional receivers, the system can cascade and share content to displays of varying resolutions with the built-in auto adapt feature. This is ideal in situations where the same content needs to be distributed across several displays or projectors. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.

Key Features

• Zero Latency
• Supports transmission distance up to 230ft. (70m)
• Cascade up to 10 additional receivers
• Receiver units can individually manage display resolution and EDID
• Supports HDR (YUV 4:4:4)
• Supports UHD 4K (4K x 2K @ 60Hz)
• IR bi-directional Pass through 20-60KHz (kits included)
• HDCP 2.2 & EDID support for multiple displays
• Simple set up with zero configuration
• Compact design for flexible installations
• Support ARC S/PDIF digital audio de-embedded outputs
• Backed by KanexPro's 3 Year limited warranty

Technical Specifications

Power Supply
Voltage/Current
DC5V-12V
Power Consumption
TX: <4W RX: <4W
HDMI Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDMI 2.2
HDMI Supported Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz,
4096x2160@24/25Hz, 1280x960, 1280x800,
1280x768, 1680x1050, 1360x768, 1366x768,
1600x900, 1024x768, 800x600
Supported Audio Formats:100-240V, 50/60Hz, 0.3A
Transmission Distance
Cat6, Cat6A, or Cat7: up to 70M at 4K resolution
Operating Environment
Working Temperature
-20~60°C
Storage Temperature
-30~70°C
Humidity (No Humidity)
-0~90%RH
Physical Properties
Dimensions
106.0(L) x 99.0(W) x 26.2(H)mm
Material
Aluminum
Color
Black
Weight
TX-210g RX-210g
Warranty
3 Year parts and labor
