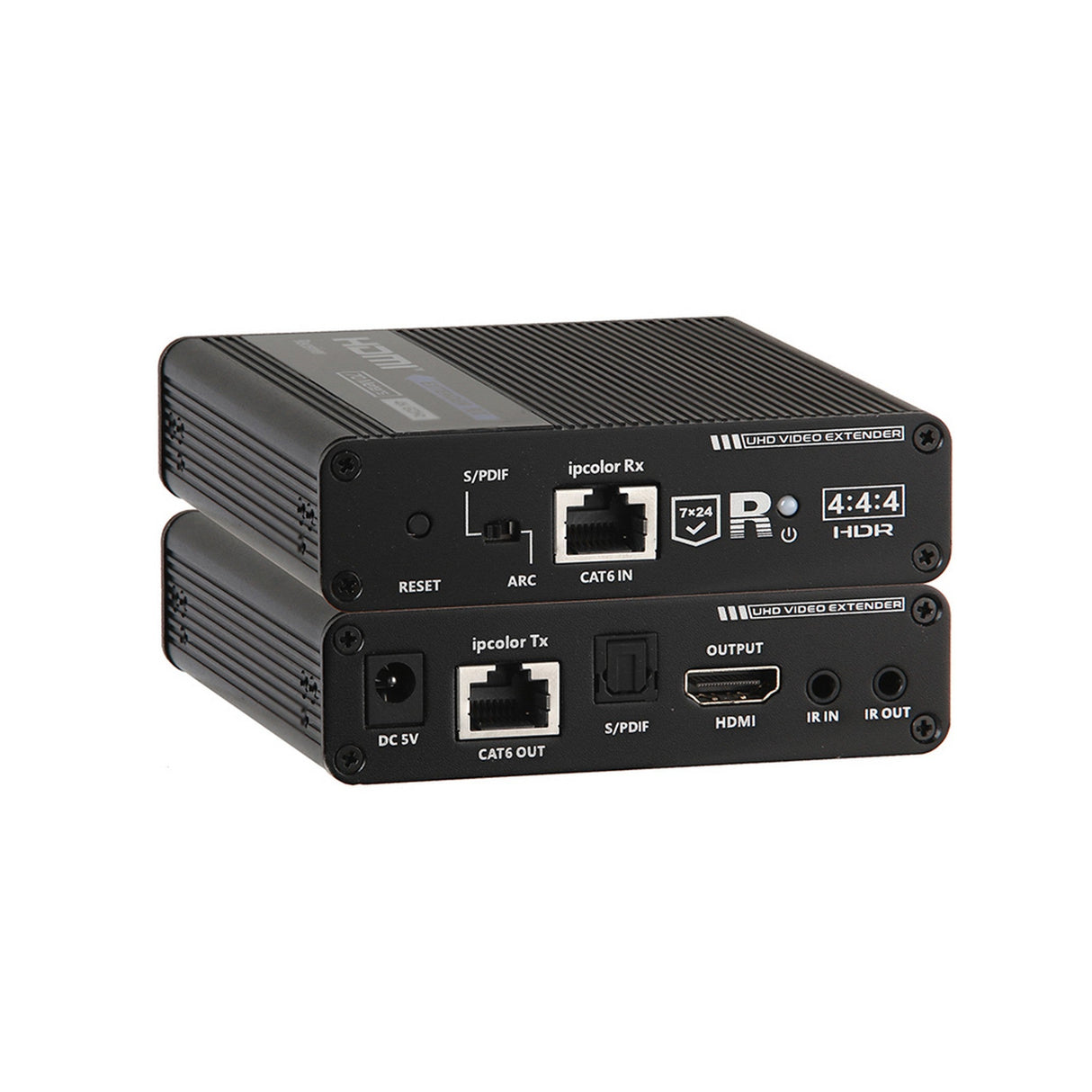

KanexPro EXT-HDMICAS70MRX 4K60Hz HDMI Cascading Extender Receiver over Cat6
The KanexPro EXT-HDMICAS70MRX cascading HDMI extender receiver units, allows for HDMI signals to be transmitted up to 70 meters at 4K resolution using a Cat6/6a/7 network cable. Supporting up to 10 additional receivers, combined with the EXT-HDMICAS70M system these receivers can cascade and share content to displays of varying resolutions with the built-in auto adapt feature. This is perfect for outdoor advertising, monitor systems, home entertainment and conference room solutions.
Key Features
- Zero Latency
- Supports transmission distance up to 230ft. (70m)
- Cascade up to 10 additional receivers
- Receiver units can individually manage display resolution and EDID
- Supports HDR (YUV 4:4:4)
- Supports UHD 4K (4K x 2K @ 60Hz)
- IR bi-directional Pass through 20-60KHz (kits included)
- HDCP 2.2 & EDID support for multiple displays
- Simple set up with zero configuration
- Compact design for flexible installations
- Support ARC S/PDIF digital audio de-embedded outputs
- Backed by KanexPro's 3 Year limited warranty
Technical Specifications
Power Supply
Voltage/Current
DC5V-12V
Power Consumption
RX: <4W
HDMI Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDMI 2.2
HDMI Supported Resolutions
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
Supported Audio Formats
100-240V, 50/60Hz, 0.3A
Transmission Distance
Cat6, Cat6A, or Cat7
up to 70M at 4K resolution
Operating Environment
Working Temperature
-20~60 Degrees C
Storage Temperature
-30~70 Degrees C
Humidity (No Humidity)
-0~90%RH
Physical Properties
Dimensions
106.0(L) x 99.0(W) x 26.2(H)mm
Material
Aluminum
Color
Black
Weight
RX-210g
Warranty
3 Year parts and labor
