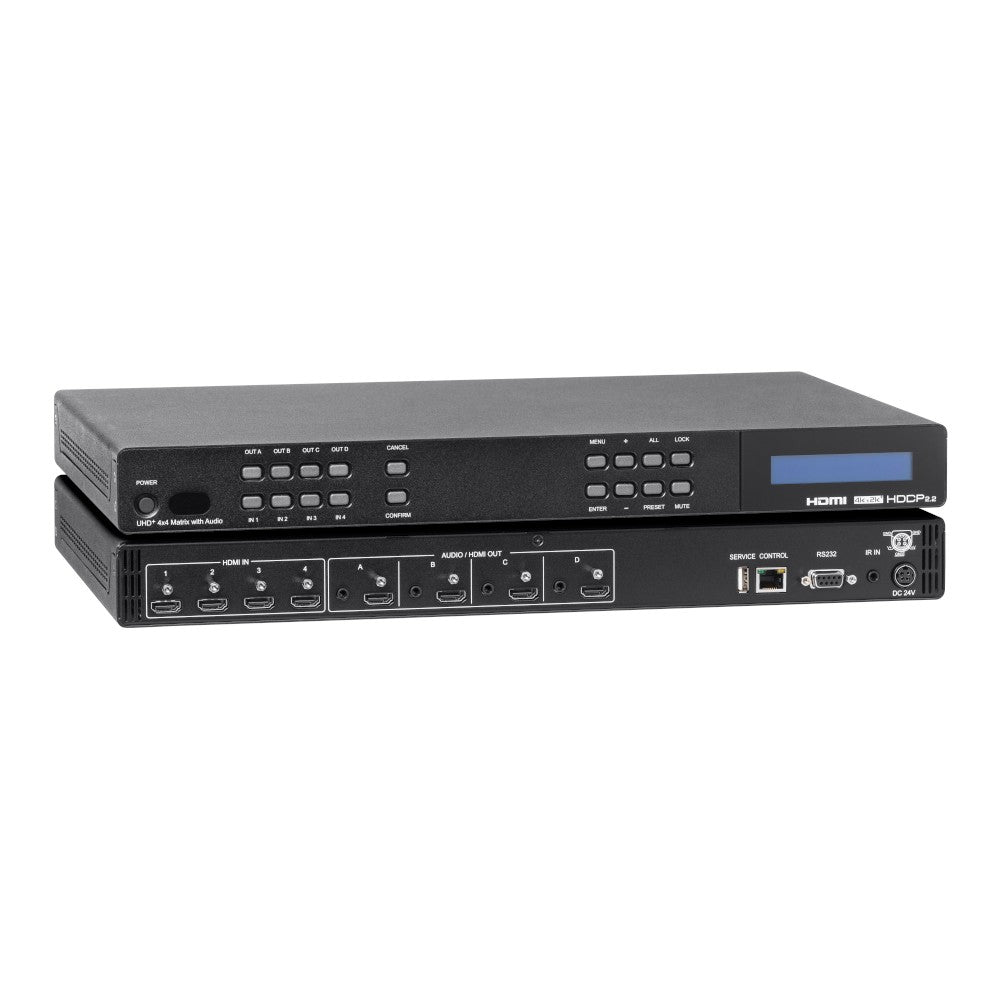

KanexPro HDMX44A-18G 4 x 4 HDMI 2.0 Matrix Switcher
The KanexPro HDMX44A-18G is a professional 4-in and 4-out HDMI matrix featuring HDCP 2.2 and the latest HDMI 2.0 specifications supporting ultra HD resolutions up to 4K @60Hz. Each HDMI port provisions full bandwidth of 18 Gbps with HDR and Dolby Vision pass-through. It can be fully controlled via RS-232, IR and Web based GUI using Ethernet where end-users can switch, control and manage the matrix right from the computer or any 3rd party touch-panel or a control system. HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25, 30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.
Key Features
- Cross-switch 4 HDMI devices to 4 HDMI displays in 4K@60Hz
- Distribute 4Kx2K@60Hz signal up to 5m over HDMI (max.)
- 4K & UHDTV resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit)
- 2 Channel analog audio outputs on each HDMI output channel
- True4K @ 4096x2160@60Hz (YUV 4:4:4, 8-bit)
- Supports Dolby Vision & HDR pass-thru
- Supports 48-bit Deep Color up to 1080p/60
- Supports LPCM 7.1 pass-thru bIt'stream
- HD bIt'stream audio formats over HDMI
- HDCP 1.4 & 2.2 Compliant
- Powerful EDID management tools with 4 slots for user-created EDIDs, and EDID bypass
- Control via front-panel buttons, IR, RS-232 & Web based GUI
- Front-panel LED's provides real-time I/O connection status
- Firmware upgrade via micro USB port
- Locking HDMI connector screws
- Universal RS-232 code compatible with any 3rd party control systems
- Internal Universal power for worldwide compatibility
- Backed by KanexPro 3 Year parts & labor warranty
Technical Specifications
Video Bandwidth
600MHz/18Gbps
Input Ports
4 x HDMI
1 x IR
1 x RS-232
1 x Mini USB (Service) 1 xRJ45 (Control)
Output Ports
4 x HDMI
4xAnalog Stereo (3.5mm)
Supported Resolutions
480i ~1080p@24/50/60Hz
4K up to 4096x2160@60Hz (YUV 4:4:4,8-bit)
PC resolutions: VGA~WUXGA
IR Frequency
30-50 kHz
Baud Rate
115200bps
Power Supply
24V DC/2.7A (US/EU standards, CE/FCC/ UL certified)
ESD Protection
Human body model
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions
17.0” x 1.7”x 6.2” (436 mm x 44 mm x 160mm W x H x D)
17.0” x 1.8” x 6.60” (436 mm x 48 mm x167.5mm W x H x D)
Weight
4.55 lbs. (2068g)
Chassis Material
Metal
Color
Black
Operating Temperature
0°C~40°C/32°F~104 F
Storage Temperature
−20°C~60°C/−4°F~140 F
Relative Humidity
20~90% RH (non-condensing)
Power Consumption
21 Watts
