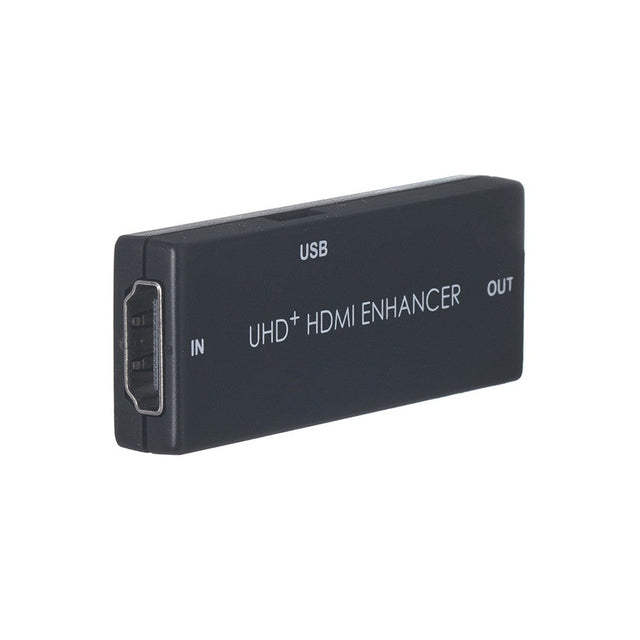

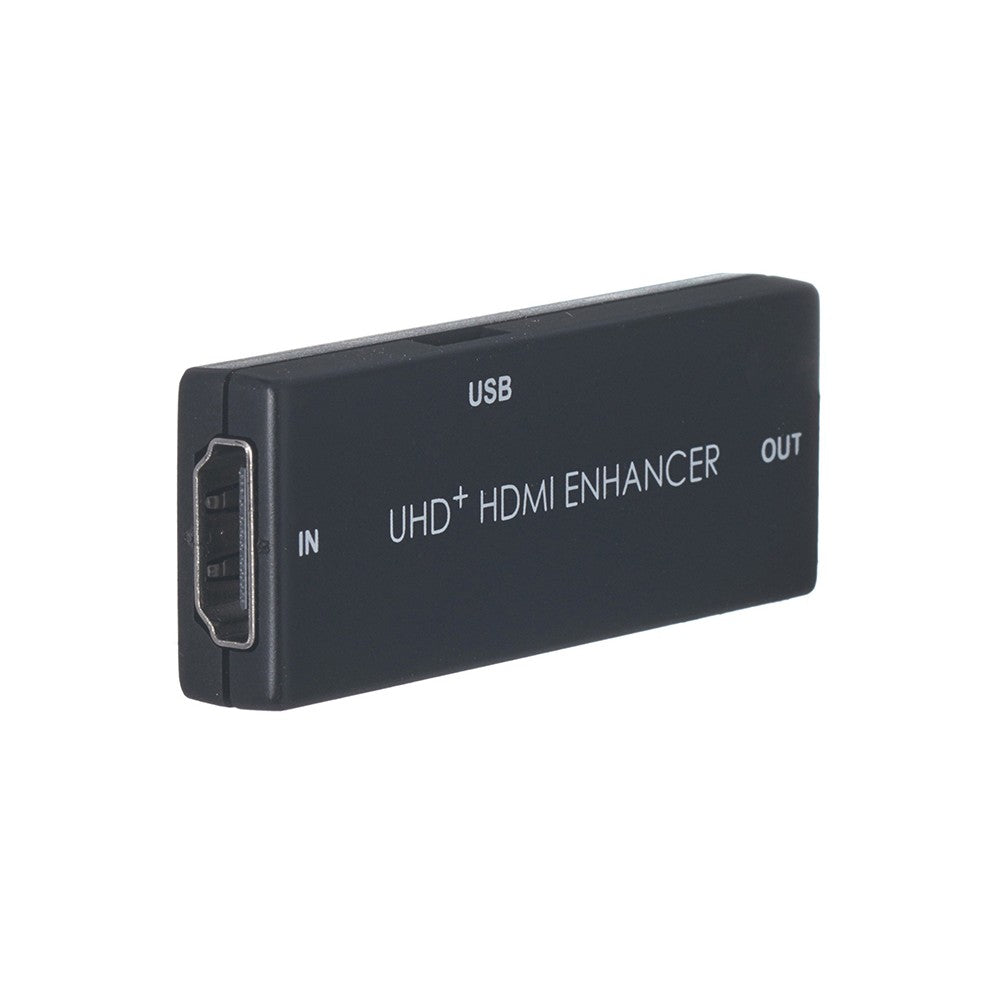

KanexPro HDRPT4K HDMI Cable Repeater
The KanexPro HDRPT4K HDMI Cable Repeater 4K UHD HDMI to HDMI Enhancer with 5V Power Injection is an advanced solution for HDMI signal extension and cascading. This unIt's designed to enhance and stabilize high-bandwidth HDMI signals for cleaner transmission over long distances using multiple HDMI cables without the need for external power. 4K signals may be extended over distances on passive HDMI cables up to distances of 16ft per cable segment with support for cascading up to 4 times. This unIt's powered by the 5V that accompanies standard HDMI signals, however insituations where additional 5V power is required (such as when cascading) it can be added with the simple connection of an external USB power source. This feature is useful when combined with active HDMI cables that need additional power to operate like AOC and HDMI cables powered with chipsets from Redmere or Spectra7 Technology. This repeater complies with the advanced HDCP 2.2 and HDMI2.0standards, as well as supporting the legacy HDCP 1.x and HDMI1.x standards. 4K UHD video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bIt'sources with HDR are fully supported. Up to8 channel LPCM digital audio as well as Bitstream and HD Bitstream audio formats are supported as well. All functionality is automatic, requiring no external controls. The SW-HDSCID4X1 is a 4x1 HDMI auto switcher with scaling built-in. The 4K scaler can be controlled by any 3rd party control system, just download the RS-232 drivers to program. The switch can also be controlled via Contact Closure. Instead of relying on the auto sensing capability of the switch you can force an input switch by sending a momentary contact to ports 1 - 4 to initiate the switch.
Key Features
- HDMI input and output supports 18Gbps 4K UHD with HDRsignals
- HDCP 1.x and 2.2compliant
- Supports UHD resolutions up to 4096x2160@60Hz (4:4:4,8-bit)
- Supports 12-bit Deep Color up to1080p@60Hz
- Supports pass-through of audio formats including LPCM (Up to8 channels), Bitstream, and HDBitstream
- Supports CEC and ARCbypass
- Retiming capability allows for clean regenerated signals for transmission.
- Supports external 5V power injection via Micro-USB power supply
- Supports up to 4 layers of cascading (5 cable segments)
Technical Specifications
HDMI Bandwidth
18Gbps
Input Ports
1xHDMI (Type-A)
OutputPorts
1xHDMI (Type-A)
Voltage Injection Port
1xUSB 2.0 (Micro-B)
Dimensions (W x H x D)
65mmx10mmx24mm
Weight
15g
Chassis Material
Plastic
Chassis Color
Black
Operating Temperature
0Ā°C - 40Ā°C/32Ā°F -104Ā°F
Storage Temperature
-20Ā°C - 60Ā°C/-4Ā°F -140Ā°F
Relative Humidity
20 - 90% RH (Non-condensing)
Power Consumption
0.75W
