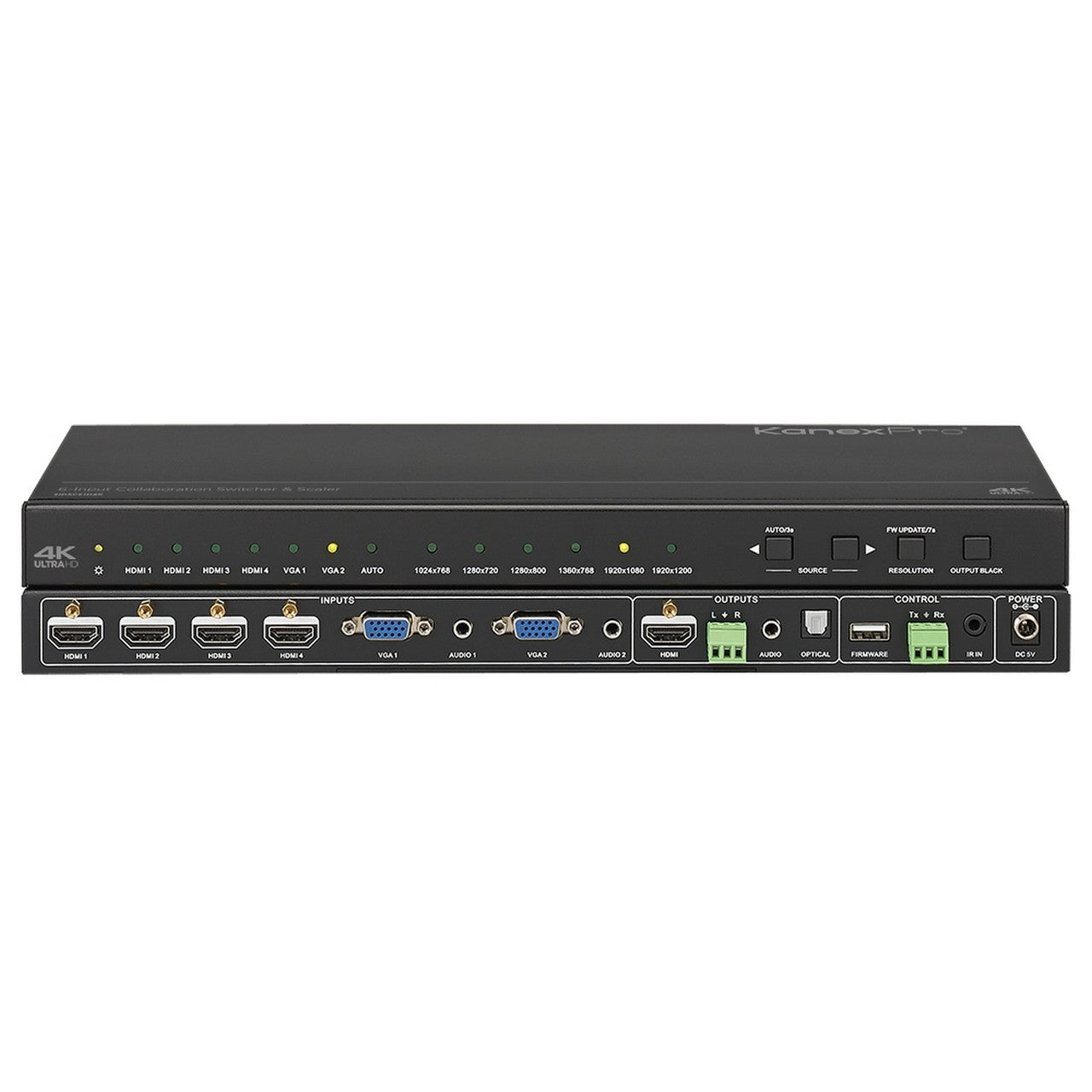

KanexPro HDSC61D-4K 6-Input Switcher & Scaler with 4K HDMI Output
HDSC61D-4K6-Input Switcher & Scaler with 4K HDMI OutputHDSC61D-4K
The KanexPro HDSC61D-4K is a 4-input HDMI, and 2-input VGA collaboration scaler ideal for switching up to six AV sources to one HDMI display. This switcher scaler also supports 4K resolutions up to 15 meters to match the latest display standards and performs a feature known as” Output Blacking” to mute the audio and video when switching between different sources, perfect for corporate boardrooms or small huddle rooms where HDMI, DisplayPort or VGA switching is needed to one display.
This 6-Input scaler-switcher also provides audio de-embedding through three de-embedded audio outputs: via 3.5mm stereo, phoenix connectors and a Toslink optical output. For control options, it can be paired virtually with any 3rd party control system using RS-232 drivers or controllable by front-panel buttons and IR remote control.
Key Features
- 6-input Collaboration Switcher & Scaler w/ HDMI output
- Fast-switching
- Selectable output resolutions up to 4K UHD
- Send 4K signals up to 15 meters
- Audio & video mute function for presentation mode
- Auto-switching capable
- VGA video also supports: C-video & YPbPr
- Audio De-embedding via TOSLINK & stereo audio
- Built-in EDID management
- Controllable via IR, front-panel, & RS-232
- Supports CEC & HDCP 1.4 compliant
- USB port for firmware update
- Locking HDMI & power supplies
- Supports power-off memory function
- Compact design for flexible installation
- Includes mounting kits
- Note: The scaling funciton will only work on VGA source devices from the input side, and will not handle any upscaling from HDMI/DVI inputs.
Technical Specifications
Video Input
Input: 4 HDMI, 2 VGA
Input Connector: 4 female HDMI, 2 female VGA (15 pin)
Video Signal: HDMI/ DVI/ VGA
Video Output
Output: 4 HDMI, 2 VGA
Output Connector: 4 female HDMI, 2 female VGA (15 pin)
Video Signal: HDMI/ DVI/ VGA
IR Input
Input: 1 IR IN
Input Connector: 3.5mm mini jack
IR Output
Output: 1 IR OUT
Output Connector: 3.5mm mini jack
Resolution range:
HDMI: up to 4K
VGA: 1024x768, 1280x720, 1280x800, 1920x1080, 1600x1200, 1920x1200
Maximum Pixel Clock: 165MHz
Bandwidth HDMI: 10.2 Gbps
Output: 75 Ohms
Input/Output Level: 0.5V~2.0Vp-p
Audio Input
Input: Dual-mono stereo, audio for VGA , 2 Dual-mono stereo
Input Connector: 3.5mm stereo jack
Input Impedance: > 10kO
Audio output
Output: 1 Dual- mono analog audio, 1 Stereo audio, 1 Optical audio
Output Connector: 1 captive screw, 1 3.5mm jack, 1 Optical TOSLINK
Output Impedance: 50KO
