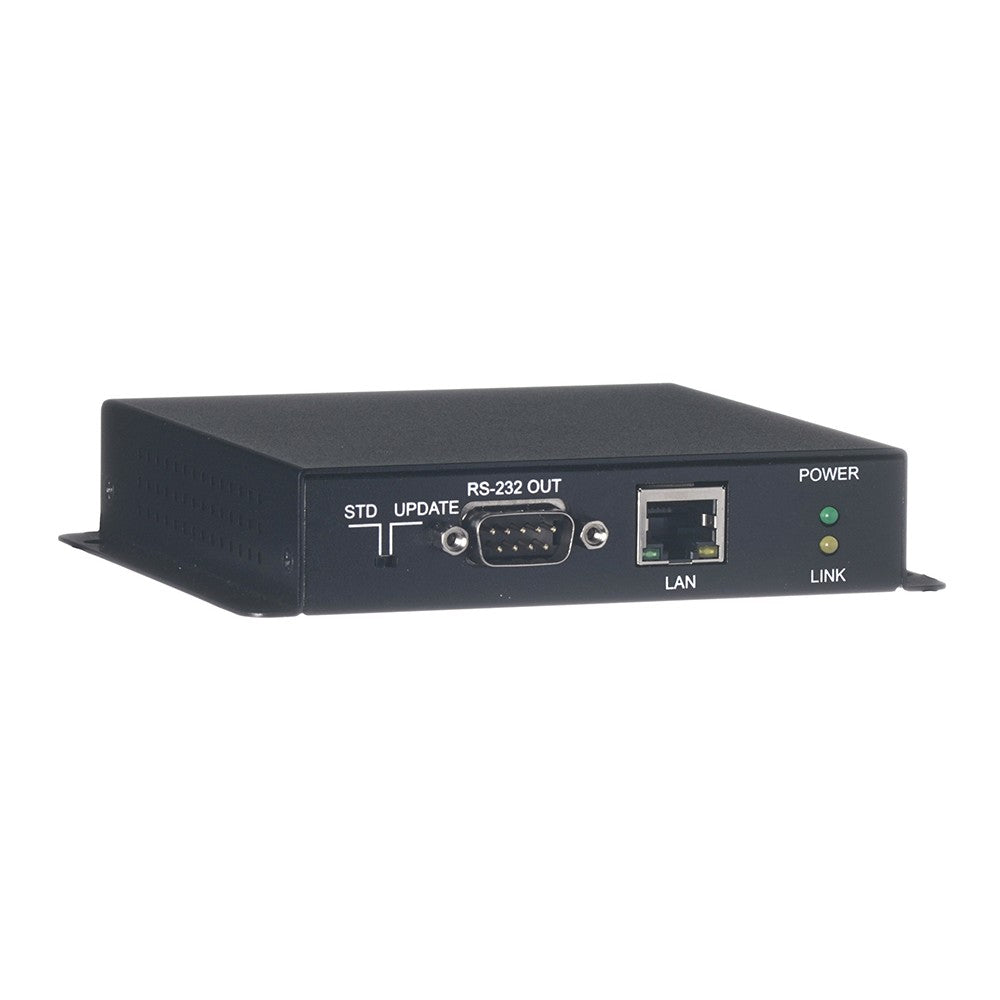

KanexPro HDSC92D-4KRX Output Extender for HDSC92D-4K Scaler

The KanexPro HDSC92D-4KRX is an HDMI over single Cat5e/6 Receiver can receive uncompressed audio/video and IP data over a single run of CAT5e/6/ cable at a distance up to 100 meters. The Receiver features pass-through of control through the built-in RS-232and IR ports and a bi-directional LAN connection which allows for integrators to pass data through the extender. The receiver can be powered by the PoE 48V power which can be supplied by a POE injector or by the Transmission device. This unit has been specifically designed to operate with the KanexPro HDSC92D-4K Scaler system, or can be used as a stand-alone extender when combined with the KanexPro HDSC92D-4KTX transmitter.

Key Features

• HDMI with 3D, 4K2K support, HDMI & DVI Compliant
• Supports CEC by pass
• Simultaneous reception of uncompressed data over a single100m/328ftCAT5e/6/6acable
• HDMI, LAN, PoE & Control (IR &RS-2232)
• Supports resolution up to 4K2K@50/60 & YUV_420 and21:9
• Supports standard 48V from Transmitter to Receiver
• Supports HDMI Output cable distance up to 5m at 4K2K@50/60& YUV_420
• Backed by KanexPro 3 -Year Parts & Labor Warranty

Technical Specifications

Video Bandwidth
340MHz /10.2Gbps
Inputs
1 xCAT5e/6/7
1 x IR Extender
Outputs
1 xHDMI
1 xRS-232
1 X IR Blaster
1 xLAN
HDMI I/O Resolution
HD: 480i~4K2K@24/25/30/50/60 &YUV_420
PC: VGA - WUXGA (RB)
HDMI I/O Cable Distance
In: 10m/1080p@8-bit or 12-bit and 5m@4K2K
Out: 10m/1080p@8-bit,5m/1080p@12-bitand5m@4K2K
CAT5e/6/7 I/O Cable Distance
Up to100m
IR Frequency
30-50 kHz
