KanexPro MOD-IN-CAT6-4K 4-Input HDBaseT Card for Modular Matrix with 4K
KanexPro MOD-IN-CAT6-4K 4-Input HDBaseT Card for Modular Matrix wit...
Free Shipping
KanexPro MOD-IN-CAT6-4K 4-Input HDBaseT Card for Modular Matrix with 4K

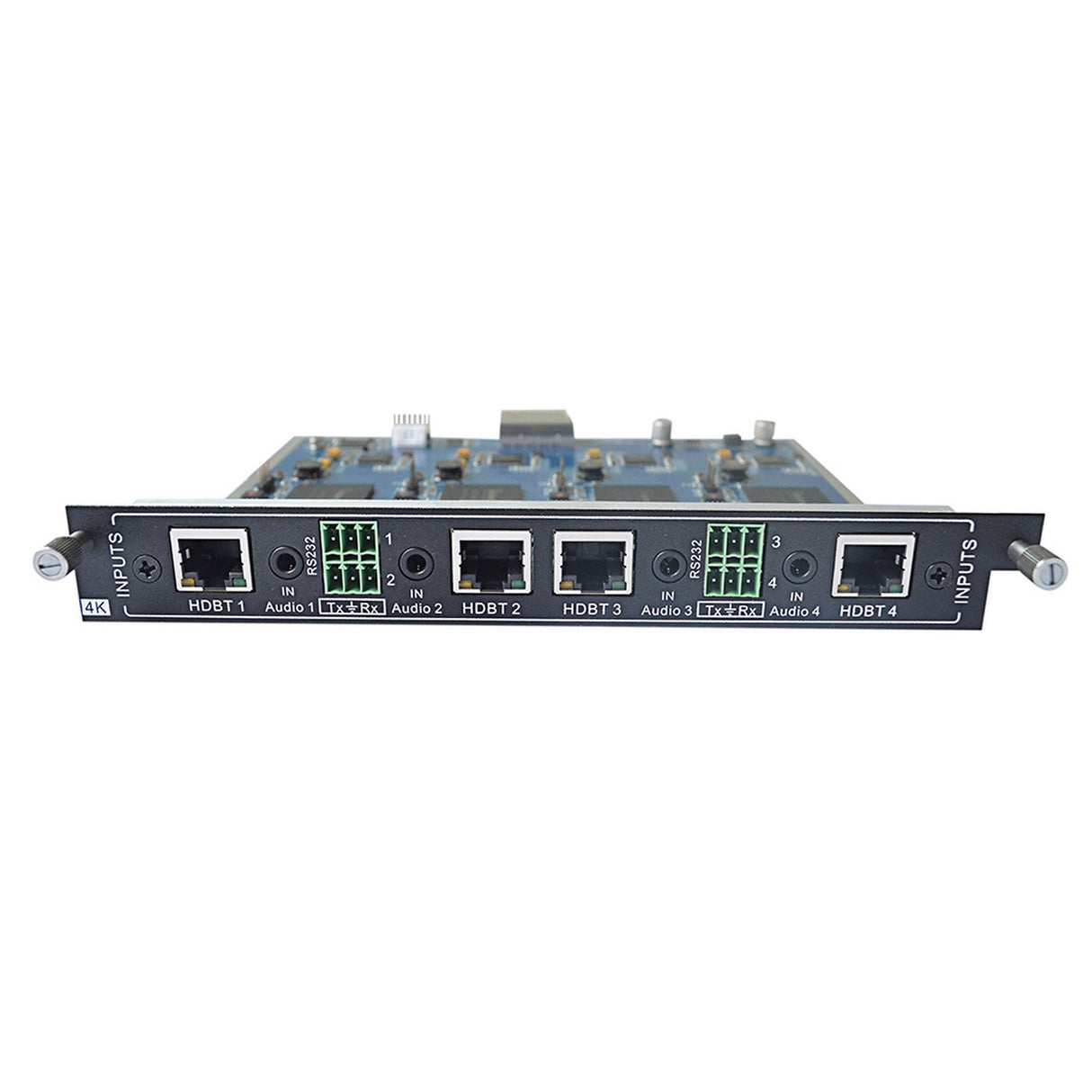

The KanexPro MOD-IN-CAT6-4K is a 4K compliant, 4-Input card designed to work with the HDMMX Modular matrix switchers. It connects sources from remote locations, from up to 230 feet (70m) away, to be routed to any of the available outputs utilizing standard Cat 5e/6 cable with a TIA-568B.
The RS232 connections for each input allow bi-directional control signals at the equipment rack to interface with source equipment when used with the HDBASE70POET transmitters.
Key Features
- 4-Input HDBaseT card for MMX modular matrix switchers
- Provisions 4K UHD resolutions
- Supported resolutions: 4Kx2K, 1920x1200, 1080p & 3D
- Extend up to 230 feet (70m) over single CAT6 Shielded Twisted Pair
- High bandwidth up to 10.2 Gbps
- Built-in audio embedding
- Built-in EDID management
- Supports DVI/ HDMI signals
- Bi-directional RS-232 control
- HDCP 1.4 compliant
- Supports HDBaseT Specifications; HDMI and HDCP compliance
- Can be used with HDBASE70POET Transmitter Extender
Technical Specifications
I/O Connections
HDBaseT Port
Four (4) 8P8C port (Shielded RJ45)
Audio In
Four (4) 3.5 mm TRS
RS232
Four (4) 3 pole Phoenix Connectors
Control
RS232 pass though; RS232 port ID selectable for cascading;
Supported Audio, Video and Control
Maximum Video Compatibility at 70 m
Aluminum chassis
Maximum Video Compatibility at 40 m
Standard Rack size, provide removable ears for mounting under table, or on wall
Video Compliance
HDMI and HDCP
Embedded Audio
Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
IR Carrier Frequency Range
33-55kHz at 5 volts
RS232 Baud Rate
Up to 115200 baud
HDBaseT Signal Characteristics
Maximum Distance
230 feet (70 m)
Cable Requirements
Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
Bandwidth
10.2Gbps
Gain
0 dB - 10 dB at 100 MHz
Resolution Range
800x600 - 1920x1200, 4Kx2K
Signal to Noise Ratio (SNR)
> 70 dB at 100 MHz over 100 m
Return Loss
<-30 dB at 5 KHz
Total Harmonic Distortion (THD)
< 0.005% at 1 KHz
Min-Max Signal Level
< 0.3 V - 1.45 Vp-p
Differential Phase Error
Ā±10Ā° at 135 MHz over 100 m
Chassis and Environmental
Construction
Thumbscrew card with keyed black metal plate
Shipping Weight
0.43 kg (0.95 lbs.)
Operating Temperature
0 Degrees to +40 Degrees C (+32 Degrees to +104 Degrees F)
Operating Humidity
20% to 90%, non-condensing
Other
Warranty
3 years Parts & Labor
Matrix Switcher Compatibility
HDMMX88-4K, HDMMX1616-4K, HDMMX3232-4K, HDMMX6464-4K
HDBaseT Transmitter (A/V and Control) Compatibility
HDBASE7OPOET
