KanexPro MOD-OUT-FIBER 4-Output Fiber Card to Modular Matrix with 4K

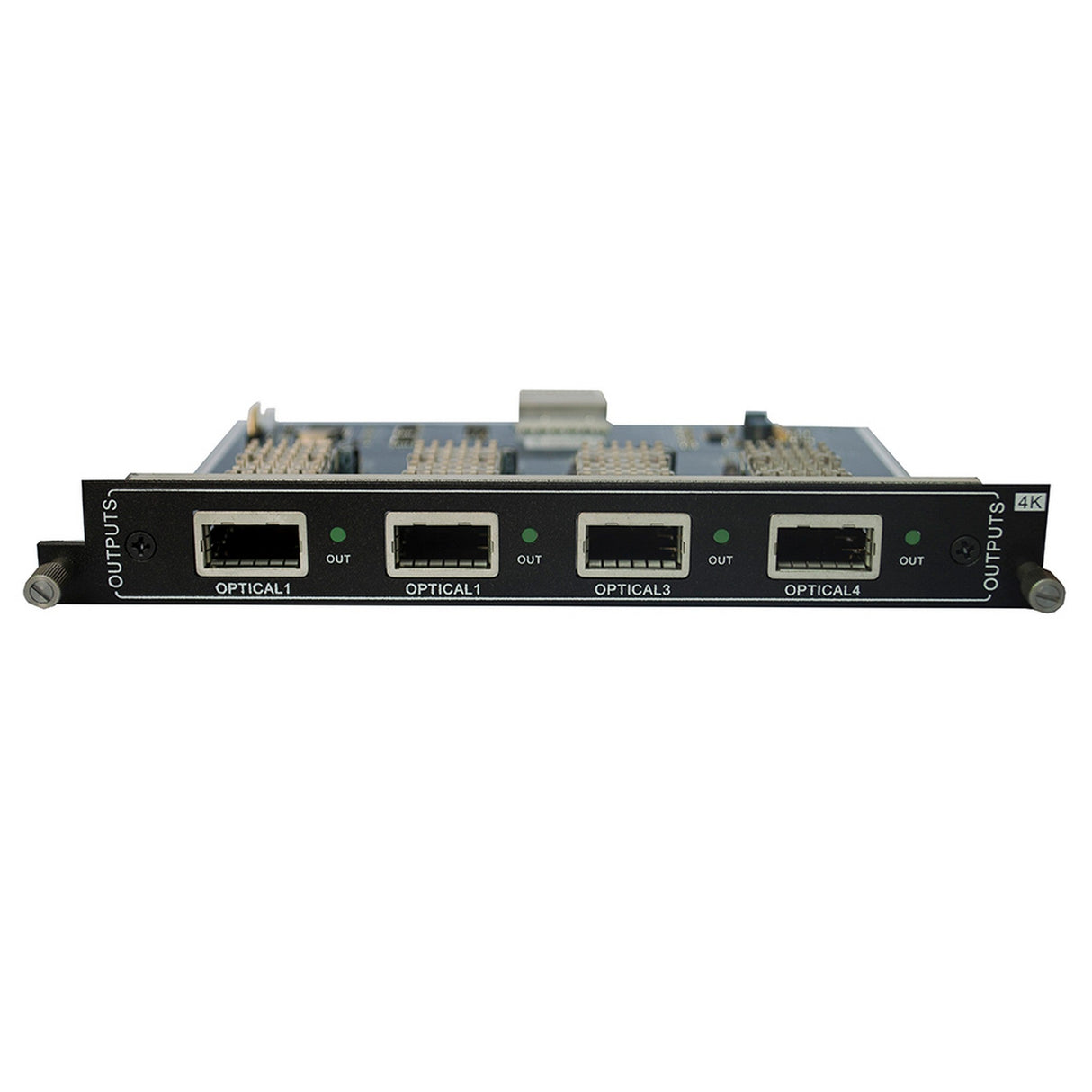

The KanexPro MOD-OUT-FIBER is a 4-Output fiber optic card designed to connect four remote displays to the HDMMX Modular matrix switchers. It'supports resolutions ranging from 1920x1200, 1080p to 4Kx2K. This HDCP compliant, fiber output card is compatible with single-mode and multi-mode extending to greater distances.
Key Features
- 4-Output Fiber Optic card with 4K
- Bandwidth up to 10.2 Gbps
- Transmission distance over Single mode fiber - up to 1.2 miles (2 Km)
- Transmission distance over Multimode fiber - up to 1000feet (300 meters)
- Supported HD resolutions: 4Kx2K, 1080p, 1920x1200 & 3D
- Supports DVI/ HDMI signals
- HDCP compliant
- Thumbscrew design - easily integrates to the HDMMX series
Technical Specifications
Output
4 Fiber Optica ports (SPF Fiber Optical Connector)
Fiber Type
Multi-mode
Data Rate
10.2 Gbps
Data Type
8bit, 10bit, 12bit
Connector
LC connector
Resolution
Up to 4Kx2K, 1920x1080/60 & 1920x1200
Transmission Distance
300m (OM3 Multi-Mode Fiber Cable)
Operating Temperature
0~55 C
Reference Humidity
10%~90%
