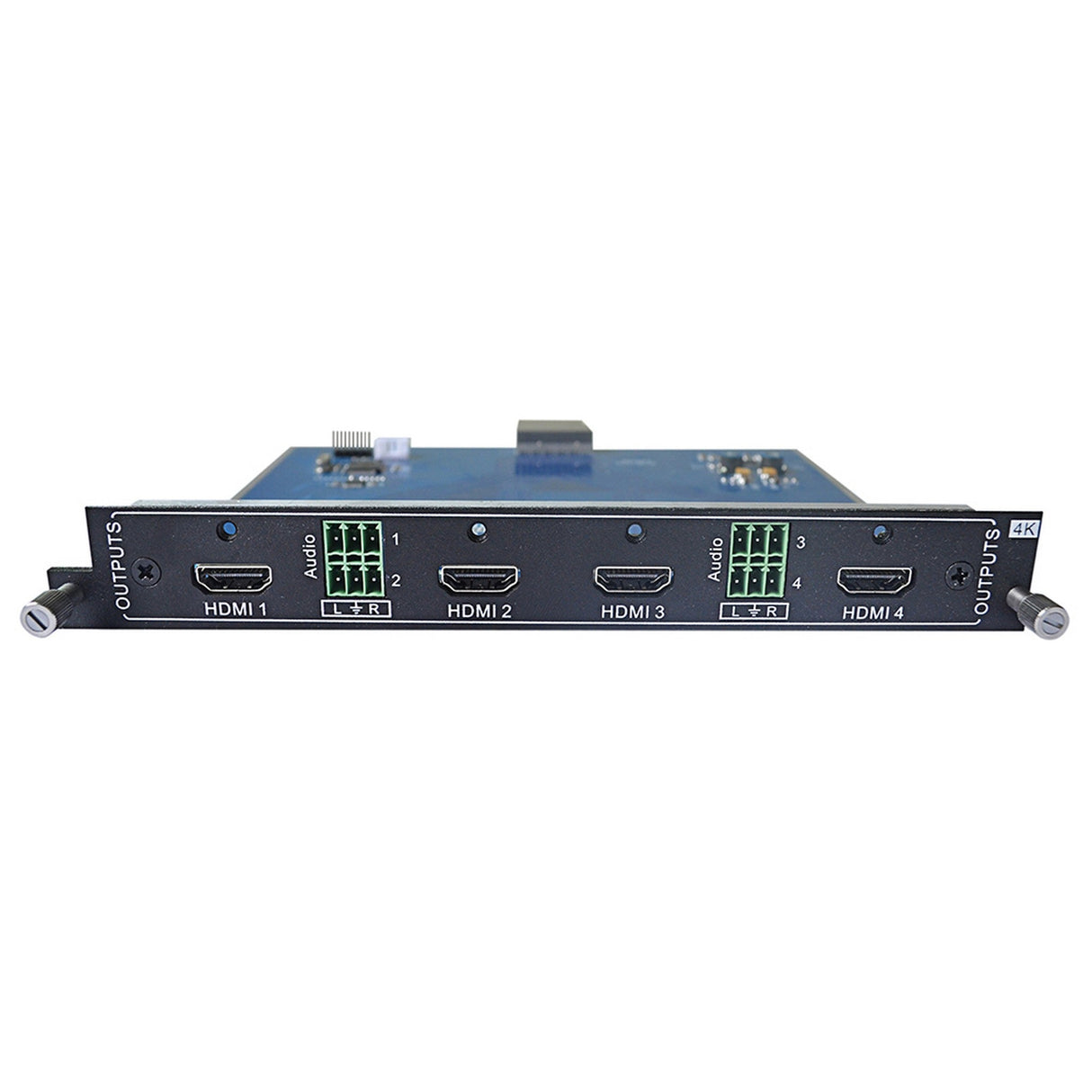

KanexPro MOD-OUT-HDTV-4K 4-Output HDMI Card for Modular Matrix with 4K
The KanexPro MOD-OUT-HDTV-4K is a 4K compliant, 4-Output card with analog audio de-embedder designed to work with the outputs of the HDMMX Modular matrix switchers. HDMI outputs provide UHD resolutions including 4K, 3D and up to 48-bit Deep Color at 1080p/60. The output card has the ability to de-embed analog audio from the HDMI and external audio can be supplied using the phoenix terminal blocks.
The output card also features advanced EDID management that ensures seamless video and audio for maximum interoperability with a wide range of sources.
Key Features
- 4-Output HDMI card
- Provisions 4K UHD resolutions
- Supported resolutions: 4Kx2K, 1920x1200, 1080p & 3D
- Stereo analog audio de-embedding on each output
- High bandwidth up to 10.2 Gbps
- Built-in HDCP internal management
- Built-in EDID & DDC management
- Up to 48-bit Deep Color & x.v color support
- Supports 7.1 Dolby Digital, True HD, DTS-HD
- Plug & play, easily integrates to the HDMMX series
Technical Specifications
I/O Connections
HDMI Output Four (4) HDMI Type A Receptacle Connector
Analog Audio out - Four (4) 3 pole Phoenix Connectors
Audio / Video
Maximum Video Compatibility
Deep Color 48/36/30/24 Bit at 1080p, 3D
Video Compliance HDMI and HDCP (Selectable)
HDMI Audio Compatibility
Up to PCM 8 channel
Dolby Digital TrueHD, and DTS-HD Master Audio
Analog to Digital Conversion Audio Format
PCM 2 Channel 48kHz
Analog Audio
Performance per Channel Unbalanced Stereo Audio, -10 dBV nominal
Pinout (Left to Right) Left (+), Ground, right (+)
Input Impedance
>10kO
Frequency Response
20 Hz to 20 kHz, ±0.5 dB
THD + Noise
< 0.002% from 20 Hz to 20 kHz
HDMI Parameters
Maximum Distance
5 m (pre-made cable)
Bandwidth
340 MHz (10.2 Gbps)
Gain
0 dB
Resolution Range
Up to 4K & 1920x1200
Crosstalk
< -50 dB at 5 KHz
Input Level
TMDS 2.9V/3.3V
Chassis & Environmental Construction
Plug-in card with keyed black metal plate
Shipping Weight
0.45 kg (1 lbs.)
Operating Temperature
0 Degrees to +40 Degrees C (+32 Degrees to +104 Degrees F)
Operating Humidity
20% to 90%, non-condensing
Storage Temperature
-10 Degrees to +60 Degrees C (+14 Degrees to +140 Degrees F)
Storage Humidity
20% to 90%, non-condensing
