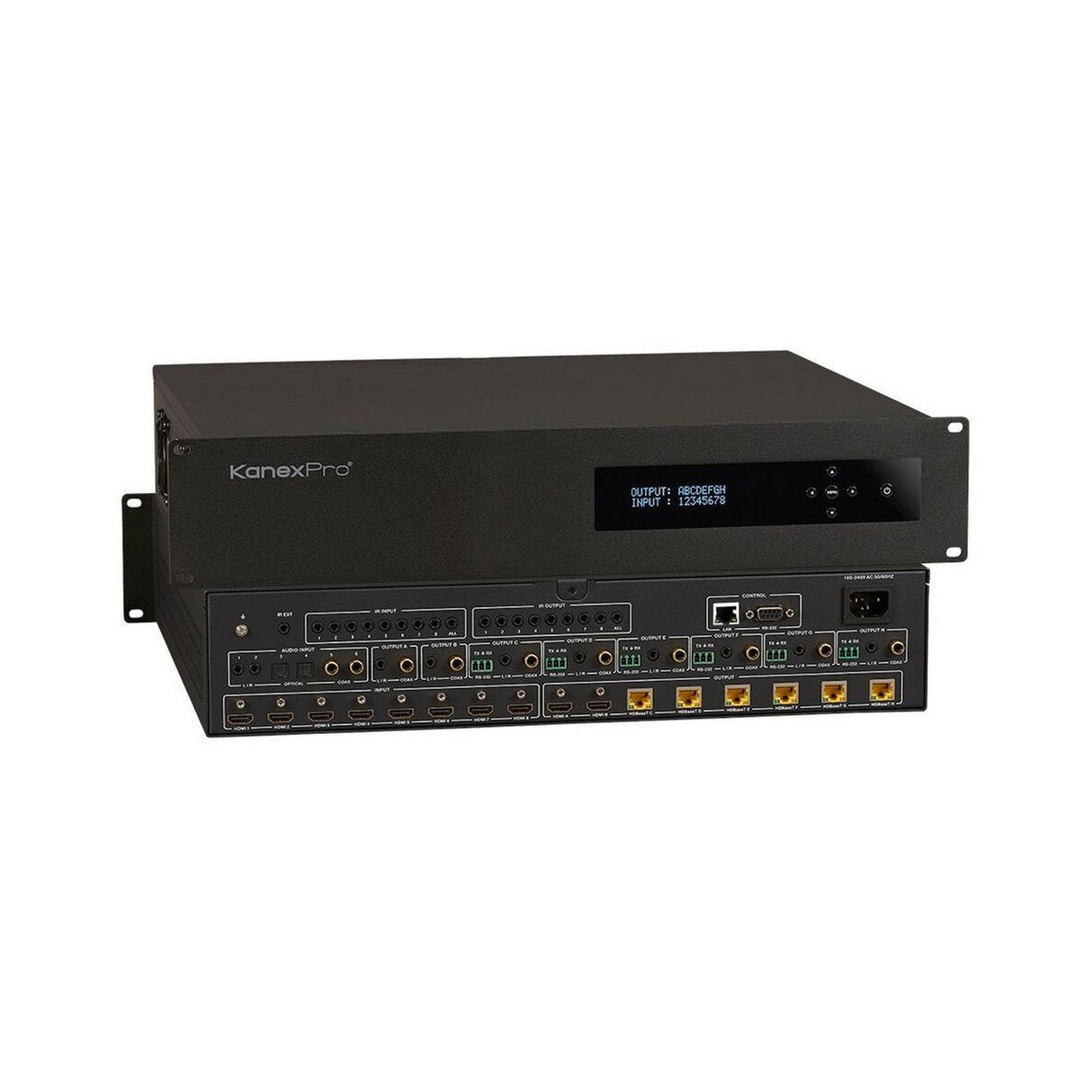

KanexPro MX-HDBT8X818G 4K/60 HDBaseT 8 x 8 Matrix Switcher with Audio Matrix
The KanexPro MX-HDBT8X818G matrix switcher is a professional 8 HDMI input to 6 HDBaseT output with 2 local HDMI output switches designed for switching and extending HDR, Dolby Vision content with digital audio to multiple zones with simple control.
Key Features
- Ultra-fast 8x8 switching with instant display
- Distribute four HDBaseT outputs up to 100m
- Up to 35m at 4Kx2K/60Hz on a single CAT5e/6 cable
- HDMI output supports HDR + DolbyVision
- HDR, ARC, CEC and smart EDID management supported
- Supports power over Ethernet (PoE) to all six receivers
- Includes all 6 receivers in the box
- Indpendent audio matrix
- Supports Audio De-embedding
- HDCP 2.2 compliant
- Bi-directional IR & RS-232 control
- Ethernet connectivity for WebGUI
- Control via front panel, RS232, IR or IP
- Illuminated buttons w/ Front panel LCD
- IR remote control included
- Easy firmware upgrade thru Micro-USB port
- Locking HDMI connectors
- 19" (1U) rack-mountable steel enclosure
Technical Specifications
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 & HDCP 2.2
Video Bandwidth
Up to 18 Gbps
Video Resolutions
up to 4K2K@50/60Hz (YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
HDMI Audio Formats
(Pass-through) LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Audio Formats
(Optical/Coaxial In)
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+
L/R Audio Formats
Analog Stereo 2CH, SPDIF outputs for audio matrix
Infrared Frequency
20KHz - 60KHz
ESD Protection
Human body model -8kV (air-gap discharge) & -4kV (contact discharge)
Connections
Inputs
6x HDMI Type A - 19-pin female
2x L/R Audio In (3.5mm Stereo Mini-jack)
2x Optical Audio In (S/PDIF)
2x Coaxial Audio In (S/PDIF) 8x IR in (3.5mm Stereo Mini-jack)
4x RS-232 (3pin Phoenix Jack)
1x TCP/IP (RJ45)
Outputs
2x HDMI Type A (19-pin female)
4x HDBaseT Out (RJ45)
6x L/R Audio Out (3.5mm Stereo Mini-jack)
6x Optical Out (S/PDIF)
7x IR Out (3.5mm Stereo Mini-jack)
Housing
Metal Enclosure
Color
Black
Dimensions
483 mm (W) x 303 mm (D) x 44.5 mm (H)
Weight
2110g
Power Supply
Input: AC100 - 240V 50/60Hz
Power Consumption
60W (Max)
Operation Temperature
32 - 104F / 0 - 40C
Storage temperature
-4 - 140F / -20 - 60C
Relative Humidity
20 - 90% RH (no condensation)
