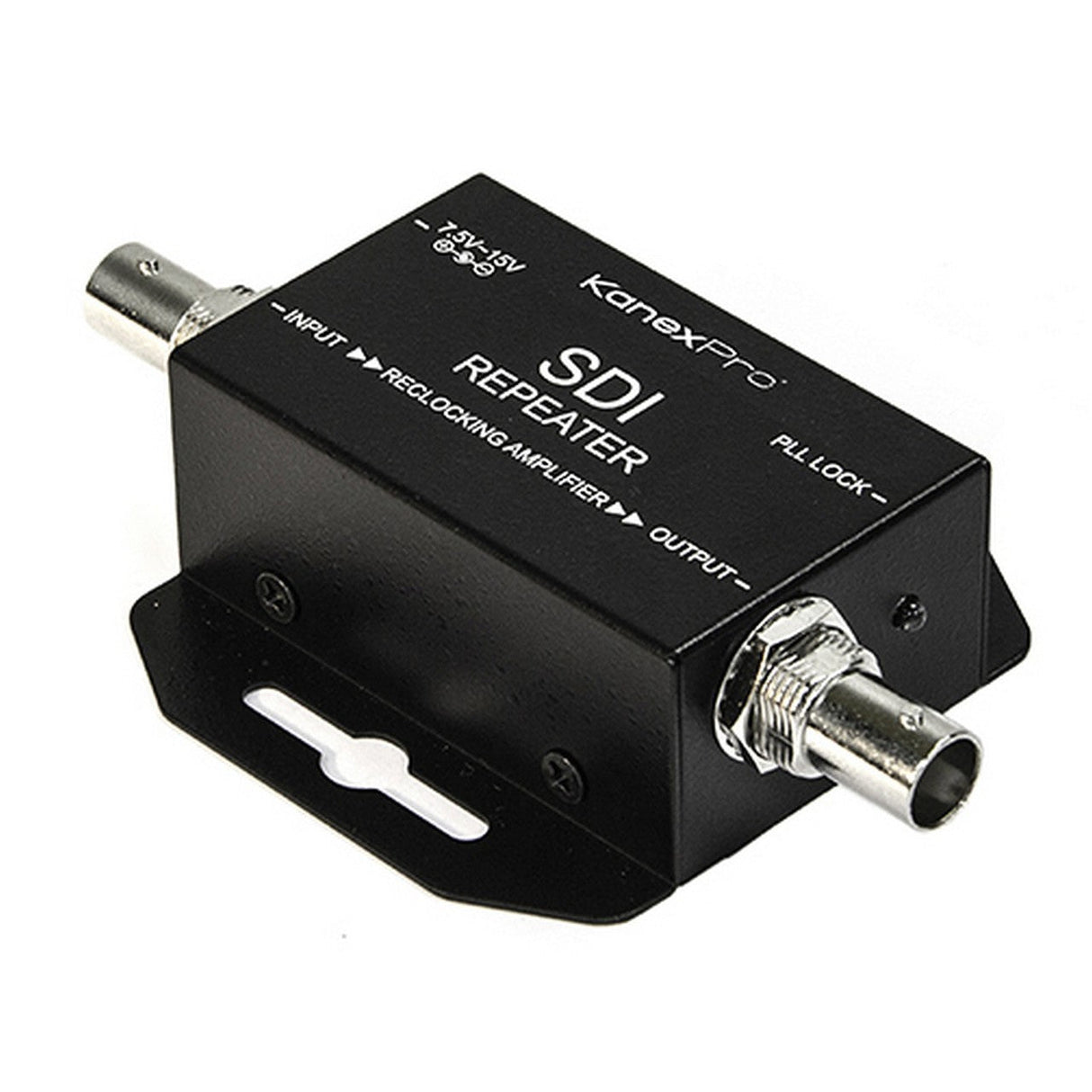

KanexPro SDI-HDRPTPRO HD-SDI Repeater
The KanexPro 3G/SDI/HD-SDI Repeater is designed for extending AV signals at longer runs up to 300 meters using single RG6 cable. It also embeds audio up to 7.1 channels passing ancillary data. Perfect for surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications
Key Features
- Extend and repeat SDI signals up to 300 meters when used with RG-59 (75 ohms cable)
- Up to 200 meters support for HD-SDI and 3G-SDI signals when used with RG-6 cable
- Autoinput detection for 3G/HD/SD-SDI
- Supports full HD 1080p/60
- Built-in signal equalizer & re-clock function
- 3G mode length up to 130m
- HD mode length up to: 170m
- SD mode length up to 300m
- Audio format support up to 16-channel@24 bit, 48KHz
- Compact & rugged housing
- Locking power supply & mounting ears
- Micro-USB Port for firmware update
Technical Specifications
Output: 1 x SDI
Input: 1 x SDI
Supported Video Resolutions:
3G: 1080p60 / 59.94 / 50
HD: 1080p30 / 29.97 / 25 1080i60 / 59.94 / 50
720p60 / 59.94 / 50
SD: 625i (PAL) / 525i (NTSC)
720p60 / 59.94 / 50SD: 625i (PAL) / 525i (NTSC)
SDI formats: 3G-SDI (SMPTE 424M) HD-SDI (SMPTE 292M) SD-SDI (SMPTE 259M)
Cable Equalization:
HD: 200m of RG6
140m of RG59
3G: 140m of RG6 100 m of RG59
SDI formats: 3G-SDI, HD-SDI, SD-SDI
Supported Audio Formats: up to 16-channels, 24-bit@48KHz
Power: DC in 7.5V ~ 15V
