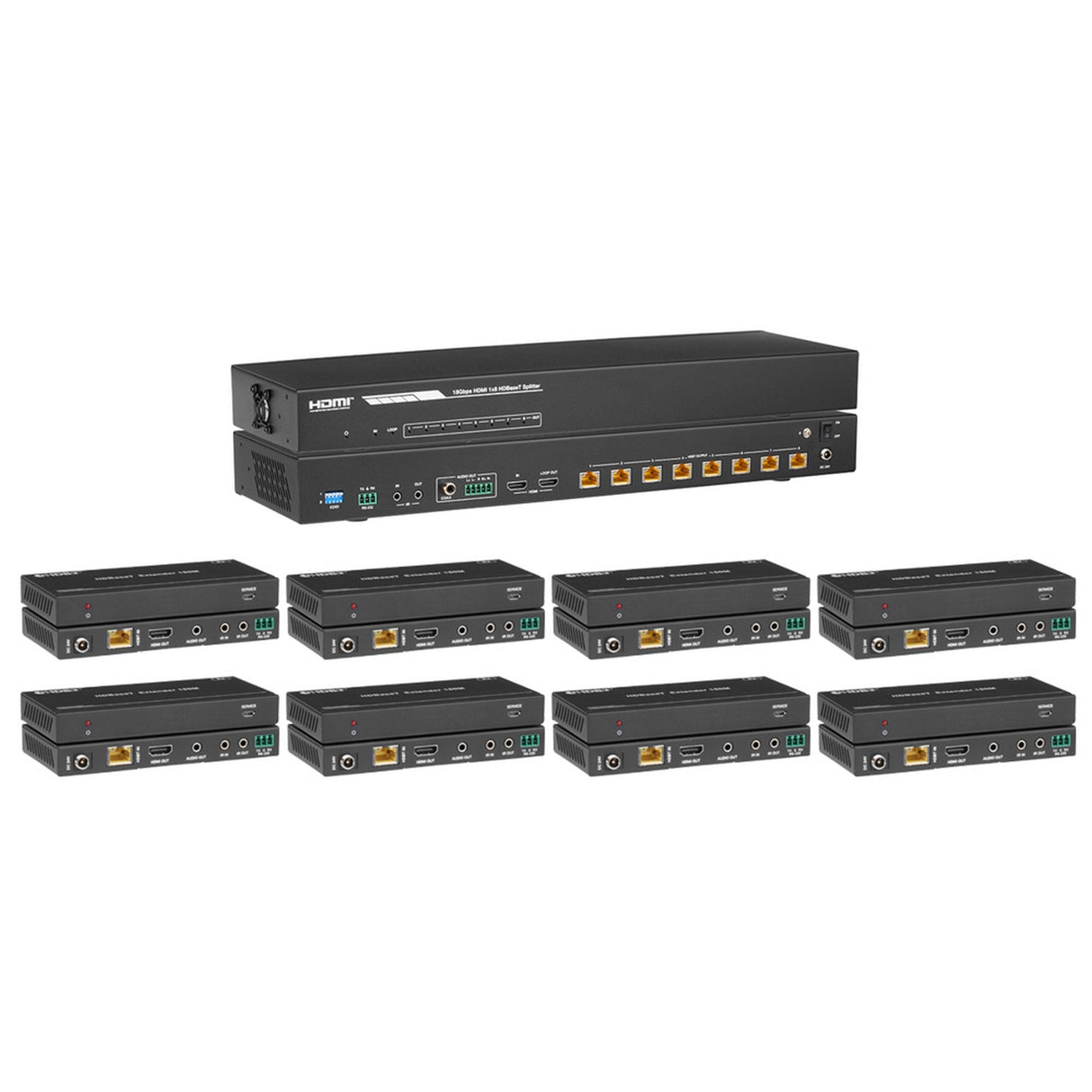

KanexPro SP-1X8HD150M 18G 1 x 8 HDMI 2.0 Splitter Extender 150-Meter Kit
The KanexPro SP-1X8HD150M18Gbps HDMI 1x8 Premium Extender Splitter can extend and distribute a single high-definition video / audio source at distances up to 492ft / 150 meters between transmitter and up to eight (8) receivers via a single CAT cable to any of the eight (8) display devices. Support video resolution up to 4K2K@60Hz 4:4:4. It is designed with 1 HDMI loop output and 8 Cat5/6 outputs. The HDMI signal transmission distance can be extended up to 120 meters at the resolution of 4K@60Hz, or 150 meters at 1080P@60Hz via a single CAT6/ 6a/7 cable. The product supports IR and RS-232 signal pass-through, audio extract function and advanced EDID management. Receivers are remotely powered by the transmitter unit via POC (Power over Cable) technology.
Industry Standard HDCP 2.2 & 4K/60
HDCP 2.2 authentication is present always on KanexPro extenders ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.
Key Features
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Support 18Gbps video bandwidth
- 394ft / 120 meters for 4K2K signal;
- 492ft / 150 meters for 1080P signal
- Support one HDMI loop output on the transmitter
- Extract audio to analog stereo output on receiver
- With bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Support PoC (Power over Cable)
- Compact design for easy and flexible installation
- Covered by KanexProās 3-year limited product warranty
Technical Specifications
Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2
Video Bandwidth
HDMI
18 Gbps
HDMI Supported Resolutions
Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz.All HDMI 3D TV format, etc.
Color Space
RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Supported Audio Formats
100-240V, 50/60Hz, 0.3A
Transmission Distance
Max distance (4K)
394ft/120m overCAT5e/6 Max distance (1080p)
492ft / 150m over CAT5e/6
Connections
Transmitter
Inputs
1x HDMI Type A <19-pin female>
1x IR IN <3.5mm Stereo Mini-jack>
Outputs
1x HDMI Type A <19-pin female>
8x Premium Extender OUT
1x Coaxial Audio OUT
1x L/R Audio OUT <5-pin phoenix connector>
RS-232 <3-pin phoenix connector>
1x EDID DIP switch <5-pin>
1x IR OUT <3.5mm Stereo Mini-jack>
Receivers
Inputs
1 x CAT6 IN
1x IR IN <3.5mm Stereo Mini-jack>
Outputs
1 x HDMI Type A <19-pin female>
1 x IR OUT <3.5mm Stereo Mini-Jack>
1 x Service
1 x AUDIO OUT <3.5mm Stereo Mini-Jack>
Power Supply
Input
AC 100- 240v 50/60Hz
Output
DC24v/3.75A
POC
Operating Environment
Operating Temperature
0 ~ 40 Degrees C
Storage Temperature
-20 ~ 60 Degrees C
Relative Humidity
20 ~ 90% RH
Mechanical Properties
Dimensions
Transmitter
440 (W) x 130 (D) x 40 (H) mm
Receiver
140 (W) x 65 (D) x 18 (H) mm
Housing
Metal Enclosure
Color
Black
Weight
Transmitter
1.62kg
Receiver
246g
Warranty
3 Year parts and labor
