KanexPro SP-HDPOC1X4 HDMI 1 x 4 Distribution Amplifier over CAT5e/6

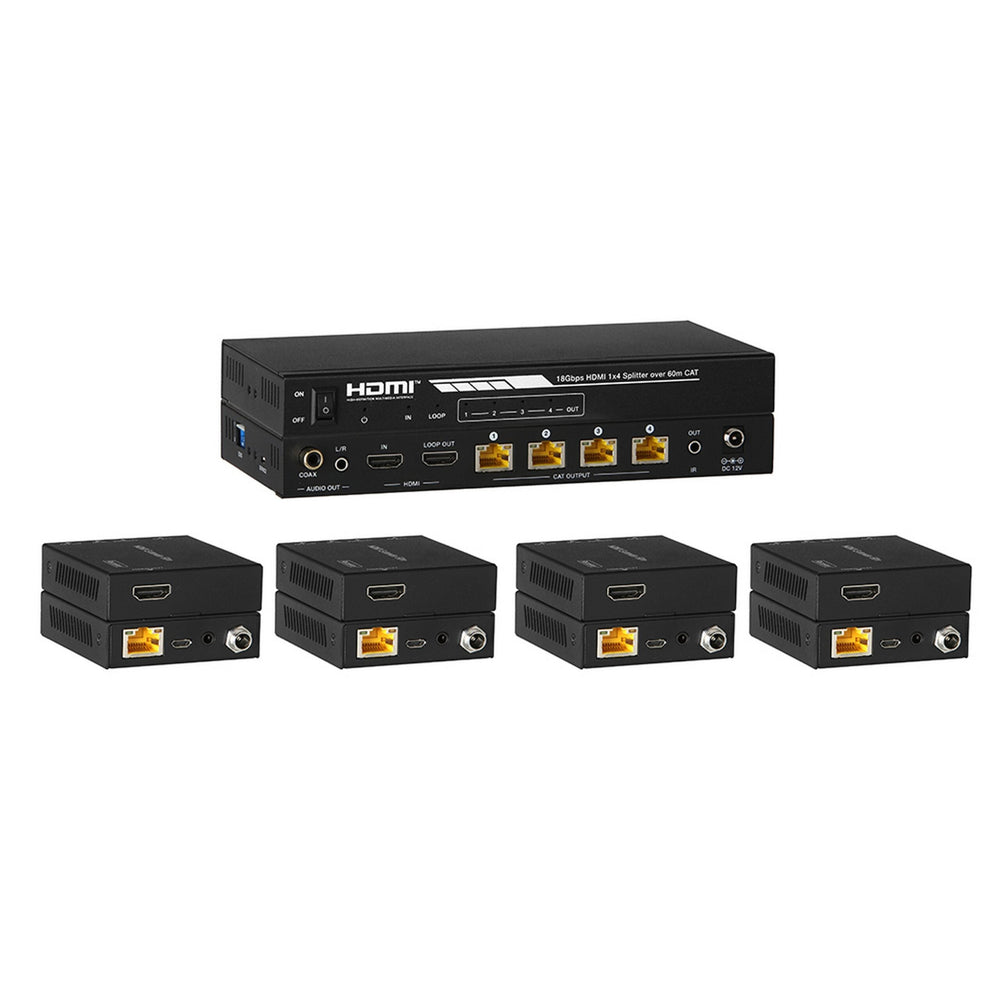

The KanexPro 1x4 Distribution Amplifier (SP-HDPOC1X4) is a 18Gbps HDMI 1x4 Splitter that can distribute a single HDMI source signal to any 4 display devices. Support video resolution up to 4K2K@50/60Hz 4:4:4. It is designed with 1 HDMI loop output and 4 CAT outputs. It can extend the signal transmission distance up to 35 meters at the resolution of 4K2K@ 60Hz, or 50 meters at 4K2K@30Hz, or 60 meters at 1080P@60Hz via a single CAT6/6a/7 cable. The product supports one-way IR control signal pass-through, audio extract function and advanced EDID management.
Industry Standard HDCP 2.2 & 4K/60
HDCP 2.2 authentication is present always on this matrix ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard for all our matrix switchers.
Key Features
- Distribute & Extend HDMI over Single CAT5e/6 to four HD displays
- Includes 4-independent receivers
- Supports transmission distance up to 192 ft. (60m)
- Supports UHD 4K (4K x 2K @ 60Hz)
- Control via IR (kits included)
- Supports 5.1, 7.1 digital audio and uncompressed LPCM
- HDCP 2.2 & EDID support for multiple displays
- Simple set up with zero configuration
- Low Power consumption - No Power supplied Needed for the RXs
- Power over Cable
- Compact design for flexible installations
- Support digital and analog audio de-embedded outputs
- Backed by KanexPro's 3 Year limited warranty
Technical Specifications
Functional Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDCP 2.2/1.X
Video Bandwidth
594MHz/18Gbps
Color Depth
8-bit,10-bit,12-bit(1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 YUV 4:2:0
HDR Support HDR 10, HDR 10+, HLG, Dolby Vision
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coaxial Audio Formats
LPCM2.0, LPCM5.1, Dolby Digital2/5.1CH
Analog Audio Formats
PCM 2.0
Interface
Transmitter x 1
Input: HDMI x1
Output
Cat5e/6 x4
Audio
Digital Coax
Audio
3.5mm L/R Stereo Mini-Jack
Receiver x 4
Input
Cat5e/6 x1 per receiver
Output
HDMI x1
Transport Protocol
Non-Ethernet based protocol
Video Resolutions (HDTV)
Up to 4k@50/60hz 4:4:4
Power Supply for Splitter Amplifier
Input Voltage
100-240V, 50/60Hz, 0.3A
Output Voltage
12V DC@2.5A
Power consumption
14 Watts
Operating Temperature
0 Degrees C to +60 Degrees C
Regulatory Approvals
FCC, CE, UL
Dimensions for 4 Ports Splitter Amplifier
8.3ā x 4ā x 1ā (W 210mm x D 100mm x H 25mm)
Dimensions for receiver
3.5ā x 2.4ā x 0.7ā (W 88mm x D 61mm x H 18mm)
Total Weight
Tx
1.3 lbs. (617g)
Rx
0.34 lbs. (155g)
Warranty
3 Year parts and labor
