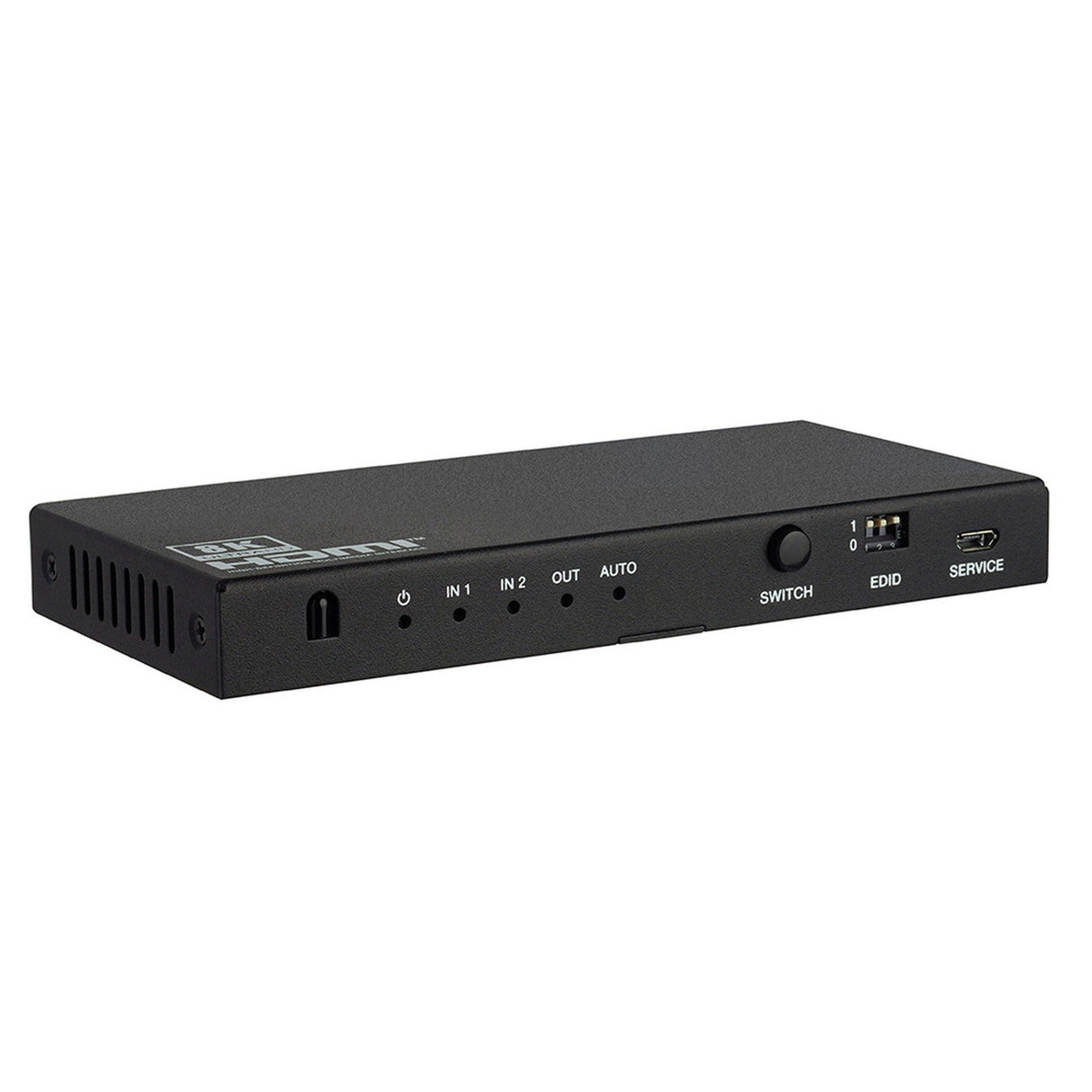

KanexPro SW-2X18K 8K 2 x 1 HDMI 2.1 Switcher

The KanexPro SW-2X18K 8K 2x1 HDMI 2.1 switcher allows for seamless switching between two HDMI sources and display on a single HDMI display. It supports resolutions up to 8K at 60Hz and 4:4:4 with 48Gbps video bandwidth, making it perfect for use in various commercial applications. Users can toggle between sources with the switch button on the top panel of the switcher. It is also compatible with gaming consoles like Xbox and PS5, achieving a resolution of 4K at 120Hz on TVs and computer monitors.

Key Features

• HDMI 2.1 and HDCP 2.3 compliant: The device meets the standards of HDMI 2.1 and HDCP 2.3, ensuring compatibility and support for the latest HDMI and content protection technologies.
• Support 48Gbps video bandwidth: The device can handle high-speed data transfer up to 48Gbps, allowing for seamless transmission of high-quality audio and video signals.
• The device can display various video formats and resolutions, including 8K content at different frame rates and color depths, as well as 4K content at high refresh rates and color precision.
• The device is capable of passing through High Dynamic Range (HDR) signals, including popular HDR formats such as HDR10, HDR10+, Dolby Vision, and Hybrid Log-Gamma (HLG), allowing for enhanced color and contrast reproduction on compatible displays.
• The device supports Variable Refresh Rate (VRR), allowing for smoother gameplay by synchronizing the display's refresh rate with the source device
• It also supports Fast Frame Transport (FVA) for reduced latency and Auto Low Latency Mode (ALLM) for automatic game mode activation on compatible devices.
• The device can handle various HDMI audio formats, including uncompressed LPCM 7.1-channel audio, as well as high-definition audio formats like Dolby TrueHD and DTS-HD Master Audio, providing immersive sound experiences.
• 2x1 switch output, auto switch supported: The device features a 2x1 switch output, allowing you to connect two HDMI sources and switch between them as needed.
• It also supports automatic switching, which detects the active input and switches accordingly.
• Built-in Equalizer and Driver: The device includes a built-in equalizer and driver, which help compensate for signal loss and maintain optimal signal quality over longer cable lengths.
• The device automatically manages Extended Display Identification Data (EDID), which ensures that the connected devices communicate and negotiate the best video and audio settings for optimal performance.
• Compact design for easy and flexible installation: The device is designed to be compact, allowing for easy installation in various settings and environments
• Its small form factor offers flexibility in terms of placement and integration into existing setups.

Technical Specifications

HDMI Compliance
HDMI 2.1
HDCP Compliance
HDCP 2.3
Video Bandwidth
48Gbps
Video Resolution
Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
Color Depth
8-bit, 10-bit, 12-bit
Color Space
RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI Audio Formats
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Connection
Input
2xHDMI IN
Output
1xHDMI OUT
Mechanical
Housing
Plastic Enclosure
Silkscreen Color
Black
Dimensions
60mm (W) x 60mm (D) x 12mm (H)
Weight
31g
Power Supply
USB 5V
Power Consumption
1.25W (Max)
Operation Temperature
0 Degrees C ~ 40 Degrees C / 32 Degrees F ~ 104 Degrees F
Storage Temperature
-20 Degrees C ~ 60 Degrees C / -4 Degrees F ~ 140 Degrees F
Relative Humidity
20~90% RH (non-condensing)
