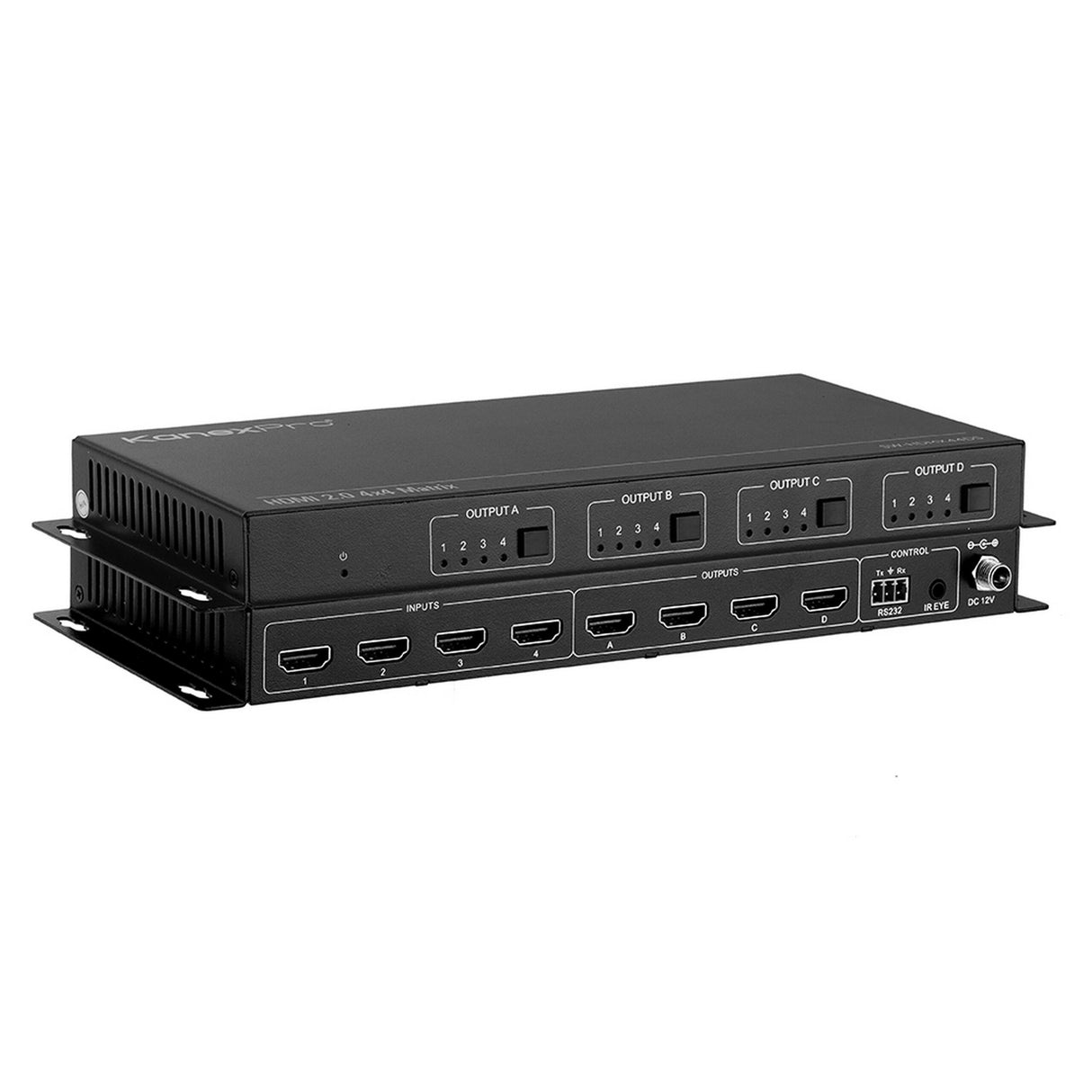

KanexPro SW-HDMX44DS HDMI 2.0 4 x 4 Matrix Switcher with 4K to 1080p Down-Scaling

The KanexPro SW-HDMX44DS is an HDMI 2.0 compliant 4 input and 4 output HDMI matrixing switcher. The matrix supports a mix of both 4K and 1080p displays to be connected and operated at the same time. The built-in 4K -> 1080p down-scaler will automatically downscale a 4K HDMI video signal to 1080p to ensure compatibility and the best possible picture on all connected displays. It'supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision. It can be controlled via front panel buttons, IR remote and RS232 commands.

Key Features

• Supports resolutions up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including 1080p 3D.
• Fully compliant with HDMI V2.0 and HDCP 2.2 specifications.
• Supports 4K to1080p down-scaling for each independent output to compatibility with the legacy 1080p displays.
• Smart EDID management.
• Supports front panel buttons, IR remote and RS232 control.
• Backed by KanexPro 3 -Year Parts & Labor Warranty

Technical Specifications

HDMI Performance
HDMI Compliance
HDMI 2.0
HDCP Compliance
HDMI 2.2
Maximum Bandwidth
18Gbps
HDMI Audio
Supports PCM, Dolby Digital and DTS.
HDMI Supported Resolutions
Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision, including 1080p 3D.
Control
Control Ports
(1) RS232, (1) IR Eye
Control Connector
(1) 3-pin terminal block, (1) 3.5mm jack
Video Connectors
Input
(4) HDMI
Input Connectors
(4) Female type A HDMI
Output
(4) HDMI
Output Connectors
(4) Female type A HDMI
Operating Environment
Working Temperature
-5~55 Degrees C
Storage Temperature
-25~70 Degrees C
Humidity (No Humidity)
-0~90%RH
Physical Properties
Dimensions
244 x 25.5 x 100mm
Material
Aluminum
Color
Black
Weight
640g
Power Supply
Input Power
12v DC 2A
AC Adapter Input Power
100 to 240 V AC, 50/60 Hz
Power Consumption
12 watts
Warranty
3 Year parts and labor
