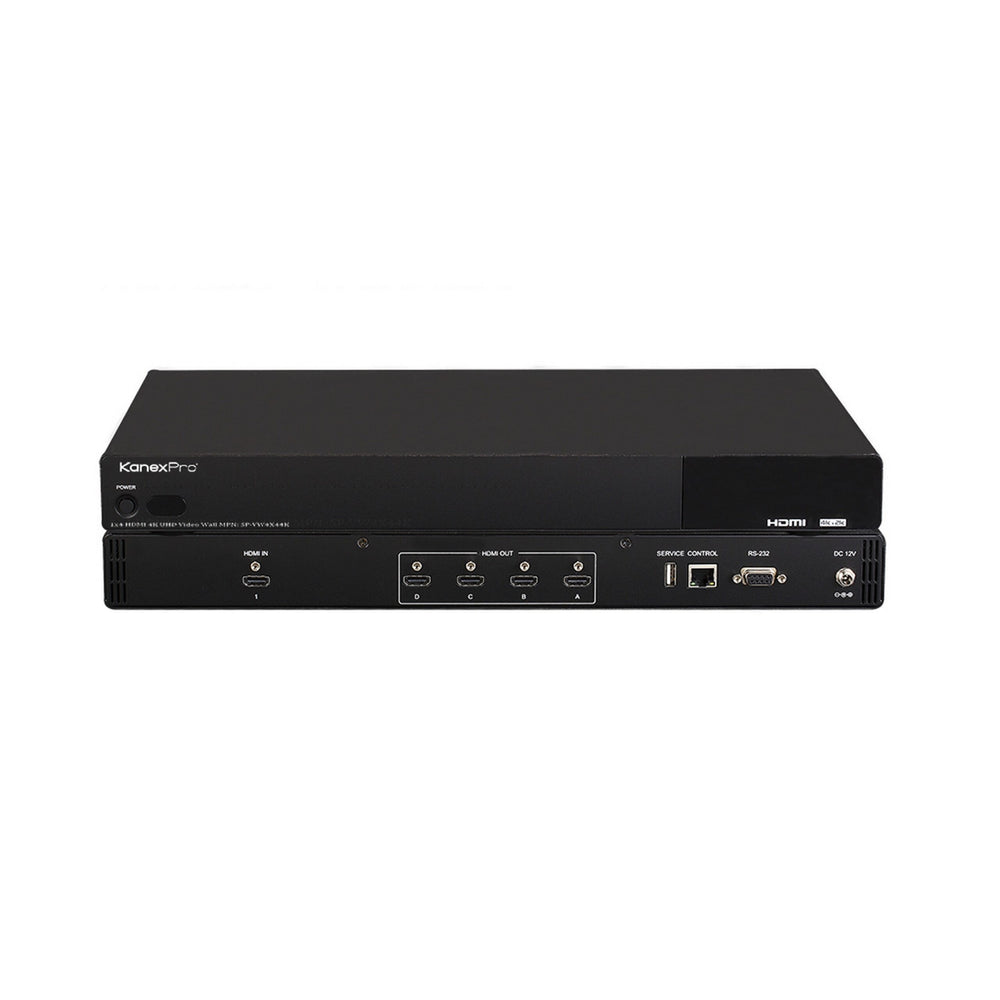

KanexPro VW-SP1X44K 1 x 4 HDMI 4K UHD Video Wall Processor with Bezel Correction
The KanexPro VW-SP-1X44K is a 4K based video processor which allows one HDMI input to be freely arranged on to four 4K displays. It offers bezel correction support with a simple and easy to use control application. The device supports video output timings up to WUXGA@60 and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID.
Easy to Control from Anywhere
The video processor can be controlled from anywhere using a tablet or any other 3rd party control system using RS-232 and Telnet.
Applications:
Ideal for digital signage markets, large scale presentations, hyper market displays and command and control applications where high resolution video wall is needed.
Key Features
- 1x4 Video Processor with Built-in Bezel Correction and Control
- Can be cascaded to create up to 3x3 Video Wall (9- displays)
- Can also be used as a 1x4 DA (splitter)
- Supports 4K x 2K@24/25/30Hz
- HDCP compliant
- Outputs video signal to 4 displays with a full image & adjustable Bezel Correction
- Input PC resolutions: from VGA~WUXGA & HDTV from 480i~1080p & 4K2K@24/25/30Hz
- Various Audio Format Support: AC3/DTS/Dolby Digital Plus/Dolby TrueHD/Dolby Atmos and DTS-HD Master Audio
- Control via RS-232 & Telnet (Ethernet)
- One locking power supply included
- 1U (19”) rack mountable enclosure
- Backed by KanexPro 3-year parts and labor warranty
Technical Specifications
Video Bandwidth
300MHz/9Gbps
Input Ports
1×HDMI (Female type), 1×Control (RJ45), 1×RS-232 (D-sub 9-pin), 1×USB (Service only)
Output Ports
4×HDMI (Female type) 10M/8-bit 1080p
HDMI Cable Distance
5 meters for 4Kx2K,
10 meters for /8-bit FullHD 1080p
100-150 meters over CAT5e/6 Exenders can be used to create long distances (optional)
Baud Rate
115200 bps
Chassis Material
Metal enclosure
Color
Black
Operating Temperature
0 °C~40 °C / 32 °F~ 04 °F
Storage Temperature
-20 °C~60 °C / -4 °F~140 °F
Relative Humidity
20~90 % RH (non-condensing)
ESD Protection
Human body model
+/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge)
Power Supply
12V/3A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption
12.98W
Weight
6.51lbs. (2956g)
Dimensions
17.0"(W) × 11.0"(D) x 1.7" (H) - Jacks Excluded
19.0"(W) × 10.78"(D) x 2.0" (H) - Jacks Included
