KanexPro WP-EXTHDBTKIT Single HDMI 2.0 Wallplate Over HDBaseT

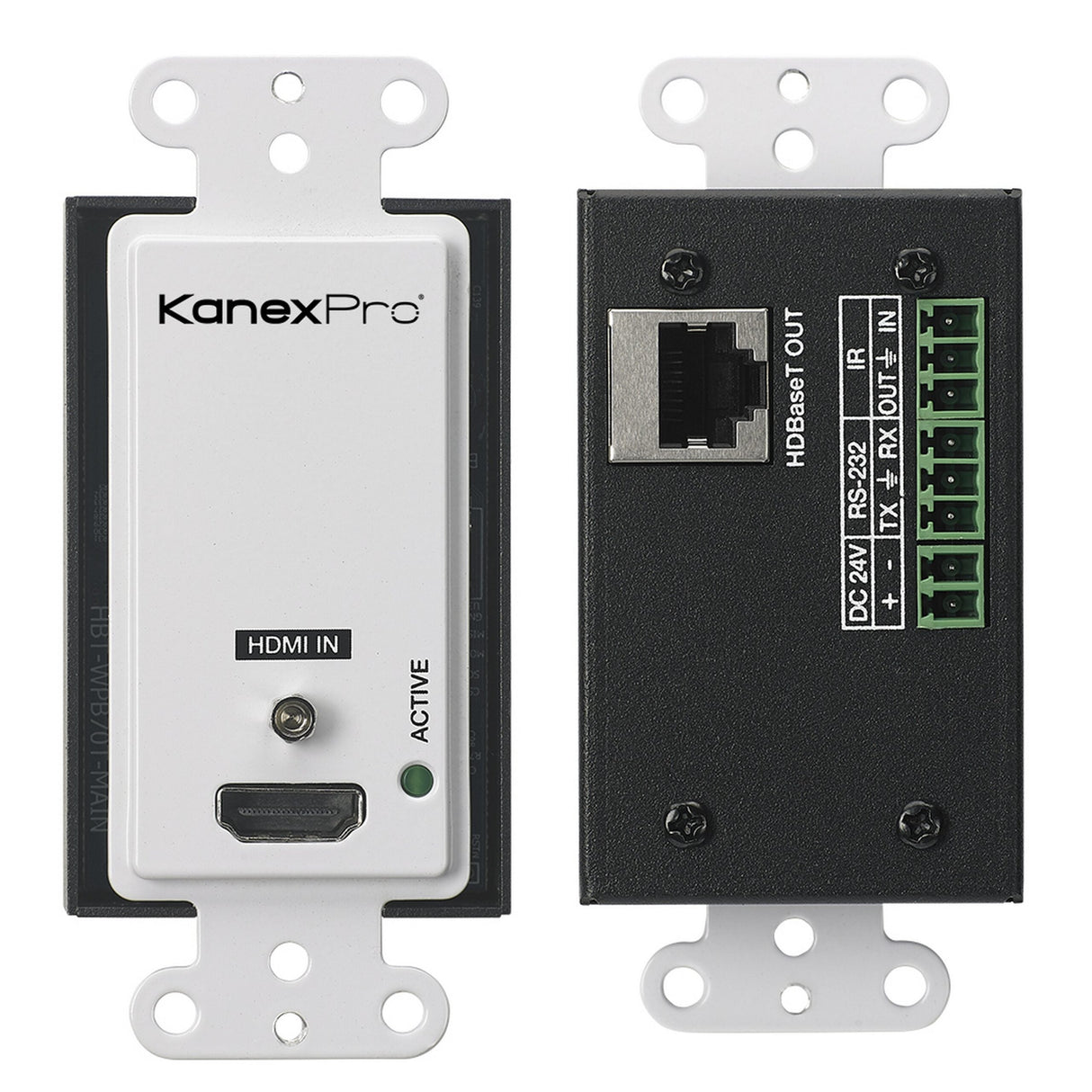

The KanexPro WP-EXTHDBTKIT is a US Decora style single gang HDMI 2.0 wall plate transmitter - receiver set designed for connecting one HDMI device such as a laptop, Blu-ray, or a 4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via HDBaseT port and the receiver is included in the box. It supports full 18 Gbps bandwidth with true 4K video resolutions up to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color sampling rate of 4:4:4.
PoC & Control
The wall plate transmitter supports PoC - power over cable requiring only power supply from the Receiver. Additional receivers can be purchased separately, part# EXT-WP70POC. It also supports bi-directional IR control and RS-232 control for devices to and from the display.
Applications:
Ideal for use with court rooms, classrooms, conference rooms or showrooms where audio-visual devices can be extended from a remotely located HDMI source device. This single-gang HDMI wall plate can be used anywhere to enhance signal integrity over CAT5e/6 cabling.
Key Features
- Single Gang, One HDMI Input wall plate over HDBaseT & Rx Set
- Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
- Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
- Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
- Digital Audio Support up to 7.1 channels of HD audio
- HDCP 2.2 /1.4 Compliant
- Bi-directional IR & RS-232C
- Remote power support thru PoC (Either from Tx or Rx)
- POC Power consumption is less than 10W
- Simple point-to point transmission over CAT5e/6
- Active LED status indicator
Technical Specifications
HDMI Compliance
HDMI 2.0b HDCP
Compliance HDCP 1.4 & HDCP 2.2
Video Bandwidth: 18 Gbps
Video Resolutions: up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,
1080p@ 120Hz, & 1080p 3D@60Hz
Color Space RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS 2/5.1CH
ESD Protection
Human body model-+/-8kV (Air-gap discharge)
+/-4kV (Contact discharge)
Transmitter Inputs
1x HDMI Type A <19-pin female>
1x IR INPUT
1x RS-232
Outputs
1x HDBaseT Out
1x IR OUTPUT
1x RS-232
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption: 9W (Max)
Mechanical
Housing: Metal Enclosure
Color: Black
Dimensions: 103.5mm
Weight: 163g
Operating Temperature
32 - 104F / 0 - 40C
Storage Temperature
-4 - 140F / -20 - 60C
Relative Humidity
20 - 90% RH (no condensation)
Warranty
3 Years Part & Labor
