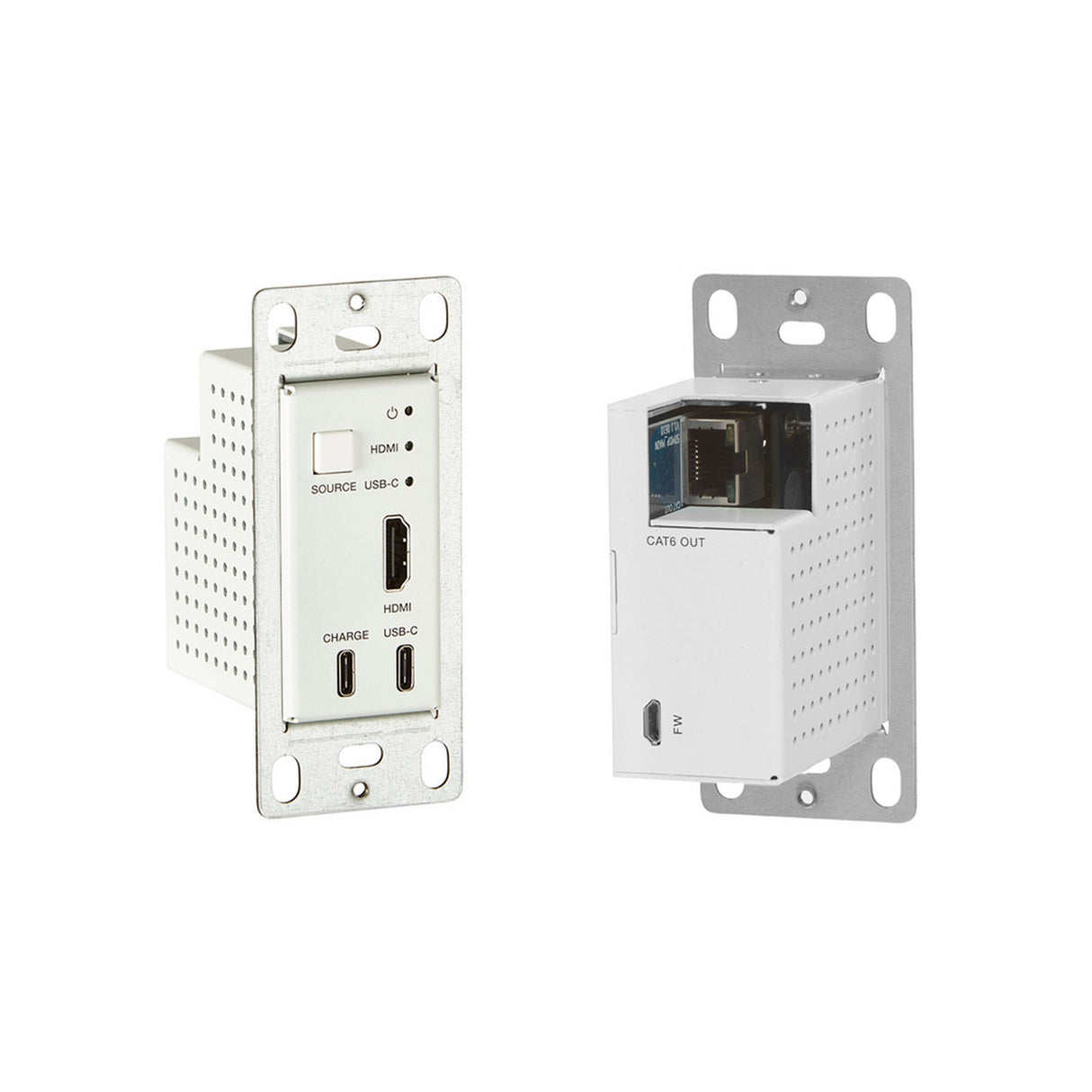

KanexPro WP-EXTHDTC50 HDMI and USB-C Extender 50 Meters Wall Plate Kit

The KanexPro WP-EXTHDTC50 HDMI and USB-C 50M Extender Wall Plate kit is a 2x1 switcher and transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate opening with white wall plates and faceplates. Supports video resolutions up to 4K2K@50/60Hz 4:4:4. The RJ56 output can extend video transmission at distances up to 164ft or 50m. The wall-plate transmitter is remotely powered by the receiver via POC technology.

HDCP 2.2 authentication is present always on KanexPro extenders ensuring proper handshake of the protected content. It also maintains resolutions up to 4K- 4096x2160@24, 30, 50 or 60Hz, 3840x2160@24, 25,30, 50 or 60Hz and 2560x1080@60Hz displaying 21:9 aspect ratios. 1920 x 1200 or full HD 1080p/60 is a standard.

Key Features

• Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a standards
• HDMI input supports 18Gbps video bandwidth;
• USB-C input supports 5.4Gbps video bandwidth
• Video resolution up to 4K2K@50/60Hz 4:4:4
• CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
• Support 3D, HDR10 and Dolby Vision
• HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Support HDMI and USB-C input with USB-C charging port
• US one-gang enclosure for Decora-style wall plate openings
• Input signal selection supports automatic mode and manual mode
• Support POC function (only from Receiver to Transmitter)
• Backed by KanexPro 3-Year Parts and Labor Warranty

Technical Specifications

HDMI Compliance
HDMI 2.0
HDCP Compliance
HDMI 2.2
DP Compliance
Displayport 1.2a
Video Bandwidth
HDMI
18 Gbps
Displayport
5.4Gbps
HDMI Supported Resolutions
Up to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz.All HDMI 3D TV format, etc.
Color Space
RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Supported Audio Formats
100-240V, 50/60Hz, 0.3A
Transmission Distance
Max distance (4K@24)
164ft / 50m overCAT5e/6 Max distance (4K@60): 115ft / 35m over CAT5e/6
Transmitter
Input Ports
1 x HDMI Type A <19-pin female>
1 x USB-C
Output Ports
1 x CAT6 Out
1 x USB-C Charging Port
Control Ports
1x Firmware
Receiver
Input Ports
1 x CAT6 Out
Output Ports
1 x HDMI Type A <19-pin female>
Control Ports
1x IR in [3.5mm Stereo Mini-Jack
1x Service
Power Supply
POC (only from Receiver to Transmitter)
Operating Environment
Operating Temperature
0 ~ 40 Degrees C
Storage Temperature
-20 ~ 60 Degrees C
Relative Humidity
20 ~ 90% RH
Mechanical Properties
Dimensions
Wall Plate
33.3 (W) x 65.7 (D) x 68.7 (H) mm
Face Plate
69.9 (W) x 3 (D) x 26.2 (H) mm
Receiver
88 (W) x 61 (D) x 18 (H) mm
Housing
Metal Enclosure
Color
White/Black
Weight
Wall Plate
195g
Receiver
155g
Warranty
3 Year parts and labor
