KanexPro WP-HDBASETX 4K HDMI & VGA Wall Plate Transmitter Over HDBaseT

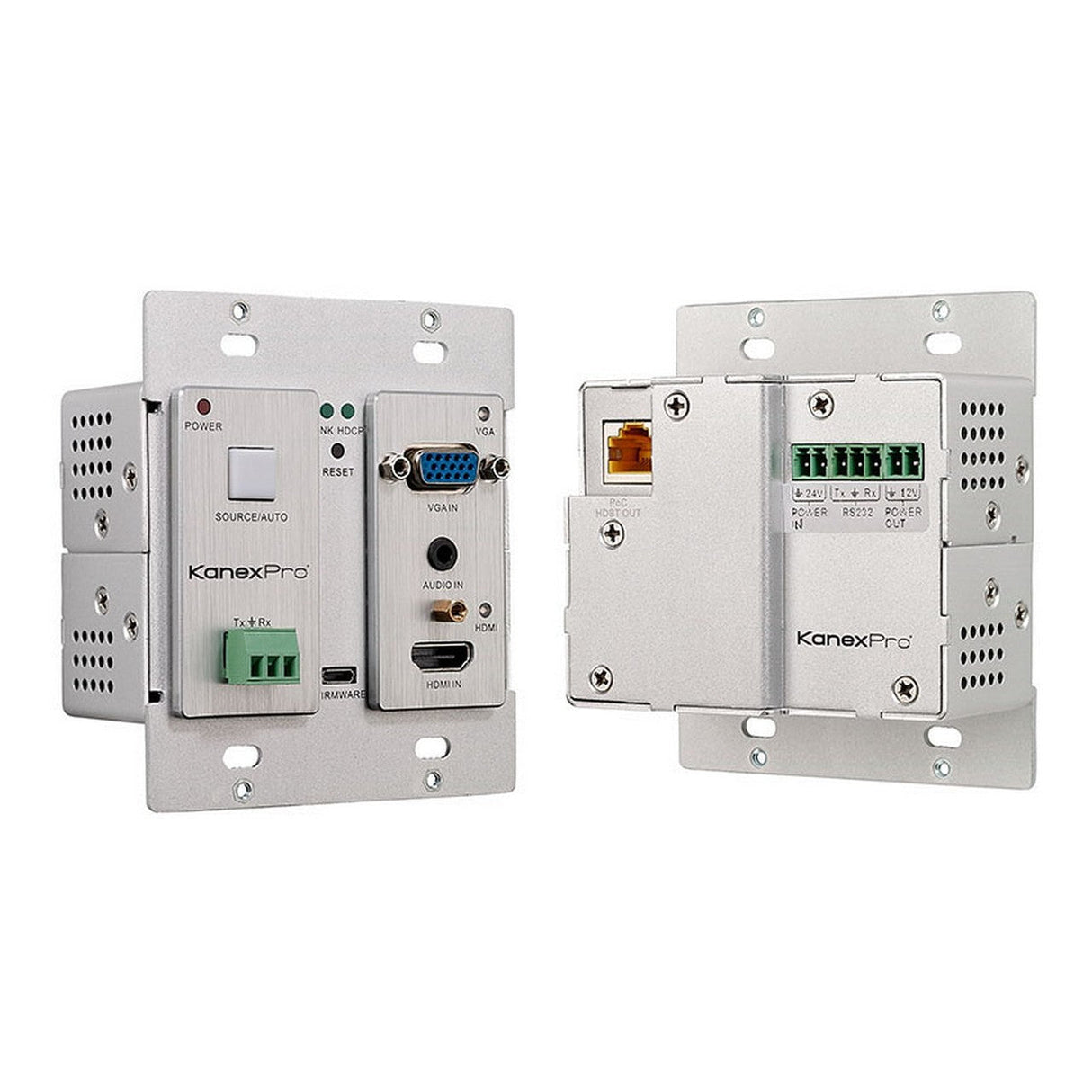

The KanexPro WP-HDBASETX is a compact 2-input transmitter for sending HDMI or 15-pin HD analog video, audio and control up to 230 feet (70m) over a shielded CAT6. This Décora style 2-gang wall plate also supports PoE (power over Ethernet) to the receiver.
Based on HDBaseT technology, this wall plate extender is HDCP and EDID compliant ensuring proper output to displays.

Key Features

• Transmits HDMI or analog video, control, and analog audio up to 200 feet (70 meters) over a shielded CAT6 cable
• Auto-switching between inputs
• Supports computer and video resolutions up to 1920x1200, including 1080p/60 and 4K
• Remote power supporting PoE
• HDCP & EDID compliant
• RS-232 for control
• Supports high bandwidth up to 10.2 Gbps
• Locking HDMI connector
• High grade aluminum design for commercial grade applications
• The HDBASE70POER receivers are ordered separately
• Do not use couplers between the RJ-45/ CAT6 cables, this will cause degradation or damage to the unit.

Technical Specifications

Input Signal: 1 x HDMI (female), 1x VGA(female), 1x Audio (3.5mm Mini jack)
Input Connector: 1 x HDMI, 1x VGA, 1 x 3.5 mm mini-jack and 1 x RS-232 Connector
HDMI Video Signal: HDMI1.4
Audio: Digital audio transmitted through HDMI audio & VGA thru 3.5mm Stereo Jack
Output Signal: 1 x HDBaseT
Output Connector: 1 x RJ-45
Resolutions supported:
VGA outputs resolution up to: 1080p
800x600 to 1920x1200
3D formats
4K x 2K for HDMI
Transmission Mode: HDBaseT® Lite Technology
Resolution Range: From 800x600 ~ 1920x1200, 4K
Maximum distance: 197 feet (60 Meters)
Gain: 0dB ~ 10dB@100MHz
Differential Phase Error: ±10° @ 135MHz_100M
SNR: >70dB@ 100MHz-100M
Bandwidth: 10.2Gbps
Return Loss: <-30dB@5KHz
THD: <0.005%@1KHz
Impedance: 75Ohms
Helpful Tips & Recommendations:
CAT-5e/6a cables should not exceed 230 feet or (70m)
Solid Core Shielded twisted pair cable recommended
Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).
Do not use crossover cables, patch cables or Ethernet couplers to extend two CAT6 cables. This may damage the TX & Rx.
If the power LED indicator on the Tx/Rx unit is not on, check to make sure that the CAT6 cables are not crossed i.e., Ethernet to Link instead of Ethernet to Ethernet.
