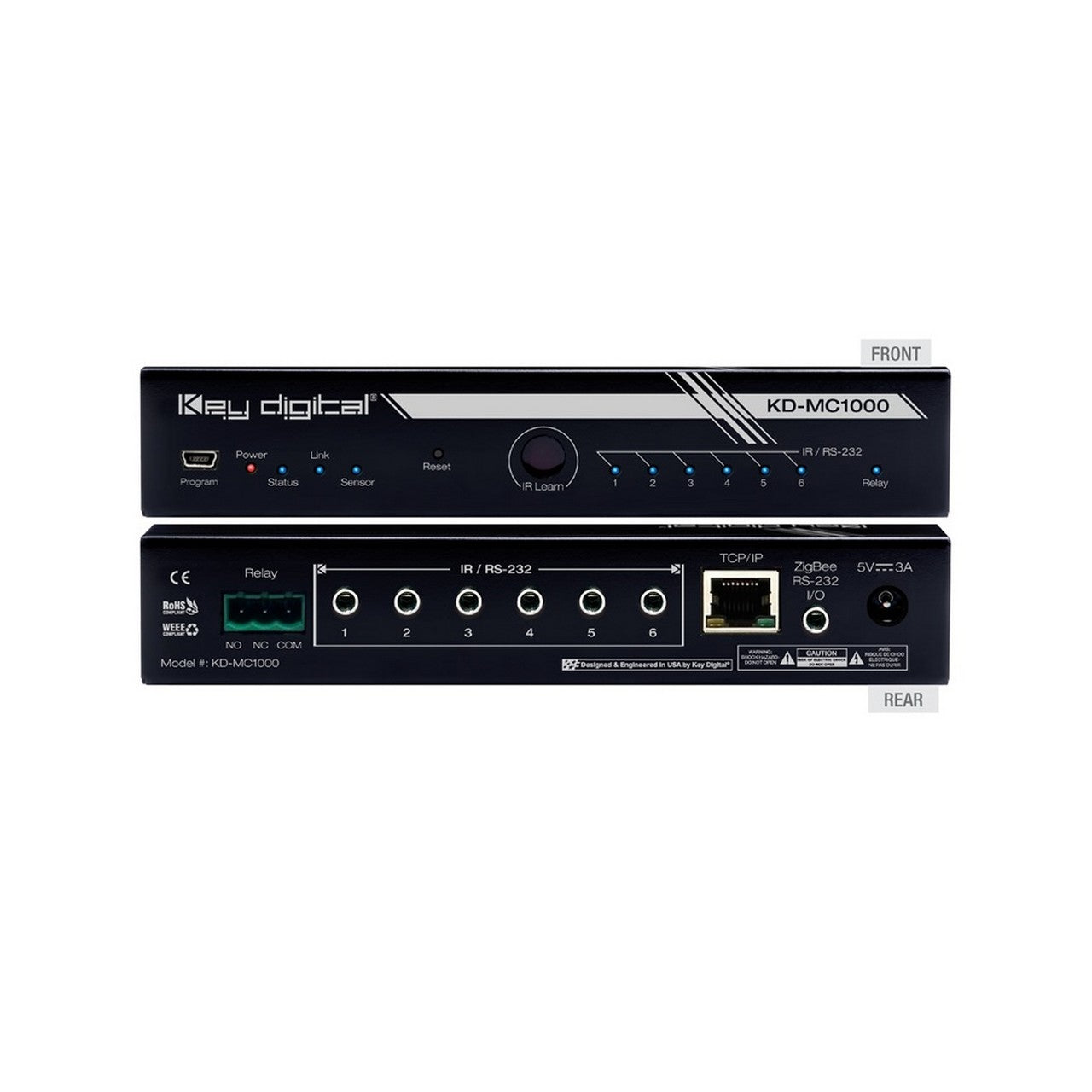

Key Digital KD-MC1000 8 Port LAN Master Controller

Master Controller, (Wired/LAN, up to 8 Ports)

Key Features

• iOS Backbone: First major control system built from the ground up using Apple’s iOS devices iPad, iPad mini, iPhone, and iPod touch
• Total 8 Ports: 6 MCP35 Multi-Function I/O Ports , 1 Relay/Contact Closure Port, 1 ZigBee Wireless Port
• USB Support: USB port for firmware upgrades and initial setup
• Built-in IR Learning: Front-facing IR window enables learning of IR codes from external IR remotes
• Relay Control: Control external equipment with one set of switchable contacts. Any multi-function 3.5mm port can be converted to Contact Closure using external Key Digital KD-CCXR200 Converter

Technical Specifications

Regulation
CE, RoHS, WEEE
Enclosure
Black Metal 1/2U
Accessories
External 5V3A Power Supply, USB Cable, (1) 3-Pin Terminal Block for
Relay, (6) 3.5mm to IR Emitter, (3) 3.5mm to RS-232 Data Cable, Rack Mount Ears
Product Dimensions
6.5” x 4” x 1.13”
Shipping Dimensions
8.8” x 6.2” x 3.9”
Product Weight
1.5 lbs.
Shipping Weight
3 lbs.
