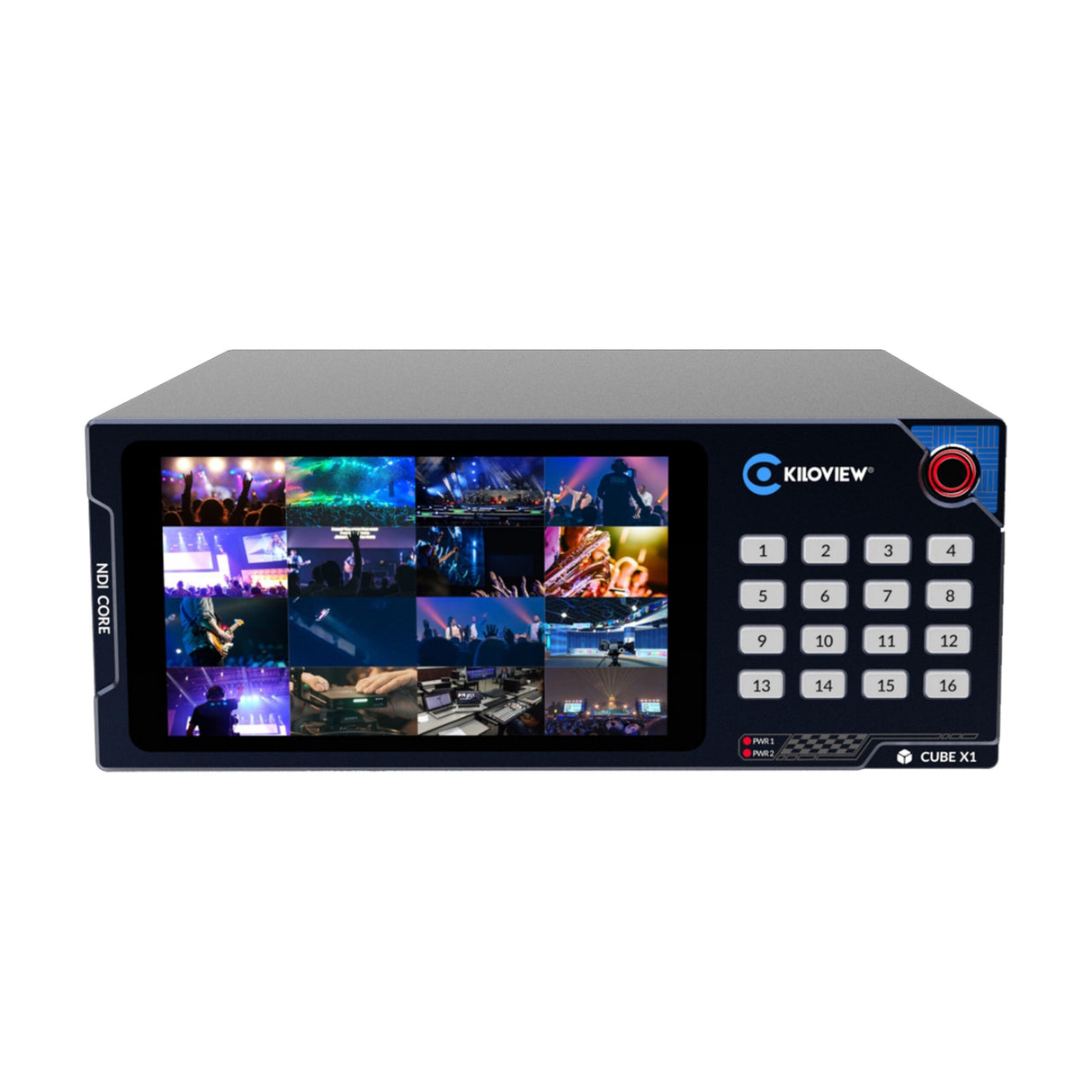

Kiloview Cube X1 NDI Core Multiplexed Video Switcher

Kiloview Cube X1 NDI Core Multiplexed Video Switcher

CUBE X1 NDI CORE is a lightweight version of the NDI CORE MAX.

The CUBE X1 is designed for unified scheduling, switching, distribution, and management of all NDI signals, supporting 16CH NDI inputs and 32CH NDI outputs. It can achieve seamless switching of all NDI sources and switch without lagging or black screen.

Additionally, it can realize non-multicast multiple distributions, multi-business grouping management, NDI signal rotation playback, etc. It is also compatible with NDI signals of any format or from any device, such as UHD/HD/NDI/NDI|HX and other NDI inputs for seamless docking.

Equipped with an LCD touch screen, the CUBE X1 allows users to monitor the network status, storage space, and CPU occupation in real time.

Unlike a simple routing switching mechanism, Kiloview CUBE X1 supports access to all NDI data sources, thus achieving seamless NDI signal switching and unlimited distribution. When you need to use the same NDI video source in multiple targets, the system can create multiple NDI outputs as needed, or the same output can support multiple targets connected at the same time.

Technical Specifications

Management
Web/KiloLink Server
Resolutions
Up to 4Kp60
Operation System
Linux
Chassis
Half of 2U
Network Ports
Dual 10G Optical Ports or Electrical Port and 1G RJ45 Network Port
Hard Disk
8GB
CPU
8 Core 64-bit Processor
LCD Screen
5.5” Touch-screen and Resolution is 1920x1080
USB Port
1xType-c Port for USB Expansion
Inputs/Outputs
16 x 32 Channels (Customize for 64x128)
Output Port
1 x HDMI
RAM
12GB
Inputs/Outputs
16 x 32 Channels (Customize for 64x128)
USB Port
1xType-c Port for USB Expansion
LCD Screen
5.5” Touch-screen and Resolution is 1920x1080
CPU
8 Core 64-bit Processor
Hard Disk
8GB
Network Ports
Dual 10G Optical Ports or Electrical Port and 1G RJ45 Network Port
Chassis
Half of 2U
Operation System
Linux
