Kiloview CV180 SDI to HDMI and VGA/AV/CVBS Converter
Kiloview CV180 SDI to HDMI and VGA/AV/CVBS Converter
Free Shipping
Kiloview CV180 SDI to HDMI and VGA/AV/CVBS Converter
Powerful SDI/BNC to HDMI Video Converter

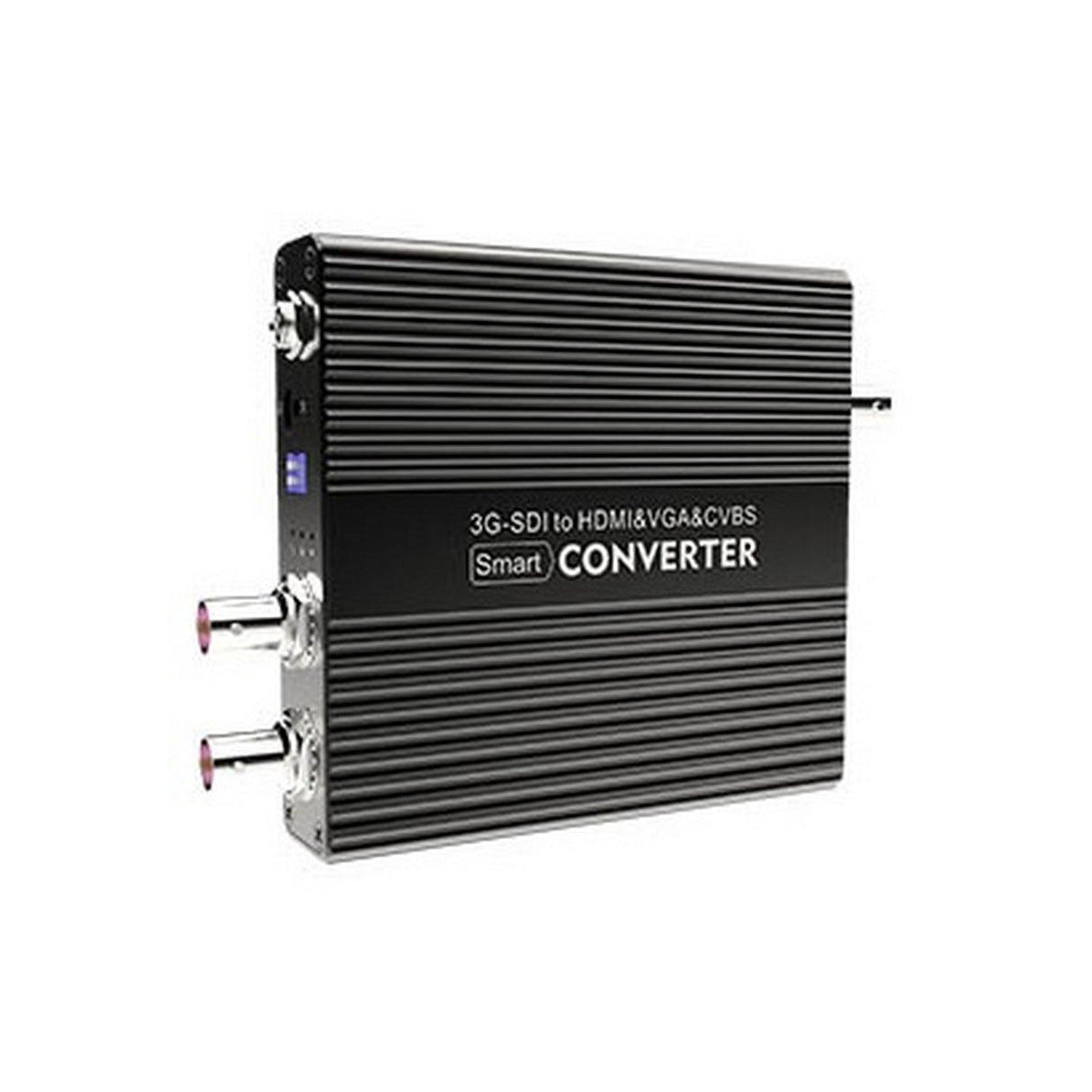

Kiloview CV180 SDI multi-function converter can convert SDI-based coaxial signals into HDMI, VGA and AV (CVBS) signal output, and has both frame rate/resolution conversion, color adjustment, image enlargement/reduction and other editing management functions. It supports one input and two output modes as well.
Video Conversion & Enhancement
CV180 highlights professional color adjustment, 3D noise reduction, interlace/ progressive video conversion, video scaling up/down conversion and frame rate conversion etc., which can guarantee the professional image conversion quality.
Analog Audio
Independent analog audio output is available for Kiloview CV180, which is convenient for your video production.
Applications
Our CV180 are suitable for all scenarios that need to convert SDI signals to SDI, HDMI, VGA, or AV (CVBS) signal output, such as broadcast and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, Video conferencing, multimedia advertising and video security monitoring and other fields.
Key Features
- SD/HD/3G SDI input together with built-in SDI clock recovery circuit and line equalizer, it can recover attenuation and distortion SDI signal after long-distance transmission;
- HDMI/VGA/AV(CVBS) output simultaneously supported with self-defined resolution; independent audio output available (either two of them can output at the same time);
- HDMI/ VGA DDC function supported, it can self-adaptively output the best mode of HDMI/ VGA
- OSD menu operation interface supported
- High Quality10bit YUV 4:2:2
- Bitrate Exchange
- Interlace/Progressive Conversion
- scaling up/down
- Undistorted Color
- 3D Noise Reduction
- Color Adjustment
- High-end Chip
- Dual Output
- Self-defined Resolution
- Real-time Signal Notice
- SDK/API Available
- PC Configurable
- 7*24h Running
- Color Adjustment
Technical Specifications
Input
1*BNC SDI (SD/HD/3G SDI)
Output
1*SDI, 1*HDMI, 1*BNC AV(CVBS), 1*VGA (Either two signals output simultaneously)
Input format
525i 59.94ļ¼625i 50
720p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
Loop out
1*BNC SDI
SDI transmitting distance
Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 120m
Note: different cables have different transmission distances.
Framerate/resolution conversion
Support
Audio de-embedding
Support
Management
Remote control/PC connection with USB
Power supply
12V, 1A
Consumption
4w
Operation temperature
-20~60 Degrees C
Dimension
120*100*26mm (4.72ā *3.94ā *1.02ā)
Weight
315g (11.1oz)
